Name: | Forged Steel Globe Valve | Media: | Oli,Gas,Water |
---|---|---|---|
Standard: | API602/BS5352/GOST/JIS/DIN/ISO | Pressure: | 150LB-800LB,900LB,1500LB,2500LB |
Power: | Manual,Pneumatic,Solenoid,Electrical Actuated | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
Size: | 1/4"-4",DN8-DN100 | ||
High Light: | api 602 Forged Steel Globe Valve Pn 100,Pn 100 Rising Stem Globe Valve Bolted Bonnet,api 602 globe valve |

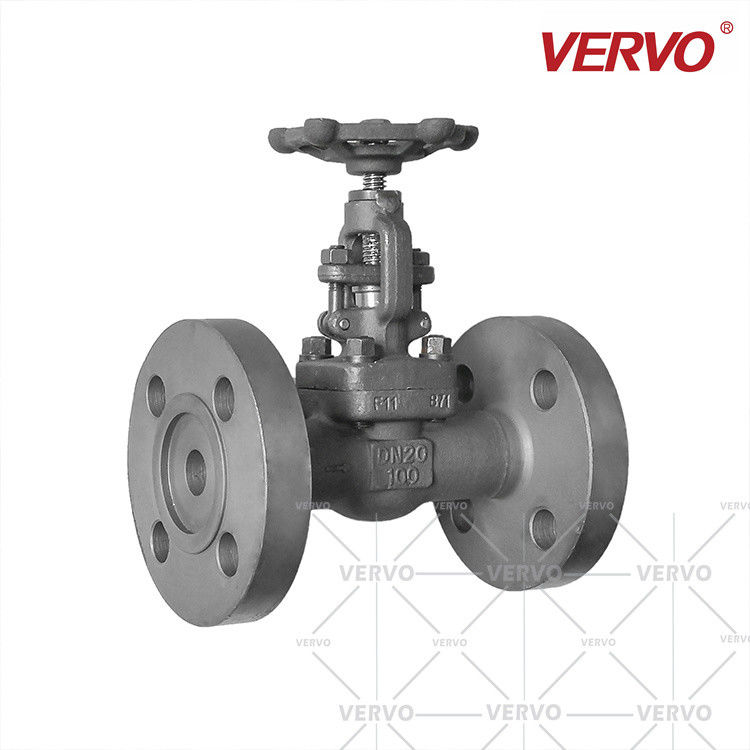

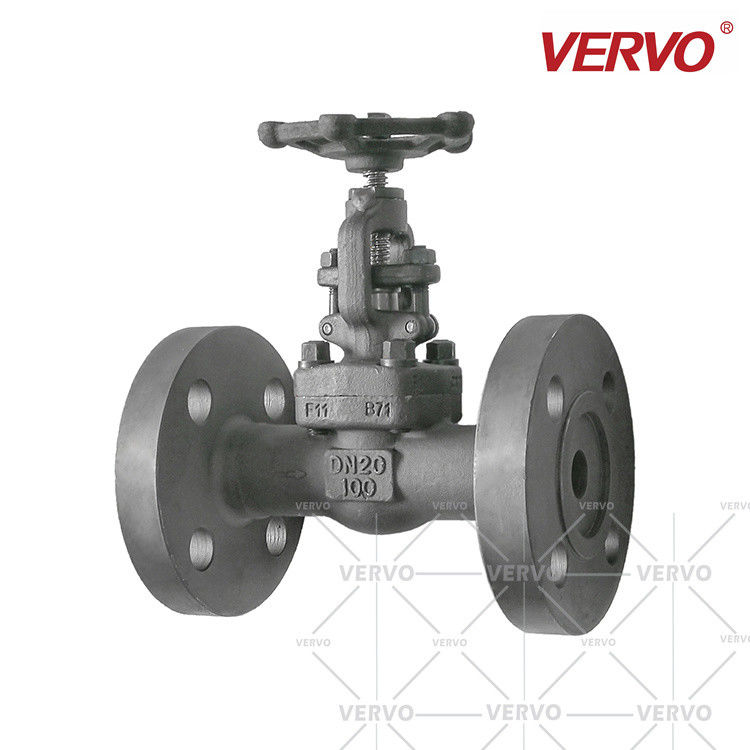

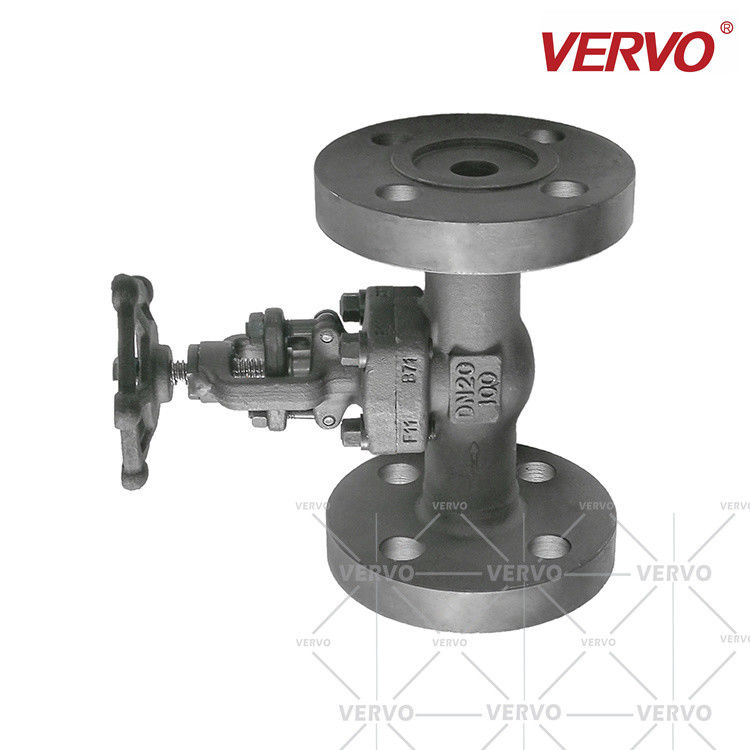

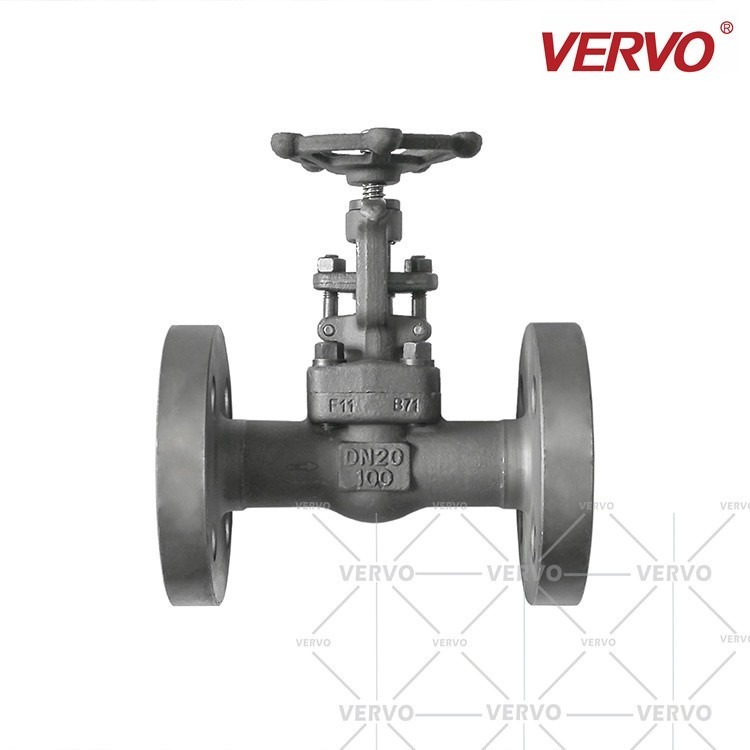

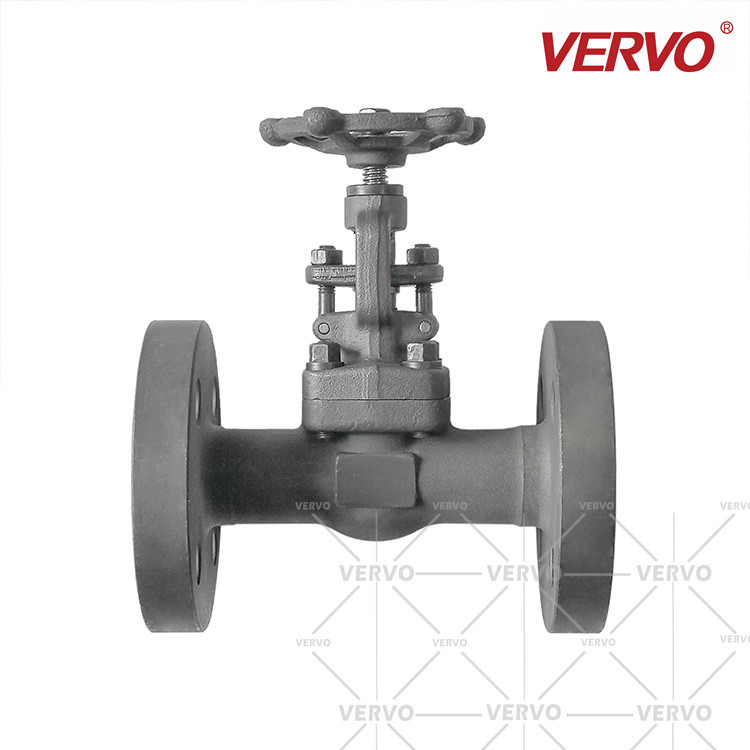

Globe Valve 0.75 Inch Forged Steel Globe Valve Pn100 Rising Stem Globe Valve 0.75 Inch Globe Valve Bolted Bonnet
1/2″-2″
150lb-2500lb
Basic Design: API 602, ANSI B16.34
Test & Inspection: API 598
Design Features
Specifications
Optional Features
CL150~CL600 | Bolt Bonnet (BB), Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ) |
|||||||
Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
Face To Face | CL150 | L (RF) |
108 | 117 | 127 | 140 | 165 | 203 |
CL300 | 152 | 178 | 203 | 216 | 229 | 267 | ||
CL600 | 165 | 190 | 216 | 229 | 241 | 292 | ||
Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | |
Height | H | 170 | 172 | 207 | 228 | 270 | 320 | |
Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
Weight (Kg) |
CL150 | B.B | 4.1 | 4.8 | 7.1 | 10 | 12.7 | 21 |
CL300 | 4.8 | 6.7 | 10 | 14.5 | 18.3 | 25.2 | ||
CL600 | 5.4 | 7.4 | 11 | 16 | 19.2 | 28.8 | ||
CL900~CL1500 | Bolt Bonnet (BB), Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ) |
|||||||
Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
Face To Face | CL900 | L (RF) | 216 | 229 | 254 | 279 | 305 | 368 |
CL1500 | ||||||||
Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | |
Height | H | 170 | 172 | 207 | 228 | 270 | 320 | |
Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
Weight (Kg) | CL900 | B.B | 10.1 | 13 | 18.3 | 26 | 32.8 | 54 |
CL1500 |
