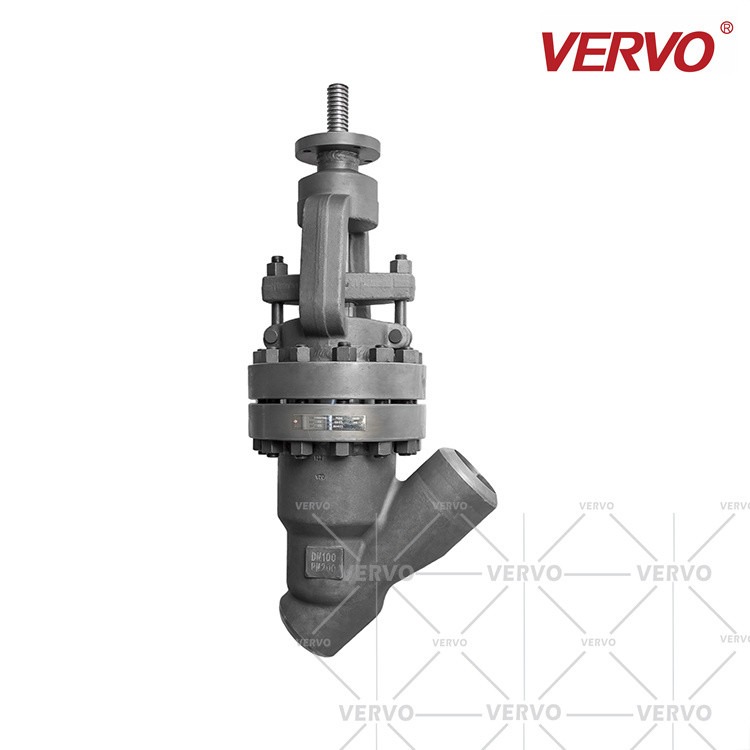

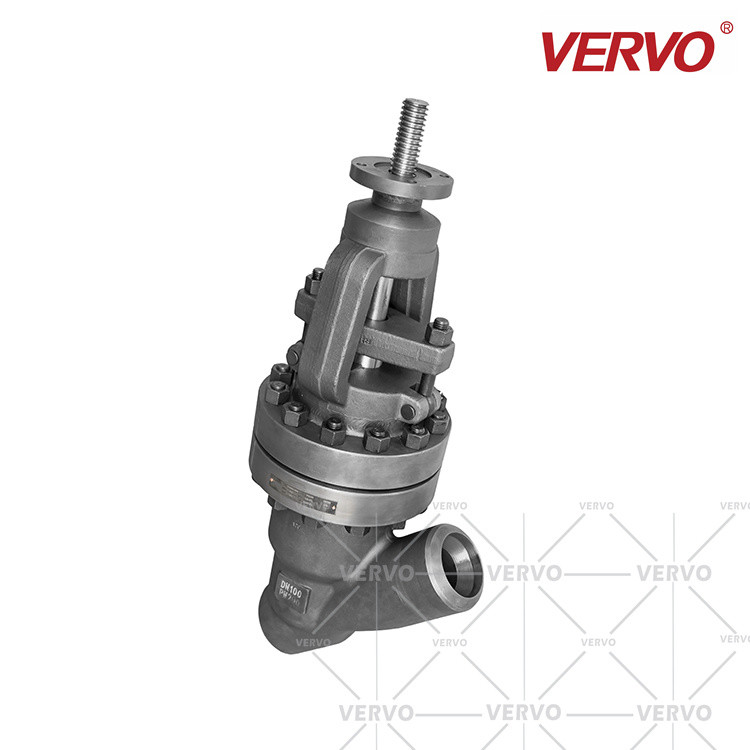

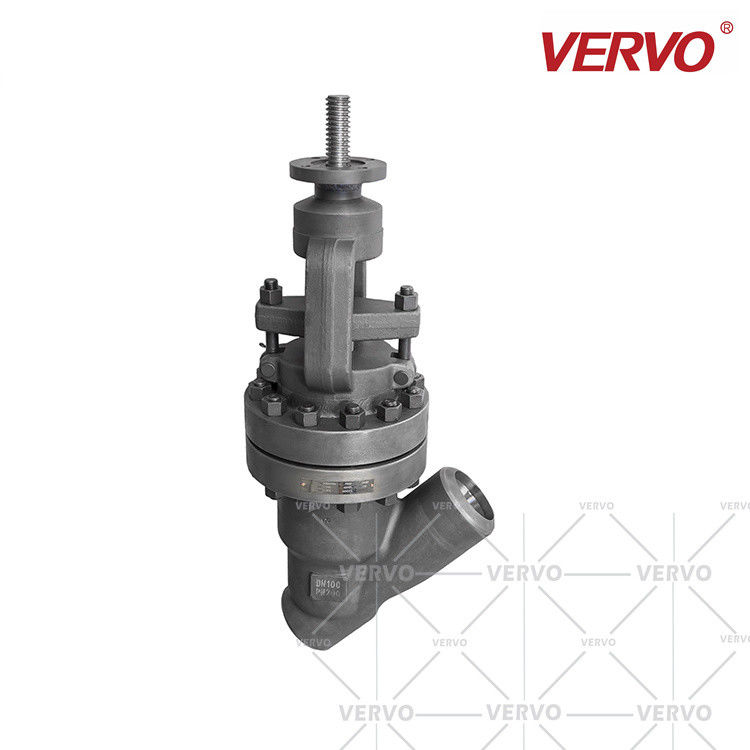

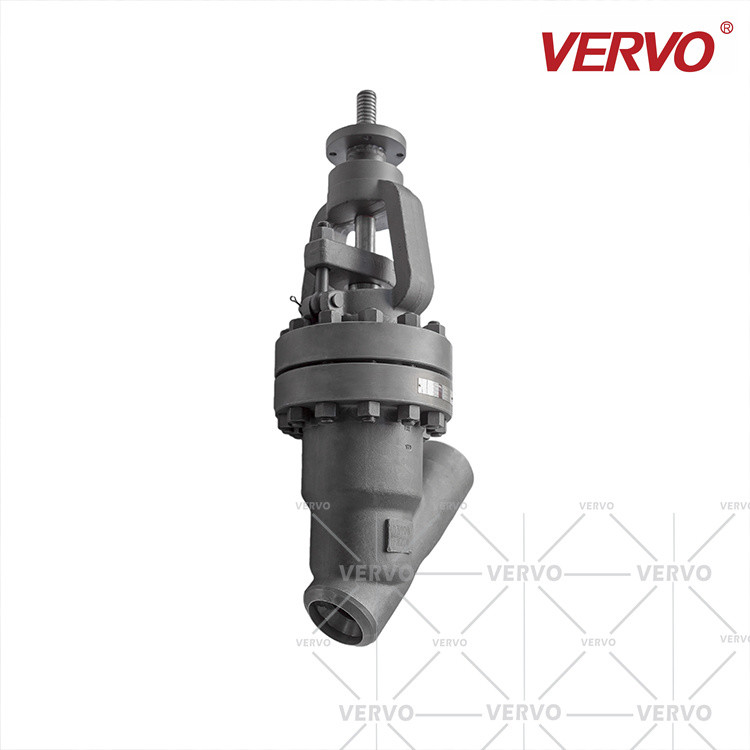

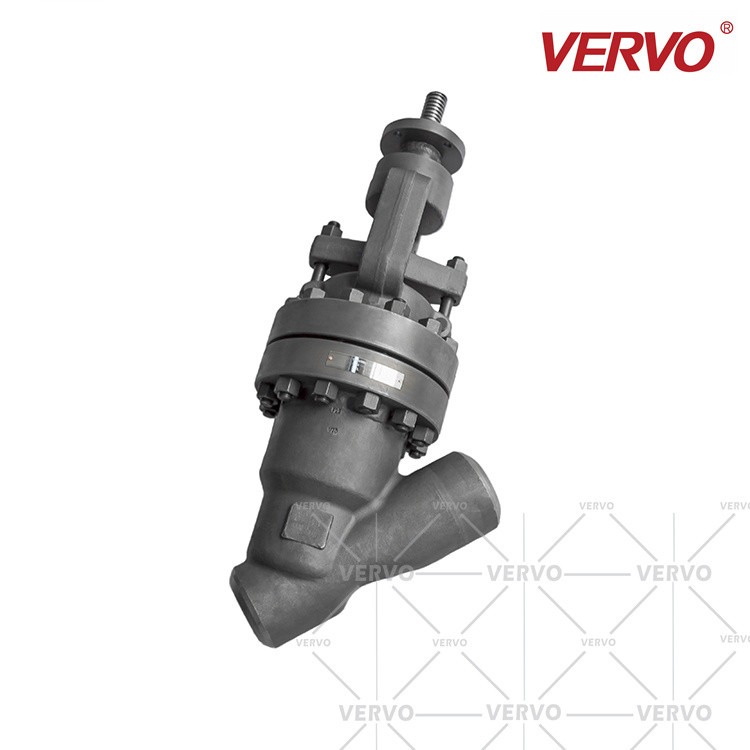

1 1/2 Inch Bolted Bonnet Globe Valve Astm A105 Dn50 PN420 Y Pattern

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: J61Y-PN420-DN40
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Forged Steel Bolted Bonnet Y Type Globe Valve Media: Oli,Gas,Water
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100
High Light:

Bolted Bonnet globe valve astm a105

,

Bolted Bonnet globe valve Dn50

,

Y Pattern globe valve a105n

Bolted Bonnet High Pressure 1 1/2 Inch Globe Valve Y Globe Valve A105 1.5 Inch Dn50 PN420 Y Pattern Globe Valve





Model number YJ61Y-PN420-DN40
Item Forged steel Y pattern Globe Valve 1 1/2inch
Certification CE,ISO9001,ISO14001,ISO18001,TS,API
Connection form Butt Welding
Body material forged steel A105N
Seal material Gasket
Feature Easy disassembly and assembly



GLOBE “Y”-PATTERN VALVE DESCRIPTION

1 1/2 Inch Bolted Bonnet Globe Valve Astm A105 Dn50 PN420 Y Pattern 0

VERVO Globe valves are used for flow regulation, frequent operation, increased flow resistance or for positive shutoff when closed. Globe valves are closing-down valves in which the closure member is moved squarely on and off the seat. By this mode of disc travel, the seat opening varies in direct proportion to the travel of the disc. This proportional relationship between valve opening and disc travel is ideally suited for duties involving regulation of flow rate. Globe valves can also be used for on-off duty, the seating load can be positively controlled with high sealing capacity. The change in direction of fluid flow through these valves produces increased resistance and pressure drop. The oblique pattern globevalve body is designed to reduce the flow resistance of the valve to a minimum. This valve combines low flow resistance for on-off duty with the robustness of globe-valve seatings. Globe valves are used in many industrial applications including the oil and gas industry, pharmaceutical, manufacturing, automotive, and marine. Globe valves are also recommended for services requiring frequent operation and positive shutoff.



PRODUCT RANGE

1 1/2 Inch Bolted Bonnet Globe Valve Astm A105 Dn50 PN420 Y Pattern 1

Sizes NPS 1/2 to NPS 4

Class 800 to Class 2500



MATERIALS

1 1/2 Inch Bolted Bonnet Globe Valve Astm A105 Dn50 PN420 Y Pattern 1

Available in Forged (A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy



DESIGN FEATURES

1 1/2 Inch Bolted Bonnet Globe Valve Astm A105 Dn50 PN420 Y Pattern 1

SW, NPT, RF, or BW

Outside Screw & Yoke (OS&Y)

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet



DESIGN STANDARD

1 1/2 Inch Bolted Bonnet Globe Valve Astm A105 Dn50 PN420 Y Pattern 1

Design & manufacture according to API 602, ASME B16.34

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

                          1 1/2 Inch Bolted Bonnet Globe Valve Astm A105 Dn50 PN420 Y Pattern 5

                                     1 1/2 Inch Bolted Bonnet Globe Valve Astm A105 Dn50 PN420 Y Pattern 6

CL800 Bolt Bonnet (BB)/ Welding Bonnet (WB),
Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 100 100 100 120 140 140 172
Handwheel Diameter W 100 125 160 160 160 180 200
Height H 180 180 188 280 280 295 350
Flow Port Diameter d 10 13.5 17 22 28 34 42
Weight (Kg) B.B 3.8 4.6 4.6 9.3 14 14 19.6
W.B 3.7 4.5 4.5 9 13.5 13.5 19.1
1 1/2 Inch Bolted Bonnet Globe Valve Astm A105 Dn50 PN420 Y Pattern 7
CL900~CL1500 Bolt Bonnet (BB)/ Welding Bonnet (WB),
Full Port (FP), Outside Screw and Yoke (OS&Y),
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 100 100 120 140 140 172 220
Handwheel Diameter W 125 160 160 160 180 200 200
Height H 180 188 280 280 295 350 365
Flow Port Diameter d 10 13.5 17 22 28 34 42
Weight (Kg) B.B 4.6 4.6 9.3 14 14 19.6 38.6
W.B 4.5 4.5 9 13.5 13.5 19.1 38
1 1/2 Inch Bolted Bonnet Globe Valve Astm A105 Dn50 PN420 Y Pattern 8
CL2500 Welding Bonnet (WB),
Full Port (FP), Outside Screw and Yoke (OS&Y),
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size
(NPS)
F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L   120 140 140 172 220 232
Handwheel Diameter W   160 160 180 200 200 250
Height H   280 280 295 350 365 400
Flow Port Diameter d   17 22 28 34 42 55
Weight
(Kg)
W.B   9.3 14 14 19.6 38.6 53.5

                                                        1 1/2 Inch Bolted Bonnet Globe Valve Astm A105 Dn50 PN420 Y Pattern 9



CL900~CL2500 Pressure Seal Bonnet (PSB),
Full Port (FP), OutSide Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS)   F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL900
CL1500
L 140 140 140 140 232 232 232
CL2500   140 140 140 140 232 232 272
Handwheel Diameter CL900
CL1500
W 160 160 160 180 200 200 250
CL2500
Height CL900
CL1500
H 280 280 280 295 350 365 400
CL2500   280 280 280 295 350 365 420
Flow Port Diameter d 13 17 22 28 34 42 55
Weight (Kg) CL900
CL1500
PSB 12.5 12.5 12.5 12.5 28 26.5 36
CL2500   12.5 12.5 12.5 12.5 28 26.5 42

Keywords of Bolted Bonnet High Pressure 1 1/2 Inch Globe Valve Y Globe Valve A105 1.5 Inch Dn50 PN420 Y Pattern Globe Valve

1 1/2 Inch Bolted Bonnet Globe Valve Astm A105 Dn50 PN420 Y Pattern 10

BB High Pressure Y Type Globe Valve, Bolted Bonnet Y Type Globe Valve, "Y" Pattern BB Globe Valve, 1 1/2 Inch Pressure Seal Globe Valve, PN420 Pressure Seal Globe Valve ,Y Pattern Globe Valve, ASME16.34 Globe Valve,DN40 Y Type Globe Valve
