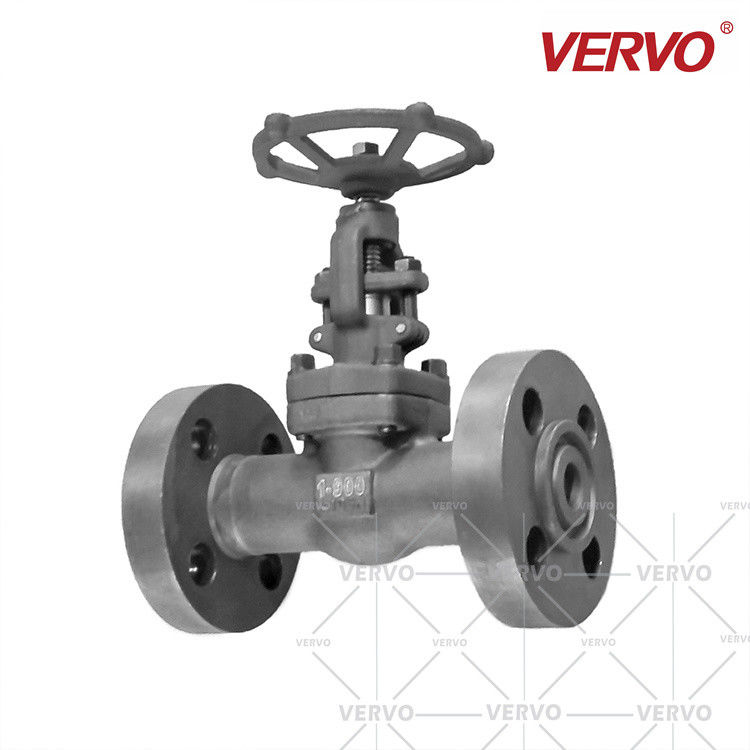

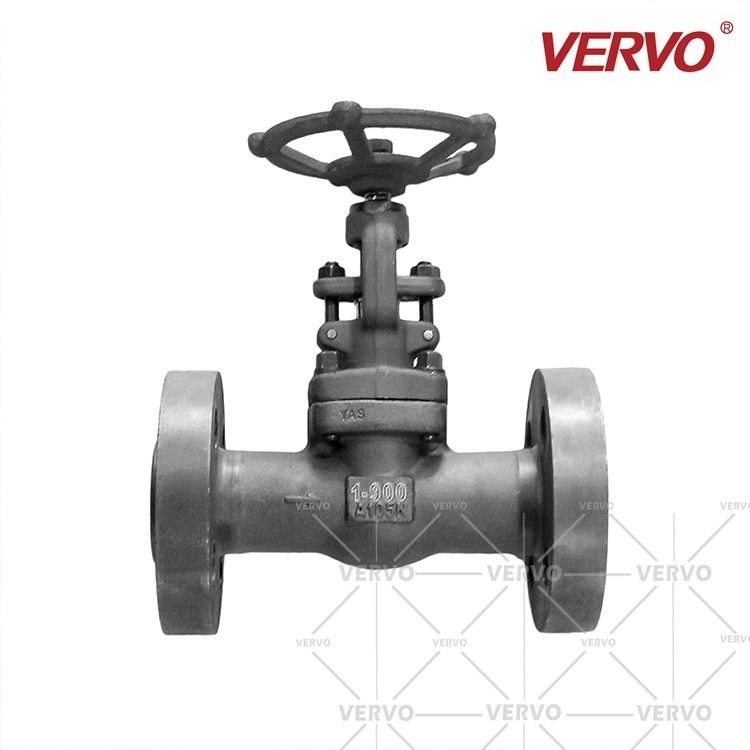

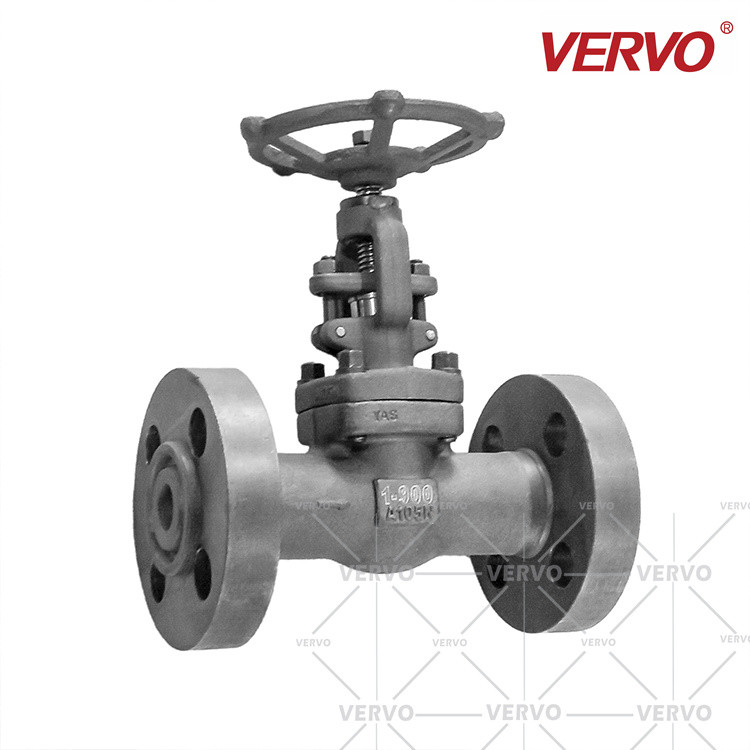

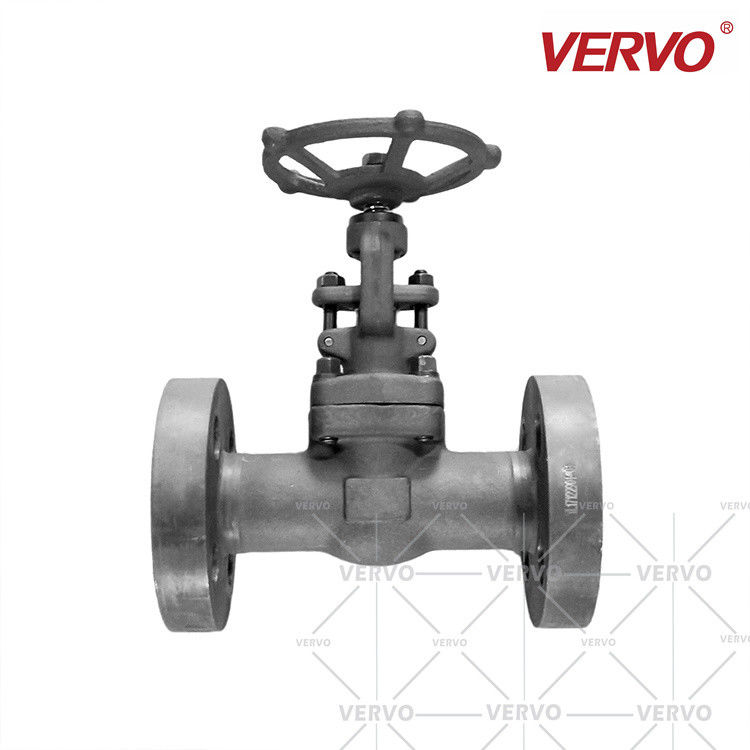

Control Forged Steel 1" Globe Valve Forged Steel Globe Valve Class 300 Needle Disc Globe Valve 1 Inch Industrial Valve

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: J41Y-300LB-DN25
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Forged Steel Carbon Steel Globe Valve Media: Oli,Gas,Water
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100

Control Forged Steel 1" Globe Valve Forged Steel Globe Valve Class 300 Needle Disc Globe Valve 1 Inch Industrial Valve



VERVO forged steel globe valves are offered in straight pattern, Y-pattern, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO forged steel globe valves are manufactured according to API 602 Design.



PRODUCT RANGE

Control Forged Steel 1" Globe Valve Forged Steel Globe Valve Class 300 Needle Disc Globe Valve 1 Inch Industrial Valve 0

Sizes NPS 1/2 to NPS 4

Class 800 to Class 2500



MATERIALS

Control Forged Steel 1" Globe Valve Forged Steel Globe Valve Class 300 Needle Disc Globe Valve 1 Inch Industrial Valve 0

Available in Forged (A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy



DESIGN FEATURES

Control Forged Steel 1" Globe Valve Forged Steel Globe Valve Class 300 Needle Disc Globe Valve 1 Inch Industrial Valve 0

SW, NPT, RF, or BW

Outside Screw & Yoke (OS&Y)

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet



DESIGN STANDARD

Control Forged Steel 1" Globe Valve Forged Steel Globe Valve Class 300 Needle Disc Globe Valve 1 Inch Industrial Valve 0

Design & manufacture according to API 602, ASME B16.34

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624



Model number J41Y-300LB-DN25
Item Globe Valve
Certification ISO9001,ISO14001,ISO18001,TS,CE,API
Connection form Flanged
Body material Forged Steel
Seal material Gasket
Feature Easy disassembly and assembly



Control Forged Steel 1" Globe Valve Forged Steel Globe Valve Class 300 Needle Disc Globe Valve 1 Inch Industrial Valve 4
CL150~CL600 Bolt Bonnet (BB),
Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ)
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL150 L
(RF)
108 117 127 140 165 203
CL300 152 178 203 216 229 267
CL600 165 190 216 229 241 292
Handwheel Diameter W 100 100 125 160 160 180
Height H 170 172 207 228 270 320
Flow Port Diameter d 10.5 13.5 17 22 28 34
Weight
(Kg)
CL150 B.B 4.1 4.8 7.1 10 12.7 21
CL300 4.8 6.7 10 14.5 18.3 25.2
CL600 5.4 7.4 11 16 19.2 28.8
Control Forged Steel 1" Globe Valve Forged Steel Globe Valve Class 300 Needle Disc Globe Valve 1 Inch Industrial Valve 5
CL900~CL1500 Bolt Bonnet (BB),
Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ)
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL900 L (RF) 216 229 254 279 305 368
CL1500
Handwheel Diameter W 100 100 125 160 160 180
Height H 170 172 207 228 270 320
Flow Port Diameter d 10.5 13.5 17 22 28 34
Weight (Kg) CL900 B.B 10.1 13 18.3 26 32.8 54
CL1500



The dimension and weights are for reference only and subject to change without notice.
1. For more size or dimensional information, please contact our sales representative.

Control Forged Steel 1" Globe Valve Forged Steel Globe Valve Class 300 Needle Disc Globe Valve 1 Inch Industrial Valve 6
