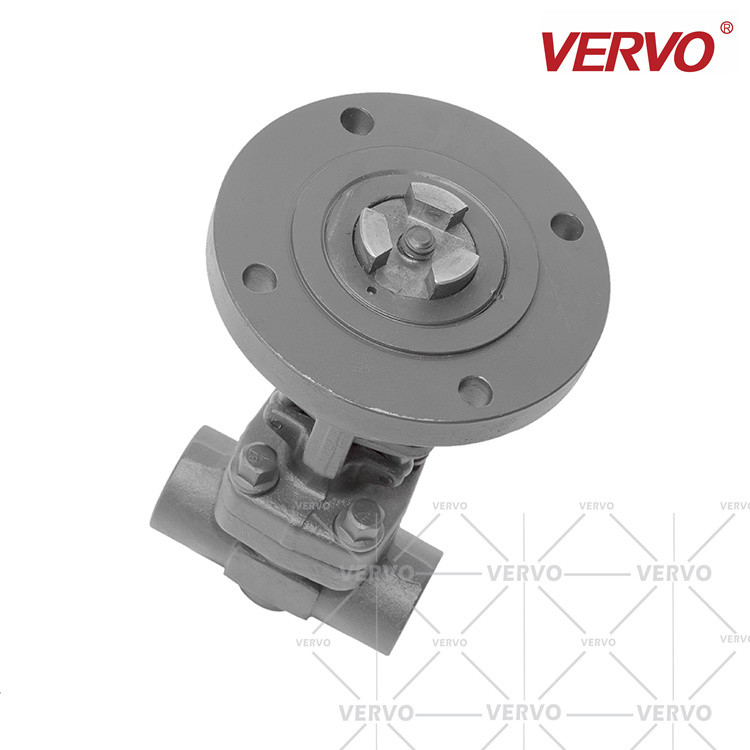

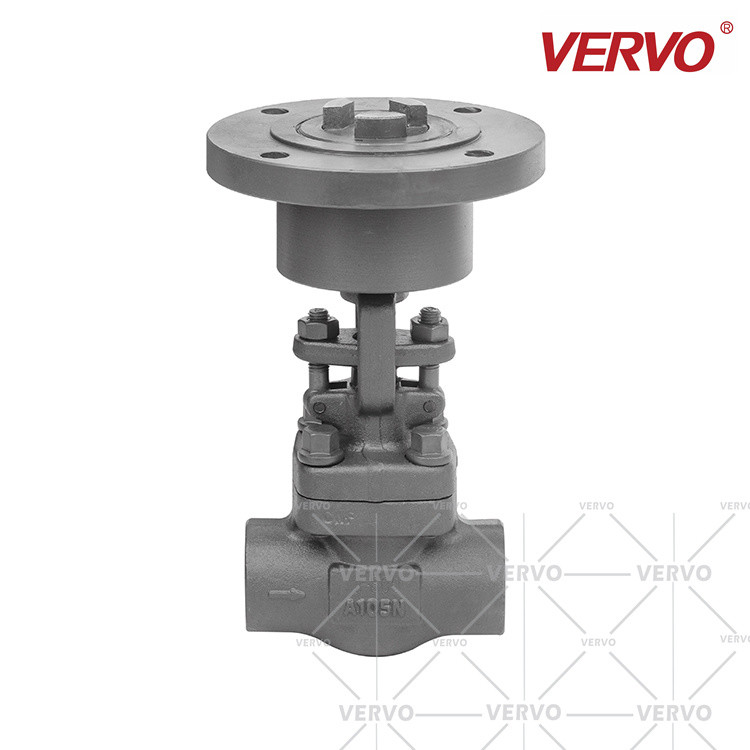

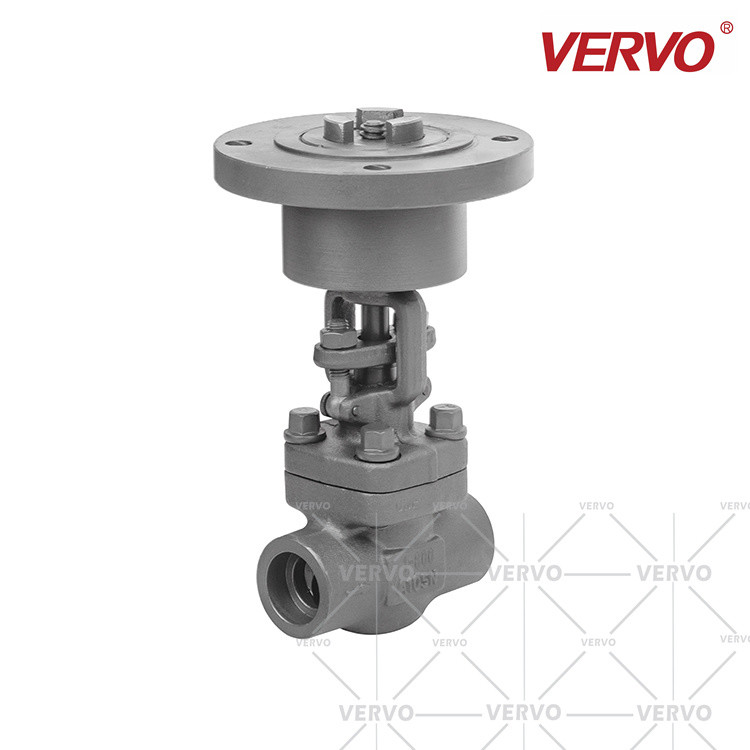

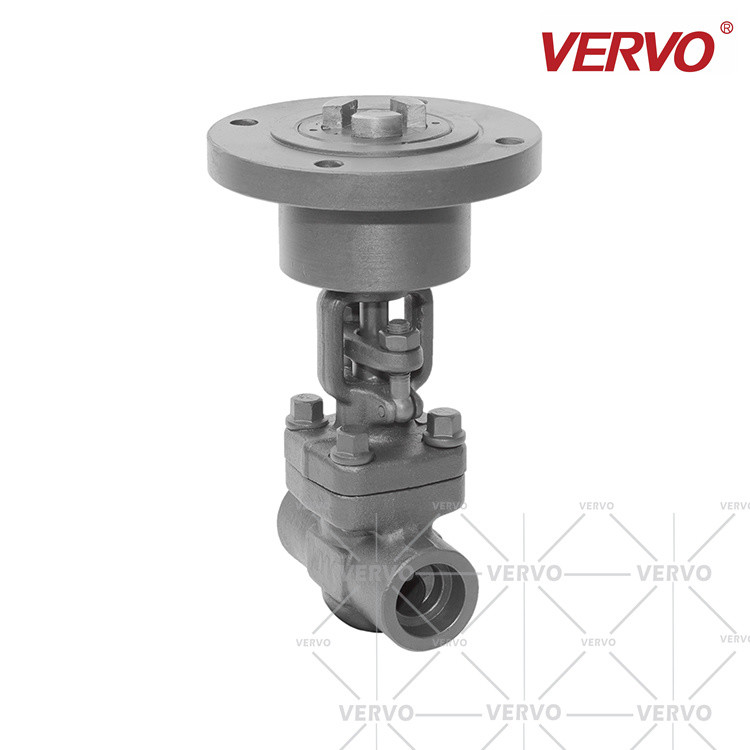

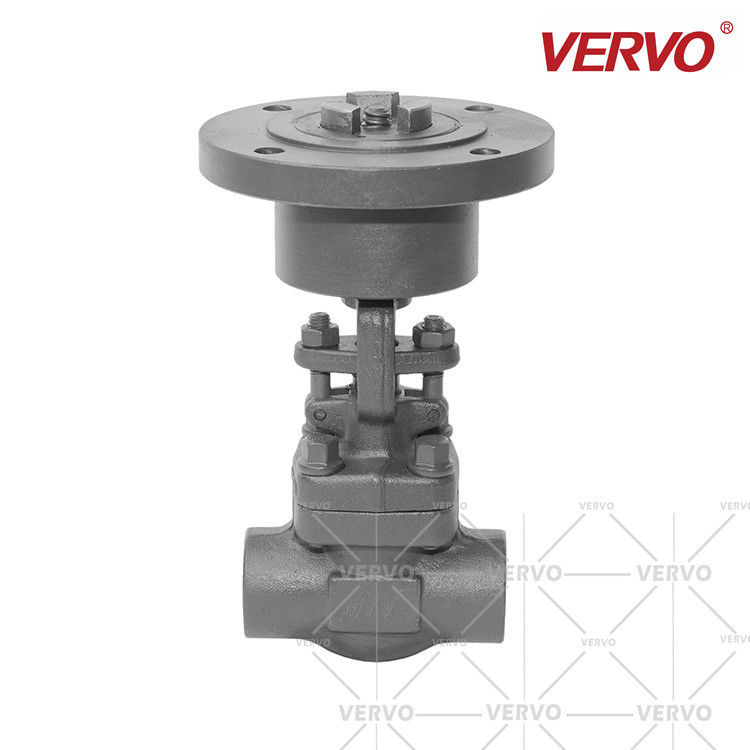

Bare Stem Electric Operated Globe Valve 4 Inch 3 Inch 2 Inch 1 Inch Class 2500 API602

Bare Stem Globe Valve 800LB Globe Valve Electric Operated Globe Valve 1'' Control Globe Valve API602 ISO5210 Bare Stem

VERVO Forged Steel Globe Valves are compact, sturdy and ideal for high pressure and high temperature applications. These valves are outside screw and yoke type (OS & Y) with rising stem and rising handwheel. These valves shall be bolted bonnet or welded bonnet type with full or standard bore options.

PRODUCT RANGE

Sizes NPS 1/2 to NPS 4

Class 800 to Class 2500

MATERIALS

Available in Forged (A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy

DESIGN FEATURES

SW, NPT, RF, or BW

Outside Screw & Yoke (OS&Y)

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet

DESIGN STANDARD

Design & manufacture according to API 602, ASME B16.34

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

CL800	Bolt Bonnet (BB)/ Welding Bonnet(WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS)	R.P	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2
	F.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L	79	92	111	120	152	172	220
Handwheel Diameter	W	100	100	125	160	160	180	200
Height	H	170	172	207	228	270	320	356
Flow Port Diameter	d	10.5	13.5	17	22	28	34	44
Weight (Kg)	B.B	2.2	2.4	4.1	5.7	7.6	12.2	21
	W.B	1.9	2.1	3.9	5.5	7.4	11.6	19.7
CL900~CL1500	Bolt Bonnet (BB)/ Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS)	R.P	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2
	F.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L	92	111	120	152	172	220
Handwheel Diameter	W	100	125	160	160	180	200
Height	H	172	207	228	270	320	387
Flow Port Diameter	d	10.5	13.5	17	22	28	34
Weight (Kg)	B.B	4.1	5.6	6.7	7.6	12.2	21
	W.B	3.8	5.4	6.5	7.4	12	20.2
CL2500	Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS)	R.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L		120	120	152	172	220	220
Handwheel Diameter	W		160	160	160	180	200	200
Height	H		228	228	270	320	387	396
Flow Port Diameter	d		10.5	13.5	17	22	28	34
Weight (Kg)	W.B		6.7	6.5	7.6	12.2	21	20.7
