| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | H44W-DN50-PN50 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | ASME B16.34 | Body Material:: | CF8M |
|---|---|---|---|
| Nominal Diameter: | 2Inch/DN50/50MM | Pressure: | PN50 |
| End Connection.: | SW | Face To Face: | Factory STD |
| Test And Inspection: | API 598 | ||
| High Light: | Cf8m forged steel swing check valve,forged steel swing check valve Dn50,asme check valve standard |
||

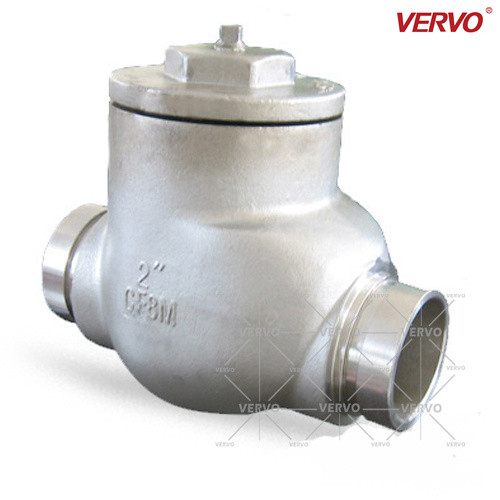

50mm Cf8m Casting Steel Swing Check Valve Dn50 Pn50 Asme 16.34 Sw Casting Steel Check Valve 2 Inch Swing Check Valve
· The opening and closing parts of the check valve are automatically opened or closed by the flow and force of the medium to prevent the medium from flowing back.
· The check valve is a kind of automatic valve, its main function is to prevent the back flow of the medium, prevent the pump and the drive motor from reversing, and the discharge of the container medium.
·Check valves can also be used to supply pipelines for auxiliary systems where the pressure may rise above the system pressure.
| Product Name | SW swing check valve |
| Model | H44W-PN50 2" |
| Certification | ISO9001,CE, API6D |
| Brand | VERVO |
| Customized | OEM/ODM/OBM |
| Pressure | PN50 |
| Temperature range | Minus 29 degrees to 150 degrees |
| Size | DN50/50MM |
| Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
2 Inch PN50 NPT CF8M Stainless Steel Swing Check Valve, Low Pressure SW End Swing Type Non-Return Swing Check Valve,2 Inch Check Valve,Casting Steel Check Valve,PN50 Check Valve
