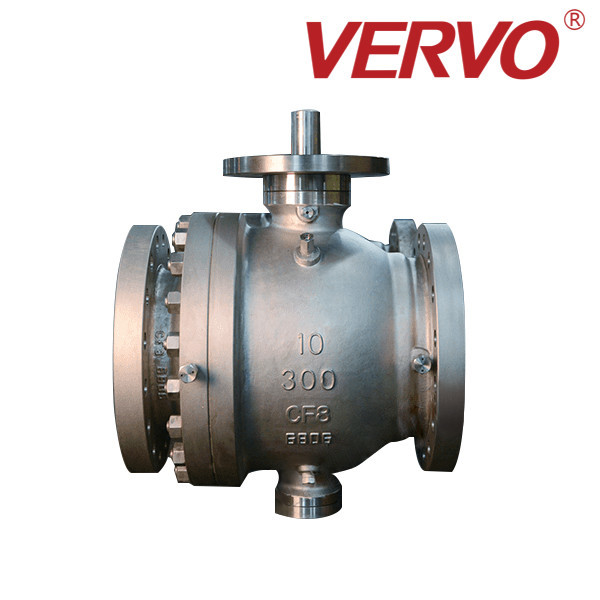

PI Standard 6D Trunnion Ball Valve Pneumatic Duplex Steel Flanged

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: Q41F-PN150
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
High Light:

Flanged Trunnion Ball Valve

,

pneumatic Trunnion Ball Valve

,

Duplex Steel Trunnion Ball Valve

Product Description

Trunnion Ball Valve are manufactured to the latest edition of API Standard 6D and tested to API Standard 598.



Applicable Standards:

– Ball Valve design according to BS5351, API6D, API608, ASME B16.34

– Face to Face ASME B16.10, API6D

– End Flanged ASME B16.5/ASME B16.47

– Butt Welded ends ASME B16.25

– Fire Safety API607, API6FA

– Inspection and test API598, API6D



Rating:

– ASME CL150, CL300, CL600



Temperature Range:

– -196°C~650°C



Size Range:

– 2″~48″



End Connection:

– Flanged



Body Material:

– Carbon steel, stainless steel, alloy steel, duplex steel



Operation:

– lever, gear, electric, pneumatic, hydraulic, gearbox

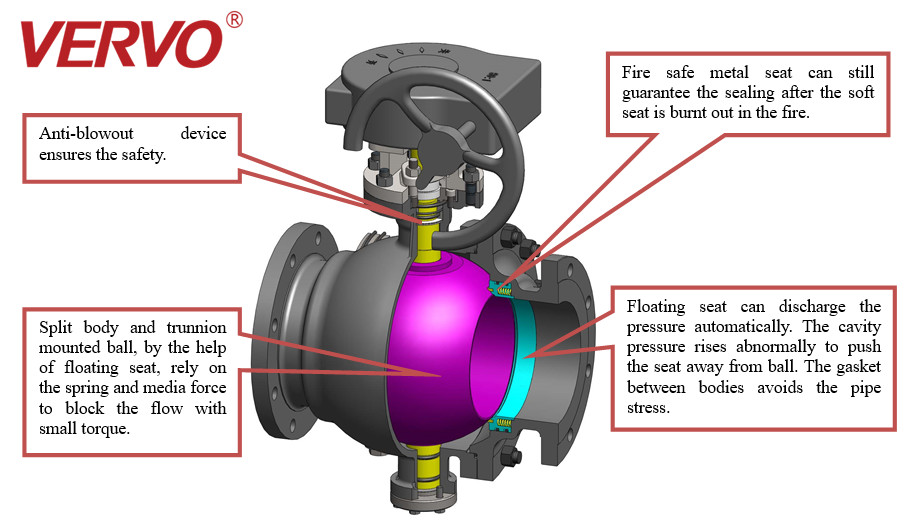

Design Description:

– Structure : 2 pieces or 3 pieces body

– High shut-off sealing mechanism and low torque operation

– Block and bleed function

– Self-cavity pressure relief

– Fire safe design

– Blow out proof stem construction

– Anti-static design

– Locking device (for lever handle operation)

– ISO 5211 actuator mounting

– Emergency grease injection (option)

– PN design can be available
