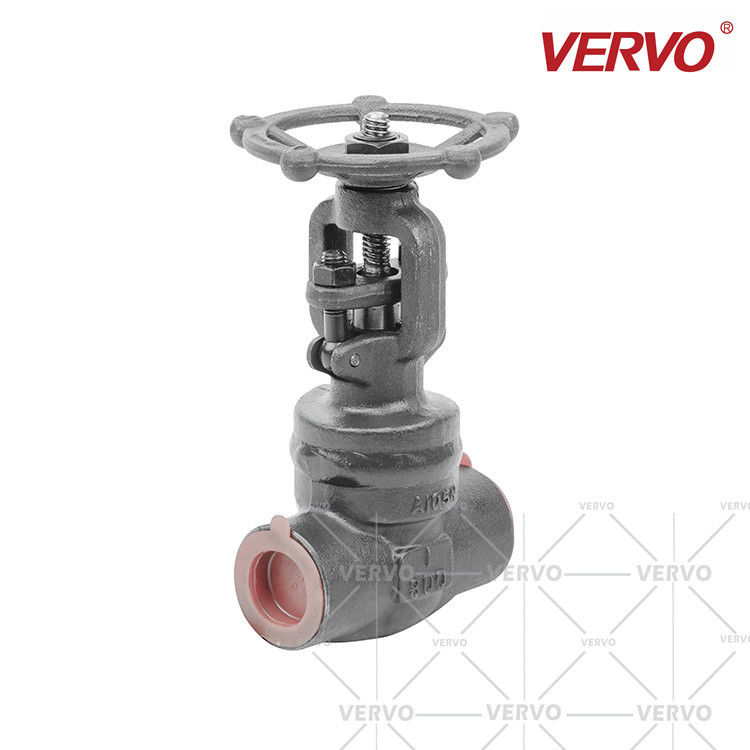

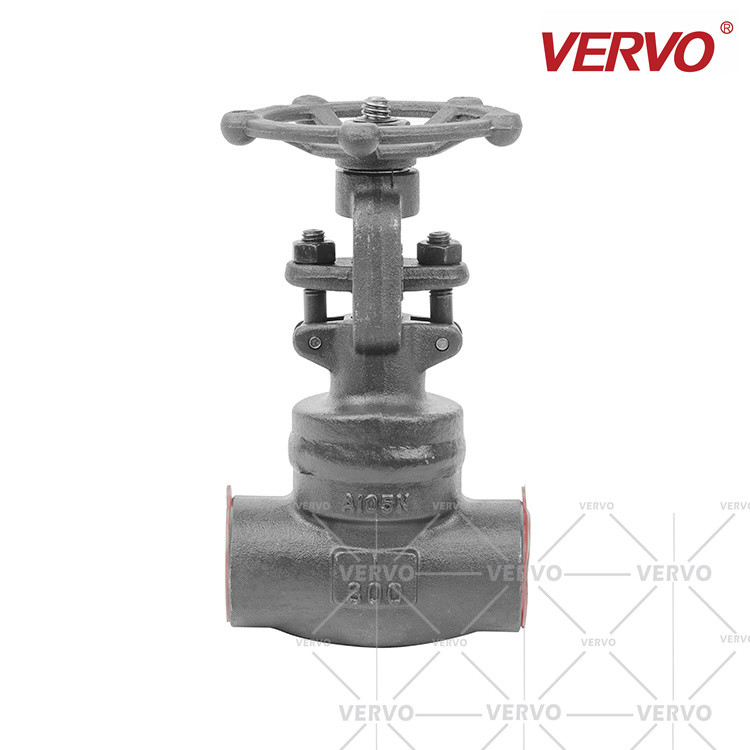

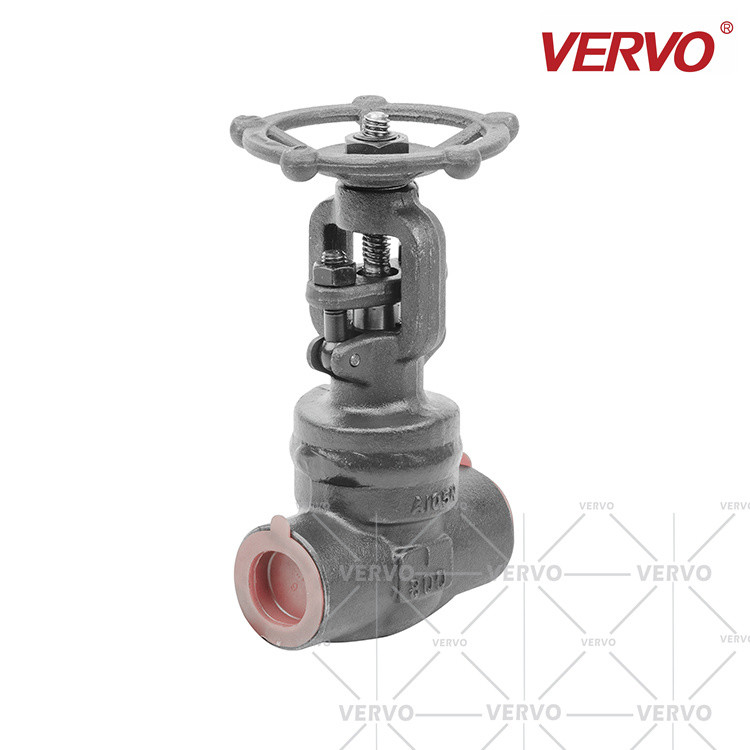

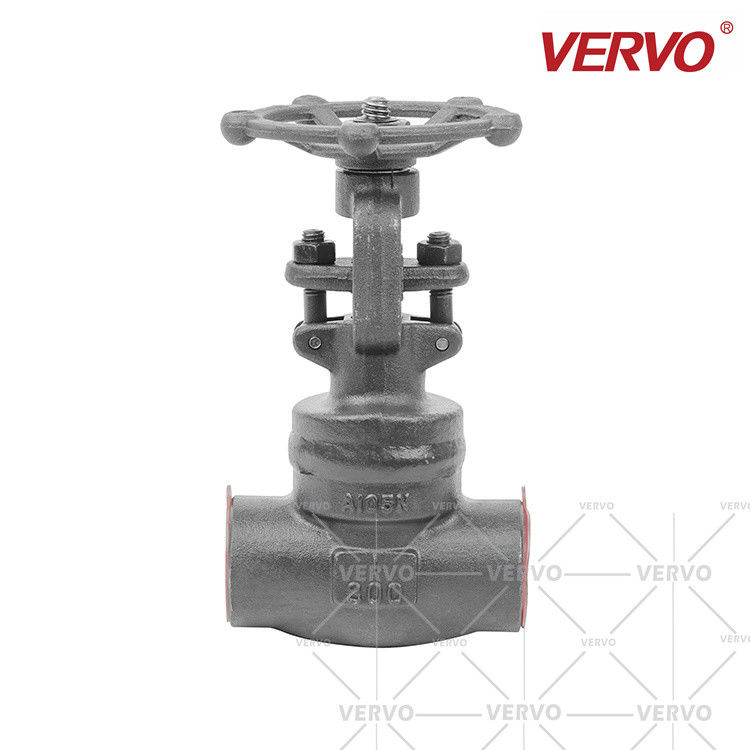

Industrial Gate Valve Forged Steel Gate Valve Carbon Steel A105N 1 Inch Dn25 800lb Weld Bonnet Gate Valve Solid Gate

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Z61Y-800LB-DN25
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Forged Steel Weld Bonnet Gate Valve Connection: Socket Weld,RF Flange,FNPT
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100

Industrial Gate Valve Forged Steel Gate Valve Carbon Steel A105N 1 Inch Dn25 800lb Weld Bonnet Gate Valve Solid Gate



Quick Detail

Industrial Gate Valve Forged Steel Gate Valve Carbon Steel A105N 1 Inch Dn25 800lb Weld Bonnet Gate Valve Solid Gate 0
Model number Z61Y-800LB-DN25
Item Forged Steel Weld Bonnet Gate Valve
Certification ISO9001,ISO14001,ISO18001,TS,CE,API
Connection form SOCKET WELD

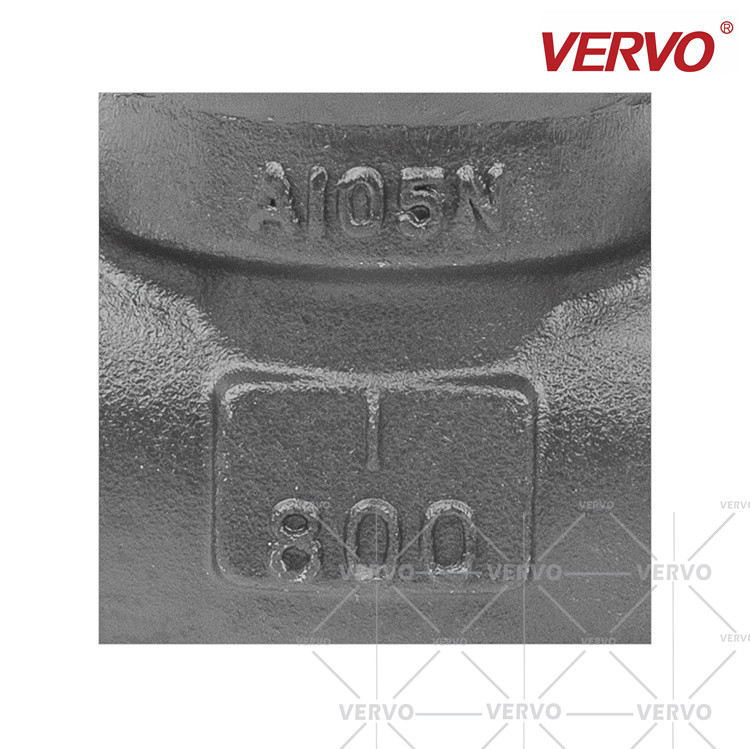

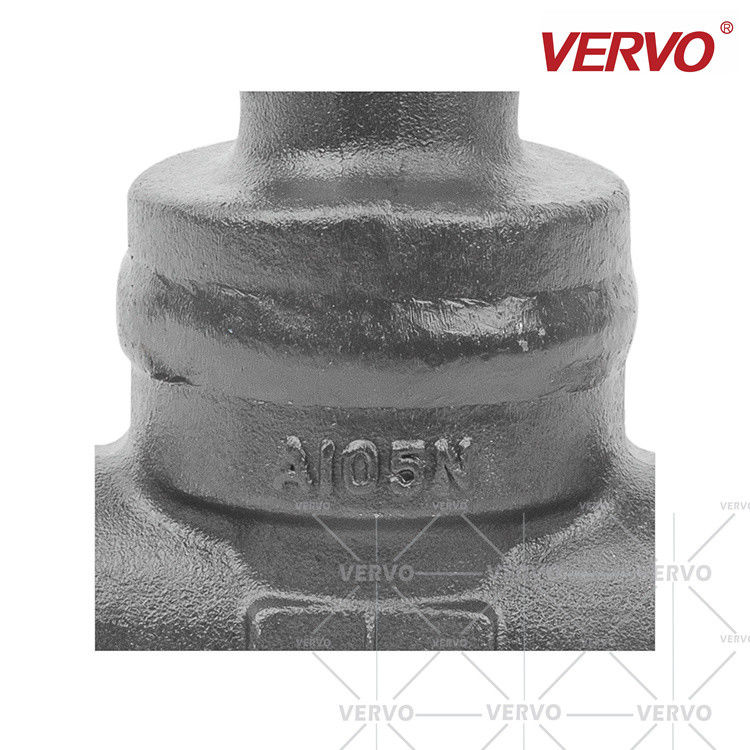

Body material Forged steel ASTM A105N
Purpose Sutiable for Various Industrise
Temperature -29-425




Forged Carbon Steel Gate Valve

Industrial Gate Valve Forged Steel Gate Valve Carbon Steel A105N 1 Inch Dn25 800lb Weld Bonnet Gate Valve Solid Gate 0

• Forged Carbon Steel Gate Valve
• Class 150/300/600/800/900/1500/2500/4500
• Reduced Port/Full Port
Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51,F53,F55,F60), Alloy 20, Monel, Inconel, Hastelloy,C95800
• ASME B16.34
• Maximum Pressure 1975 PSI
• Maximum Temperature 850
• Bolted Bonnet/Welded Bonnet/Pressure Seal Bonnet
• API 602 /BS5352/ API 598
• NACE MR0175
• Sizes 1/2” - 4”

Features and benefits

Industrial Gate Valve Forged Steel Gate Valve Carbon Steel A105N 1 Inch Dn25 800lb Weld Bonnet Gate Valve Solid Gate 2

TWO TYPES:

● This valve is available with an extended body or an integrally reinforcedextended body (IREB).
● Extended body gate valves have a welded or threaded connection and are used for tapping of pressure vessels and header lines for vents, drains or takeoff lines and instrumentation.
● Also available: extended body assemblies for vents, drains, and instrument root valves.



Industrial Gate Valve Forged Steel Gate Valve Carbon Steel A105N 1 Inch Dn25 800lb Weld Bonnet Gate Valve Solid Gate 3
CL800 Bolt Bonnet (BB)/Welding Bonnet (WB),
Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW),
Size (NPS) R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 79 92 111 120 120 140 178
Handwheel Diameter W 100 100 125 160 160 180 200
Height H 165 169 207 230 249 283 333
Flow Port Diameter d 10.3 13.5 18 23 29 36 45
Weight (Kg) B.B 2.2 2.4 4.1 5.5 7.5 10 19
W.B 2.1 2.3 4 5.5 7.3 9.5 18.5
Industrial Gate Valve Forged Steel Gate Valve Carbon Steel A105N 1 Inch Dn25 800lb Weld Bonnet Gate Valve Solid Gate 3
CL900~CL1500 Bolt Bonnet (BB)/ Welding Bonnet (WB),
Reduce Port (RP)/ Full Port(FP), Outside Screw and Yoke(OS&Y), Thread(NPT), Socket Weld(SW), Butt Weld(BW)
Size (NPS) R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
  F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 92 111 120 120 140 178
Handwheel Diameter W 100 125 160 160 180 200
Height H 169 207 230 249 283 333
Flow Port Diameter d 10.3 13.5 18 23 29 36
Weight (Kg) B.B 2.4 4.1 6.2 6.2 8.7 12.5
W.B 2.2 4 6 6 8.5 12
Industrial Gate Valve Forged Steel Gate Valve Carbon Steel A105N 1 Inch Dn25 800lb Weld Bonnet Gate Valve Solid Gate 5
CL2500 Welding Bonnet (WB),
Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y),
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size
(NPS)
R.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L   120 120 120 140 178 178
Handwheel Diameter W   160 160 160 180 200 200
Height H   230 235 249 283 333 333
Flow Port Diameter d   10.3 13.5 18 23 29 36
Weight
(Kg)
W.B   6.5 6.5 6.5 9 13 13



Keywords of Industrial Gate Valve Forged Steel Gate Valve Carbon Steel A105N 1 Inch Dn25 800lb Weld Bonnet Gate Valve Solid Gate

Industrial Gate Valve Forged Steel Gate Valve Carbon Steel A105N 1 Inch Dn25 800lb Weld Bonnet Gate Valve Solid Gate 6

Weld Bonnet Gate Valve,High Pressure Gate Valve,Forged Steel BB Gate Valve, Socket Weld End Gate Valve, A105N Gate Valve, 1 Inch Gate Valve ,Class 800 Gate Valve,API602 Gate Valve, BS5352 Gate Valve, 25mm BB Gate Valve,DN25 Gate Valve,SW End Gate Valve,Full Port Gate Valve,Solid Wedge Gate Valve
