| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | H44Y-PN150-2INCH |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API 600,BS 1868,ASME B16.34 | Body Material:: | 2"~36":WCB,LCB,WC6,WC9,C12,C5,CF8,CF8M,CF3,CF3M |
|---|---|---|---|
| Nominal Diameter: | NPS 2"~36" | Pressure: | Class 150~2500 |
| End Connection.: | ASME B16.5,ASME B16.47,ASME B1.20.1,ASME B16.11,DIN 2453~2551,ASME B16.25 | Face To Face: | ASME B16.10,API 6D,BSEN 558 |
| Test And Inspection: | ISO 5208,API 600,BS 6755 | ||
| High Light: | Pressure Seal Swing Check Valves,Class 150 Swing Check Valve,Flange Ends Swing Check Valves |
||

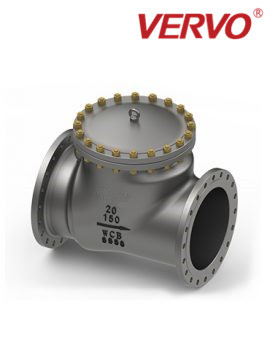

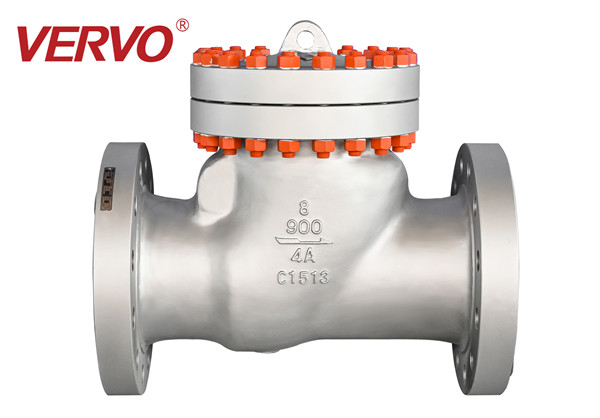

Swing Check Valves are manufactured to the latest edition of BS1868 and tested to API Standard 598.
Applicable Standards:
– Check valve design according to BS1868,ASME B16.34
– Face to face ASME B16.10
– End Flanges ASME B16.5/ASME B16.47
– Buttwelding ends ASME B16.25
– Inspection and test API 598
Pressure Range:
– ASME CL150, CL300, CL600, CL900, CL1500
Working temp:
– -196°C~650°C
Size Range:
– 2”~36”
End Connection:
– Flanged, butt weld,
Body Material:
– A216 WCB, A217 WC6/WC9, A351 CF8/ CF8M, A352 LCB/LCC
Seat:
metal to metal, 13Cr, HF, Stellite
– Outside Screw and York
– Bolted Bonnet and Pressure Seal
– Welding seat rings or Renewable seat rings
– Flange Ends
– Buttwelding Ends
