| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | H71Y-150LB-DN250 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API594 | Body Material:: | Casting Steel Carbon Steel A216 WCB |
|---|---|---|---|
| Nominal Diameter: | 10 Inch/DN250/250MM | Pressure: | CL150 (PN20). |
| End Connection.: | Double Flange End | Face To Face: | API594 |
| Test And Inspection: | API 598 | ||
| High Light: | Double Flanged Dual Plate Check Valve,cast steel dual plate check valve DN250,api 594 wafer check valve |
||

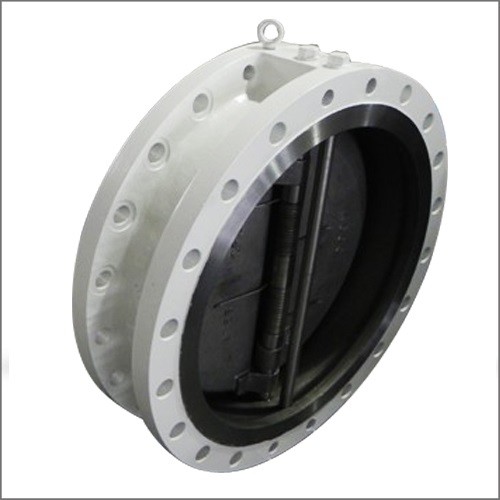

DN250 Cast Steel Wafer Check Valve 10 Inch 150LB API594 Dual Plate Check Valve A216 WCB Carbon Steel Check Valve
Retainerless design valves are standard in VERVO dual plate check valves; we also can provide valves with retainer plug upon request
| Item | Dual Plate Double Flange Check Valve |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Brand | VERVO |
| Model number | H71W-150LB-10INCH |
| Port Size | 10inch/DN250 |
| Structure type | Dual Plate Double Flange Check Valve |
| Pressure | 150LB |
| Temperature | -46-325 |
| Connection form | Double Flange Type End |
| Material | Casting Steel Carbon Steel A216 WCB |
| Feature | Easy disassembly |
Retainerless design
VERVO dual plate check valves are offered as retainerless in wafer, lug, flanged, hub end, butt-weld end and thread end body style.
Certificate
All product registered by LR’s in accordance with CE/PED.
API 594 and API 6D certificate issued by American Petroleum Institute.
Inherently fire safe design
All VERVO check valves are inherently fire safe due to the valve design, material and construction. In case of fire, both resilient seat and metal seat valves provide metal to metal sealing performance.
Light weight and reduced size
Installation costs are greatly reduced by VERVO’s light weight and minimal space requirements. The compact design minimizes the distance between flanges and is easily installed between all flanges.
Horizontal/Vertical installation
Unlike most traditional swing check valves, VERVO check valves are ideal for both horizontal and vertical pipeline installation.
STANDARD
| Design & Manufacture | API 594 ,ASME B16.34,API 6D |
| Face-to-face | API 594, ASME B16.10 |
| End Dimension | ASME B16.5 (RF) ASME B16.47 (RF),MSS SP-44 (NPS 22 Only) |
| Test & inspection | API 598, API 6D, ISO 5208 |
TYPICAL MATERIAL
| Body,Disc |
A216 WCB, WCC, A217 WC6,WC9 A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A,Monel, Inconel, Hastelloy |
|
Seat |
FKM, HNBR, EPDM, |
| Pin | A276 410, 304, 316, |
| Spring | Inconel x750 |
| ASME CLASS 150 (PN 20) | ASME CLASS 300 (PN 50) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Size in/mm |
D | L | Weight (lb/kg) | Size in/mm |
D | L | Weight (lb/kg) | |||||||||||||||||||||||||||||||||||||||||||||||||||
| WAFER / LUG | WAFER | WAFER / LUG | WAFER | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2 50 |
2 50 |
2.36 60 |
4 2 |
2 50 |
2 50 |
2.36 60 |
7 3 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 2 ½ 65 |
2 ½ 65 |
2.64 67 |
7 3 |
2 ½ 65 |
2 ½ 65 |
2.64 67 |
9 4 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 3 80 |
3 80 |
2.87 73 |
9 4 |
3 80 |
3 80 |
2.87 73 |
13 6 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 4 100 |
4 100 |
2.87 73 |
11 5 |
4 100 |
4 100 |
2.87 73 |
18 8 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 6 150 |
6 150 |
3.86 98 |
29 13 |
6 150 |
6 150 |
3.86 98 |
40 18 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 8 200 |
8 200 |
5 127 |
55 25 |
8 200 |
8 200 |
5 127 |
84 38 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 10 250 |
10 250 |
5.75 146 |
86 39 |
10 250 |
10 250 |
5.75 146 |
112 51 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 12 300 |
12 300 |
7.13 181 |
119 54 |
12 300 |
12 300 |
7.13 181 |
170 77 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 14 350 |
14 350 |
7.24 184 |
176 80 |
14 350 |
14 350 |
8.74 222 |
258 117 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 16 400 |
16 400 |
7.52 191 |
258 117 |
16 400 |
16 400 |
9.13 232 |
419 190 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 18 450 |
18 450 |
8 203 |
359 163 |
18 450 |
18 450 |
10.39 264 |
441 200 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 20 500 |
20 500 |
8.62 219 |
729 331 |
20 500 |
20 500 |
11.5 292 |
584 265 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 24 600 |
24 600 |
8.74 222 |
837 380 |
24 600 |
24 600 |
12.5 318 |
903 410 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 28 700 |
28 700 |
12 305 |
969 440 |
28 700 |
28 700 |
12 305 |
1145 520 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 30 750 |
30 750 |
12 305 |
1189 540 |
30 750 |
30 750 |
14.5 368 |
1278 580 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 36 900 |
36 900 |
14.5 368 |
1872 850 |
36 900 |
36 900 |
19 483 |
1960 890 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 40 1000 |
40 1000 |
17 432 |
2533 1150 |
40 1000 |
40 1000 |
22.36 568 |
2621 1190 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| 48 1200 |
48 1200 |
20.63 524 |
3524 1600 |
48 1200 |
48 1200 |
24.76 629 |
3744 1700 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
FAQ
1/Do you have any Certification ?
Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1
2/Can we visit your factory?
Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3/Do you have quality control system?
Yes, we have ISO/PED certifications and our own quality control laboratory.
4/Can you arrange the shipment for us?
Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.
5/Can I get some samples?
We are glad to provide free samples to you, but the express fee will be on your charge.
6/What is your after-sale service?
We provide after-sale service and offer 100% guarantee on our products.
7/What is your main products?
Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.
8/Are you trading company or manufacturer
We are factory, and welcome to visit our factory
9/What is your MOQ
No MOQ, As your request .Normal size and material we have stock
