| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | Q61/11F-800LB |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | 3 Piece Ball Valve | Standard: | API608/Gost/Din |
|---|---|---|---|
| Pressure: | Class150 Class300 Class600 Class900 Class1500 Class2500 | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃) |
| Size: | 1/4"-4",DN8-DN100 | Seat Material: | PTFE,RPTFE,Devlon,Nylon,Peek |
| Connection: | Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW,nipple |

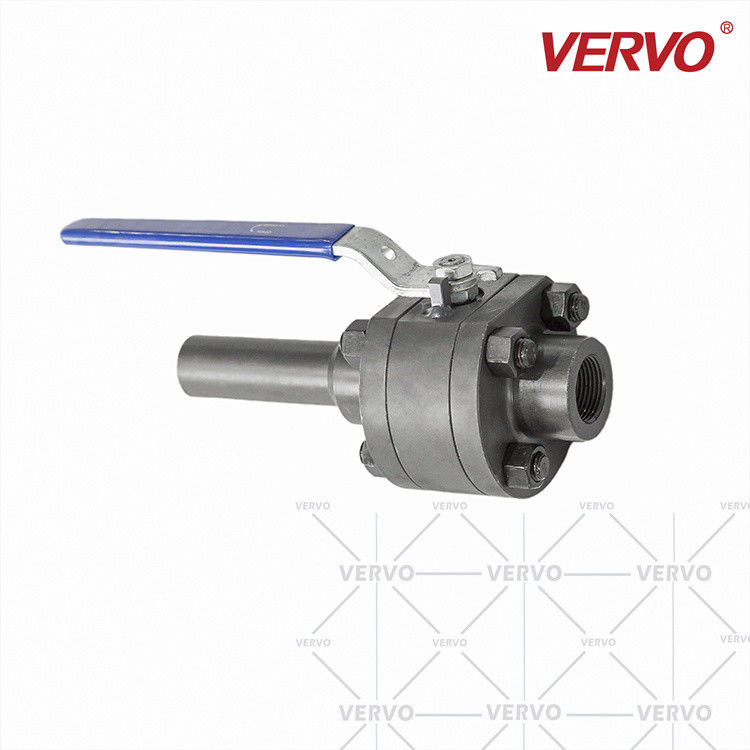

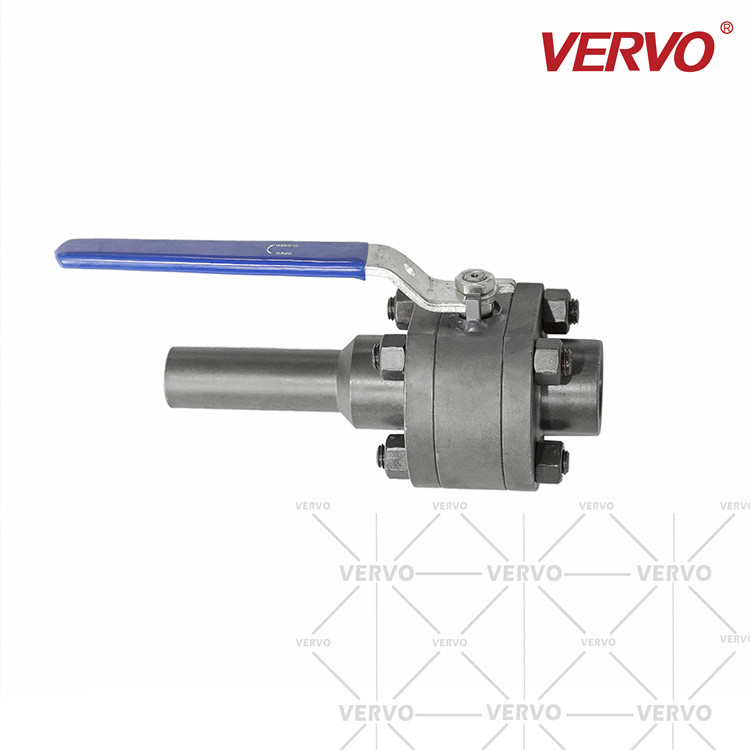

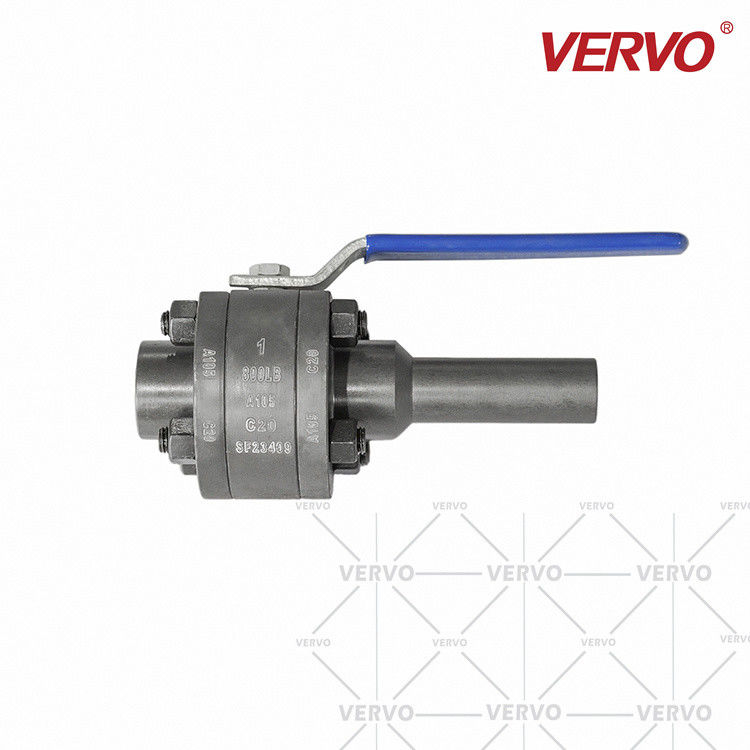

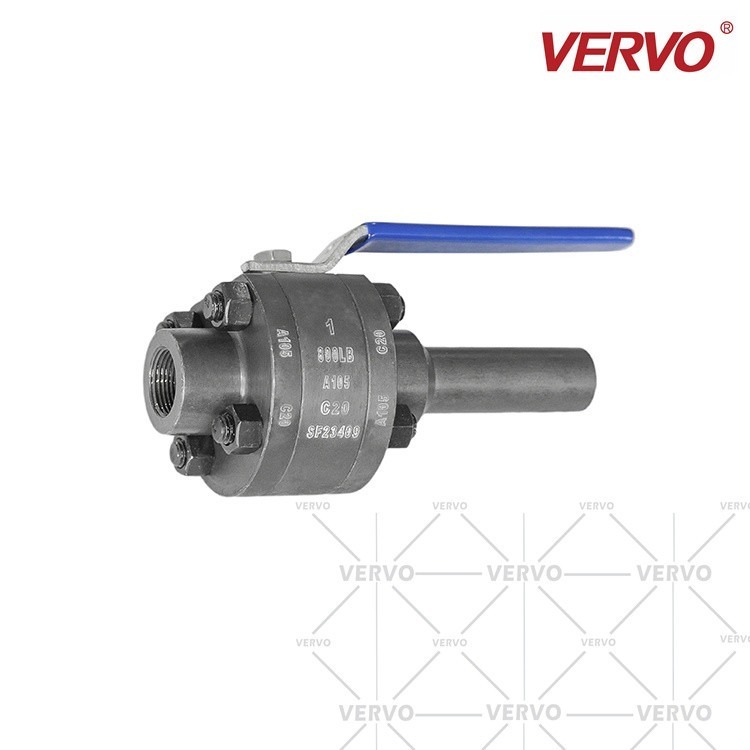

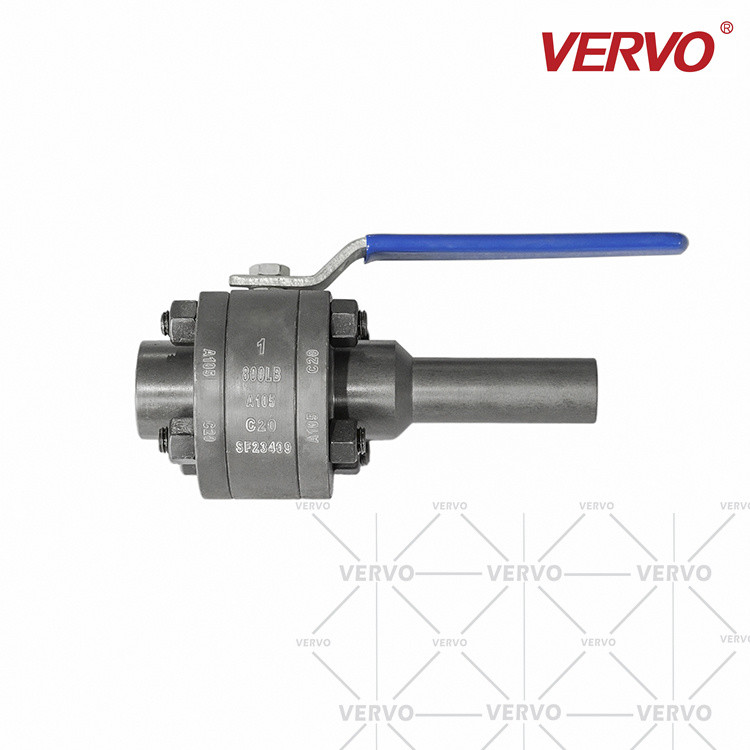

DN25 Soft Seal Ball Valve One Side NPT One Side Nipple Forged Ball Valve Three Piece Type API608 Fire Safe Design
| Item | Valve |
| Type | Ball Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001 |
| Brand | VERVO |
| Model number | Q11/61F-800LB |
| Power | Manual |
| Port Size | 1" |
| Structure | Ball,Floating |
| Pressure | High perssure |
| Temperature | -46~200 |
| Medium | water,oil,steam |
| Connection form | Flange |
| Body material | Forged Steel A105 |
| Seal material | Gasket |
| CLASS 800LB/1500LB | |||||||
| SIZE | L | D | S | W | H | Weght kg) | |
| DN(mm) | NPS (in) | ||||||
| 15 | 1/2'' | 92 | 125 | 21.8 | 141 | 66 | 1.7 |
| 20 | 3/4'' | 112 | 17 | 27.2 | 141 | 72 | 2.7 |
| 25 | 1'' | 126 | 24 | 339 | 198 | 100 | 4.7 |
| 40 | 1 1/2'' | 152 | 37 | 438 | 239 | 112 | 9.5 |
| 50 | 2'' | 176 | 49 | 61.2 | 239 | 122 | 145 |
| CLASS 800LB/1500LB(with 100mmpup nipples on both ends) | |||||||
| SIZE | L | D | S | W | H | Weght kg) | |
| DN(mm) | NPS (in) | ||||||
| 15 | 1/2'' | 92 | 100 | 12.5 | 141 | 66 | 2 |
| 20 | 3/4'' | 112 | 100 | 17 | 141 | 72 | 33 |
| 25 | 1'' | 126 | 100 | 24 | 198 | 100 | 5.5 |
| 40 | 1 1/2'' | 152 | 100 | 37 | 239 | 112 | 11 |
| 50 | 2'' | 176 | 100 | 49 | 239 | 122 | 17.5 |
RFQ
1/Do you have any Certification ?
Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1
2/Can we visit your factory?
Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3/Do you have quality control system?
Yes, we have ISO/PED certifications and our own quality control laboratory.
4/Can you arrange the shipment for us?
Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.
5/Can I get some samples?
We are glad to provide free samples to you, but the express fee will be on your charge.
6/What is your after-sale service?
We provide after-sale service and offer 100% guarantee on our products.
7/What is your main products?
Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.
8/Are you trading company or manufacturer
We are factory, and welcome to visit our factory
9/What is your MOQ
No MOQ, As your request .Normal size and material we have stock
