| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | Q61F-800LB-DN40 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | 3 Piece Ball Valve | Standard: | API608/Gost/Din |
|---|---|---|---|
| Pressure: | Class150 Class300 Class600 Class900 Class1500 Class2500 | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃) |
| Size: | 1/4"-4",DN8-DN100 | Seat Material: | PTFE,RPTFE,Devlon,Nylon,Peek |
| Connection: | Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW |

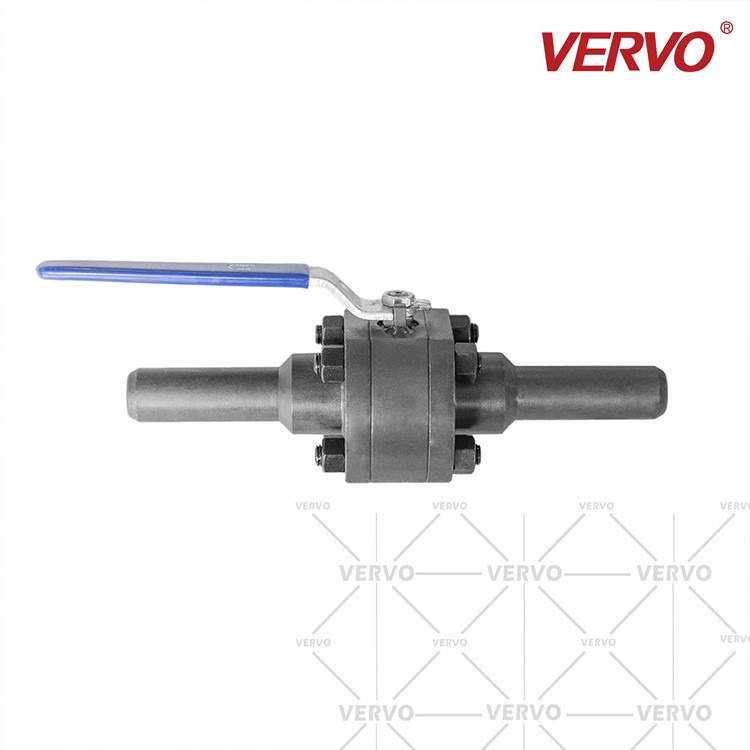

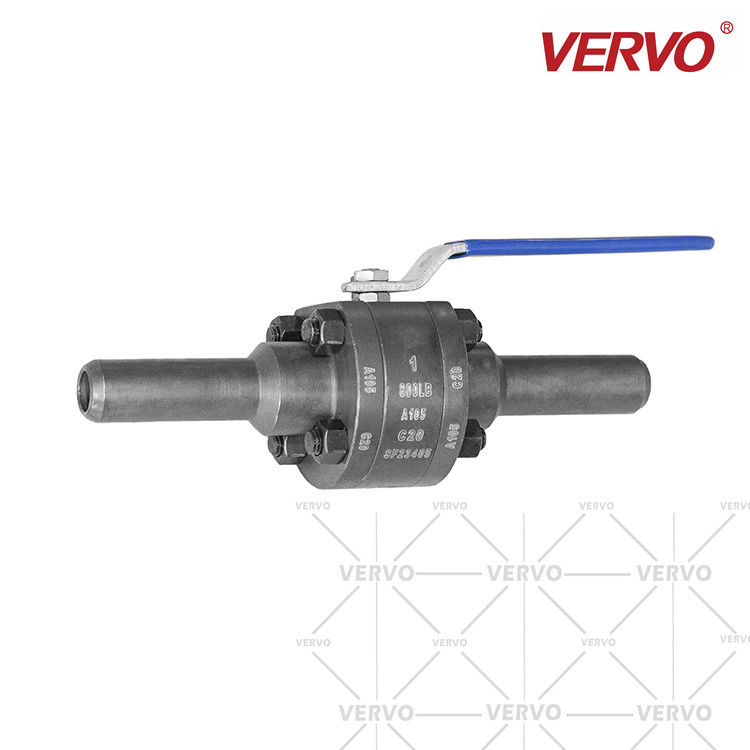

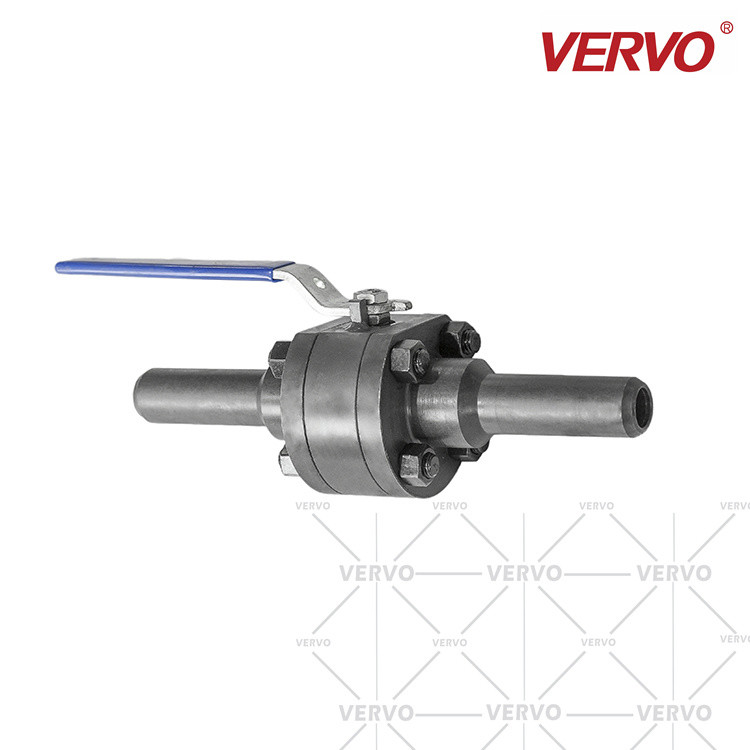

DN25 Three Piece Ball Valve With Nipple End Forged Steel Soft Seal PEEK Ball Valve Floating Type Carbon Steel Side Entry
| Item | Valve |
| Type | Ball Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001,API |
| Brand | VERVO |
| Model number | Q61F-800LB |
| Power | Manual |
| Port Size | 1" |
| Structure | Ball,Floating |
| Pressure | High perssure |
| Temperature | -46~200 |
| Medium | water,oil,steam |
| Connection form | Flange |
| Body material | Forged Steel A105 |
| Seal material | Gasket |
VERVO Metal Seat Ball Valves are manufactured to the latest edition of API 6D, API608, BS5351 and ASME BE 16.34 and tested to API 598. All valves from VERVO VALVE are strictly 100% tested before shipment to guarantee zero leakage.
| Technical data | |||||||
| Design | API 6D, ASME B16.34, ISO 14313, ISO 10423, ISO 17292 | ||||||
| Pressures range | ANSI 150 ~ANSI 2500 ,PN10~PN420 | ||||||
| Size range | DN15(1/2") ~DN1200 (48") | ||||||
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel.etc. | ||||||
| NACE MR-01-75/NACE MR-01-03 Special Requirements | |||||||
| Face to face | API 6D, ASME B 16.10,EN 558,DIN3202 | ||||||
| Fanged RF, FF, RTJ Ends | ASME B16.5 ≤ DN600 (24") ASME B16.47 A ≥ DN650 (26") | ||||||
| BS 4504,DIN 2543-2545,EN1092 | |||||||
| Butt-Weld BW Ends | ASME B16.25 ,DIN 3239,BS 2080, EN 12627 | ||||||
| Temperature range | -29°~ 425°C | ||||||
| Design feature | |||||||
| Construction | One,Two or Three piece body and Welded body | ||||||
| Port | Full bore and Reduced bore | ||||||
| Ball Type | Floating ball and fixed ball | ||||||
| Stem | Blowout-proof stem | ||||||
| Seat Sealing | Front-seat sealing, Back-seat sealing, bi-directional sealing | ||||||
| Valve Operation | Gear,pneumatic,Hydraulic,Electric actuators. | ||||||
| By passes,locking devices,extended stem,etc | |||||||
| Fire Safe | API 607, BS 6755, ISO 10497-5 | ||||||
| Other design | Anti-static design,automatic pressure relief design, emergency grease injection design, drain valve, anti-corrosion design, anti-sulfur design,etc | ||||||
| Inspection and Test | |||||||
| Visual Inspection | MSS SP-55 | ||||||
| Material Inspection |
|
||||||
| Dimensioninspection | According to drawings | ||||||
| Valve Inspection and Test | API 598,DIN 3230,EN 12266,BS 5146 | ||||||
RFQ
1/Do you have any Certification ?
Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1
2/Can we visit your factory?
Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3/Do you have quality control system?
Yes, we have ISO/PED certifications and our own quality control laboratory.
4/Can you arrange the shipment for us?
Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.
5/Can I get some samples?
We are glad to provide free samples to you, but the express fee will be on your charge.
6/What is your after-sale service?
We provide after-sale service and offer 100% guarantee on our products.
7/What is your main products?
Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.
8/Are you trading company or manufacturer
We are factory, and welcome to visit our factory
9/What is your MOQ
No MOQ, As your request .Normal size and material we have stock
Keywords of DN25 Three Piece Ball Valve With Nipple End Forged Steel Soft Seal PEEK Ball Valve Floating Type Carbon Steel Side Entry
DN25 Ball Valve,Nozzle Ball Valve,3 Piece Ball Valve,Soft Seal Ball Valve,Three Piece Ball Valve,Forged steel Stainless Steel Ball Valve,Metal to Metal Seat Ball Valve,Extended Butt Weld Ball Valve, With 100mm Nipples Ball Valve
