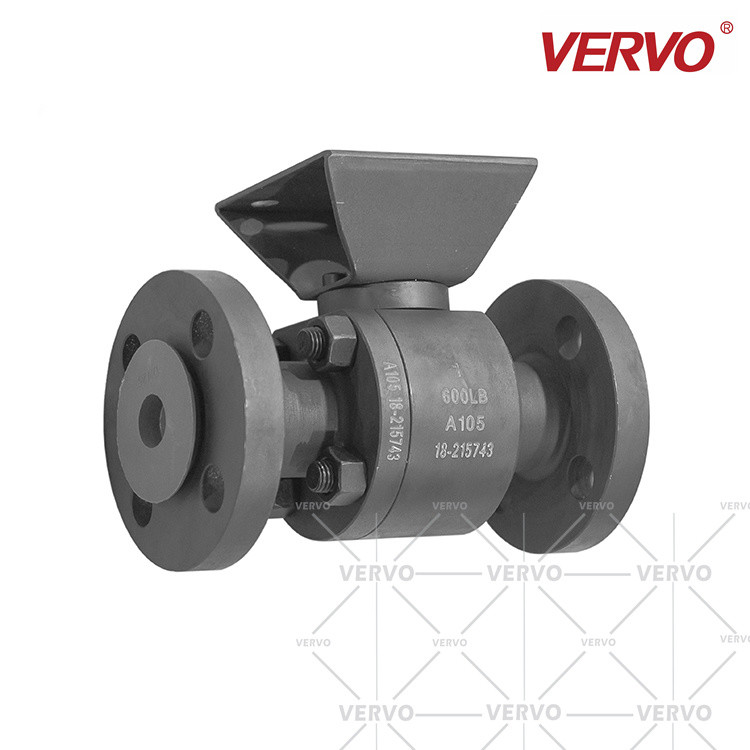

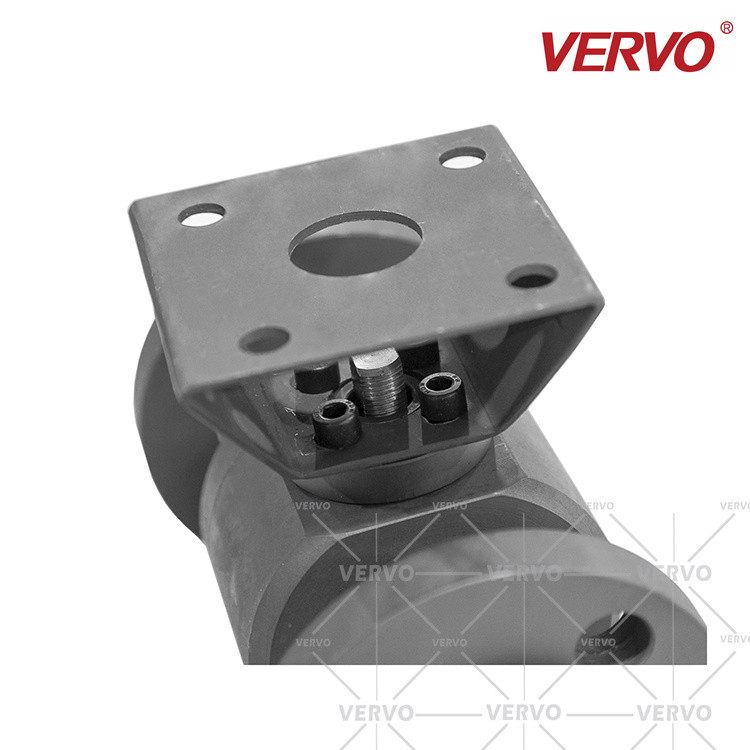

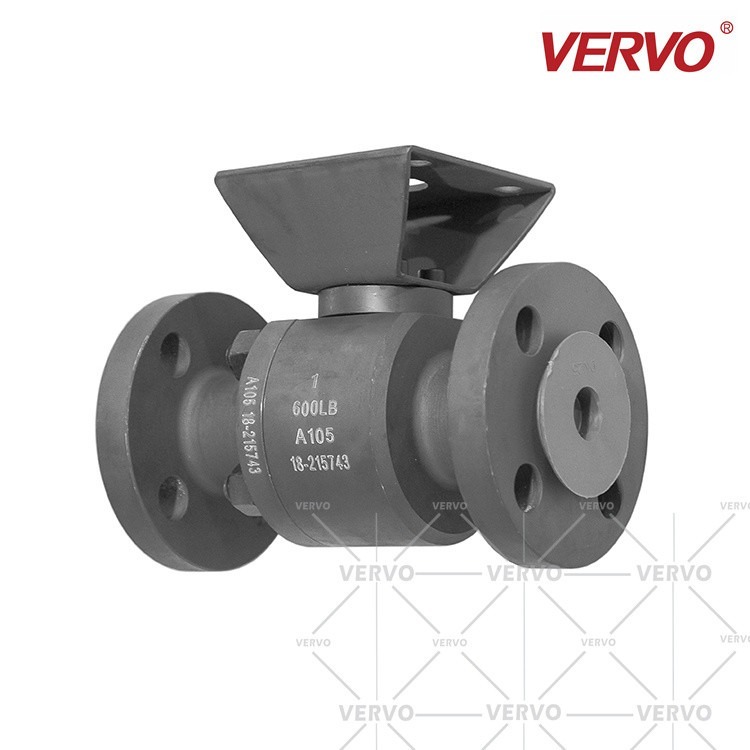

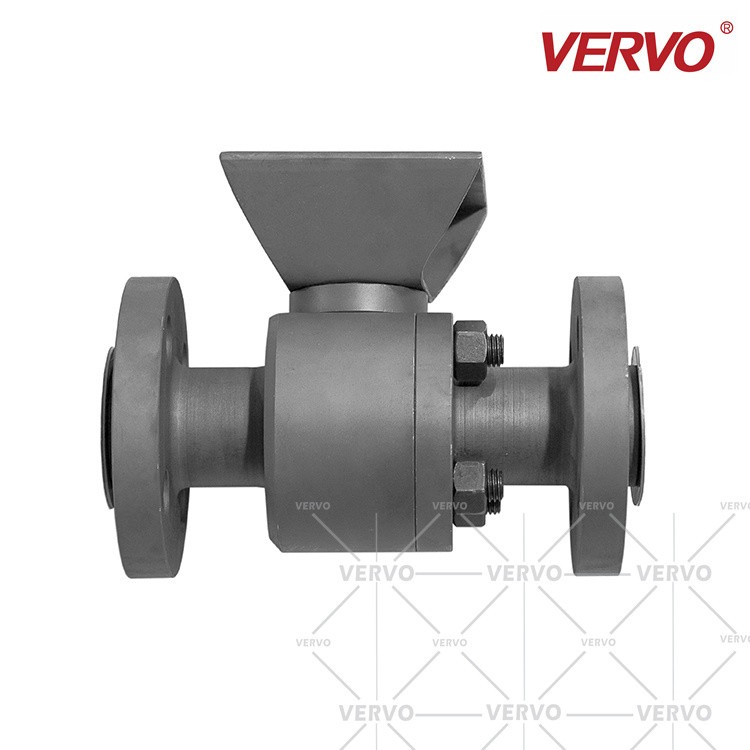

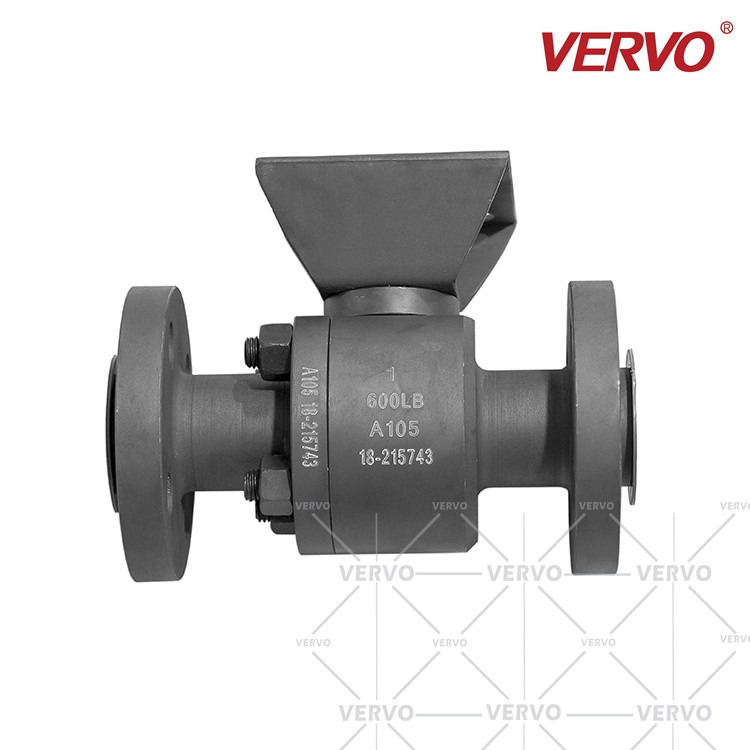

Dn25 2 Piece Ball Valve Forged Steel A105 1inch 600lb Rf Flanged Full Bore And Reduced Bore Ball Valve API608 Bare Stem

Dn25 2 Piece Ball Valve Forged Steel A105 1inch 600lb Rf Flanged Full Bore And Reduced Bore Ball Valve API608

INTRODUCTION

VERVO Valves manufactures a versatile range of Process Ball Valves in single, two and three piece constructions. The valves are available in full-bore and regular-bore designs, in a variety of end connections and materials to suit customer requirements.

The valves are of floating-ball design where the ball moves towards the downstream seat, under pressure, to effect a tight seal.

Salient Features:

Fire-safe to ISO 10497 and API 607
Mirror-finished solid stainless ball
Fine-grained PTFE seats
Cavity Pressure Relief mechanism
Blowout-proof stem
High integrity stem sealing – Belleville springs compensate for wear and thermal expansions
Antistatic feature
Actuator-mounting flange conforms to ISO 5211
SIL3 Safety Integrity Level for Automated Valves


Versatile Range:

Single, two and three piece constructions
Full-bore and regular-bore designs
Soft and metal-seated
Offered in carbon steel, stainless steel and duplex stainless steels
Screwed, socket-weld and flanged ends
ASME classes up to 2500
Variety of actuation options

PRODUCT RANGE

Sizes NPS 1/2 to NPS 4

Class 150 to Class 2500

MATERIALS

Available Forging (A105, A182 F304, F304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A352 LCB, LCC, LC2, A995 4A. 5A), Inconel, Hastelloy, Monel

DESIGN FEATURES

Full or Reduced Bore

RF, RTJ, or BW

Bolted bonnet

Anti-Static Device

Anti-Blow out Stem

Cryogenic or High Temperature, Extended Stem

DESIGN STANDARD

Design & manufacture according to API 6D, API 608, ISO 17292

Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard

End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)

Test & inspection according to API 6D, API 598

Fire safe design according to API 6FA, API 607

Also available per NACE MR-0175, NACE MR-0103, ISO 15848

RFQ

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock
