Forged Two Piece Low Temperature Extension Rod Liquid Nitrogen Pressure Plate Type With Locking device Ball Valve

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Q4161F-600LB
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: 2 Piece Ball Valve Standard: API608/Gost/Din
Pressure: Class150 Class300 Class600 Class900 Class1500 Class2500 Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃)
Size: 1/4"-4",DN8-DN100 Seat Material: PTFE,RPTFE,Devlon,Nylon,Peek
Connection: Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW

Forged Two Piece Low Temperature Extension Rod Liquid Nitrogen Pressure Plate Type With Locking Device Ball Valve



VERVO Cryogenic Ball Valves are mainly used in liquefied natural gas, liquefied petroleum gas installations, air separation devices, and other low-temperature industries. The most advanced Lip-Seal sealing technology is adopted by VERVO Cryogenic Ball Valve, which can maintain excellent sealing performance in application.

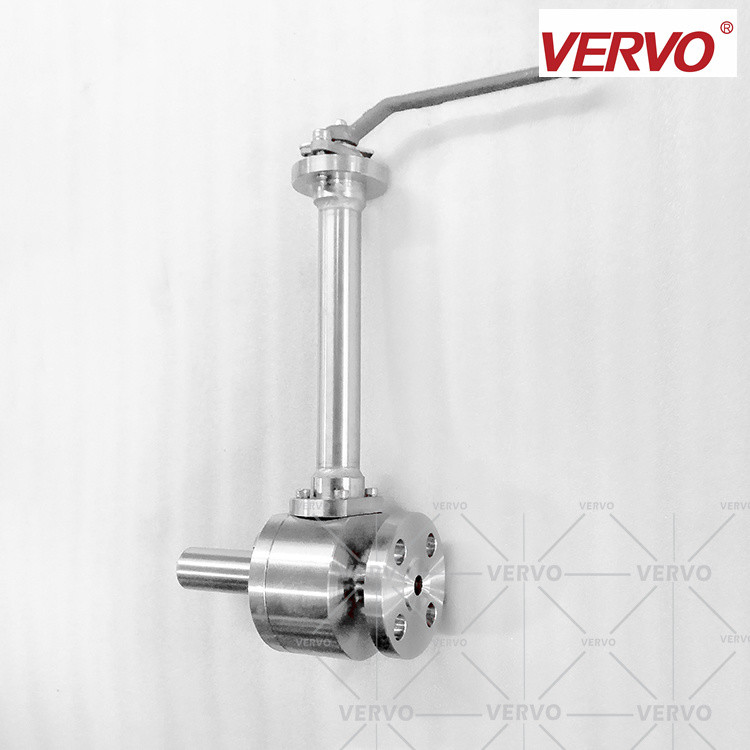

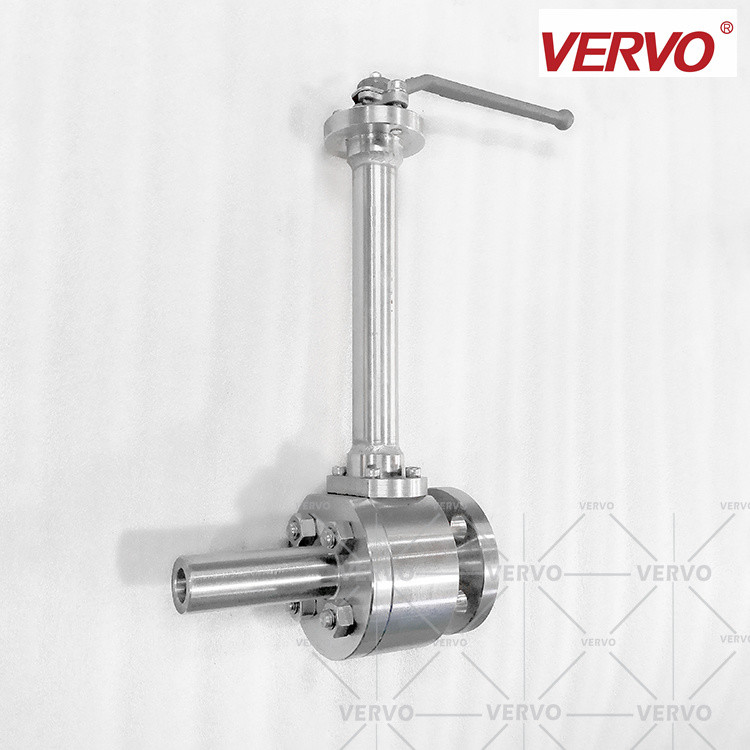

Forged Two Piece Low Temperature Extension Rod Liquid Nitrogen Pressure Plate Type With Locking device Ball Valve 0



For the ball valves which are commonly used in low temperatures, VERVO fully considers the requirements of various parts of the valve under low temperature conditions. Due to the temperature stress of the valve body under low temperature conditions, the additional stress of expansion and contraction of the connecting pipe is very high. Also, the rigidity of the casing is important to keep the valve sealing pair from deforming. In order to prevent the brittle failure of stress concentration at low temperature, VERVO Cryogenic Ball Valve avoids sharp angles or grooves on the shell during the production process.


In low temperature environments, the valve is designed with an extended stem to prevent damage caused by the temperature of packing box to freezing point. The austenitic stainless steel will undergo partial transformation at low temperature, which will result in phase transformation stress and deformation, and the temperature change will also produce temperature change stress and deformation. In the manufacturing process, VERVO thoroughly pays attention to the low-temperature cryogenic treatment of all parts of the valve to reduce the effect of temperature on the sealing performance for the Cryogenic Ball Valve.

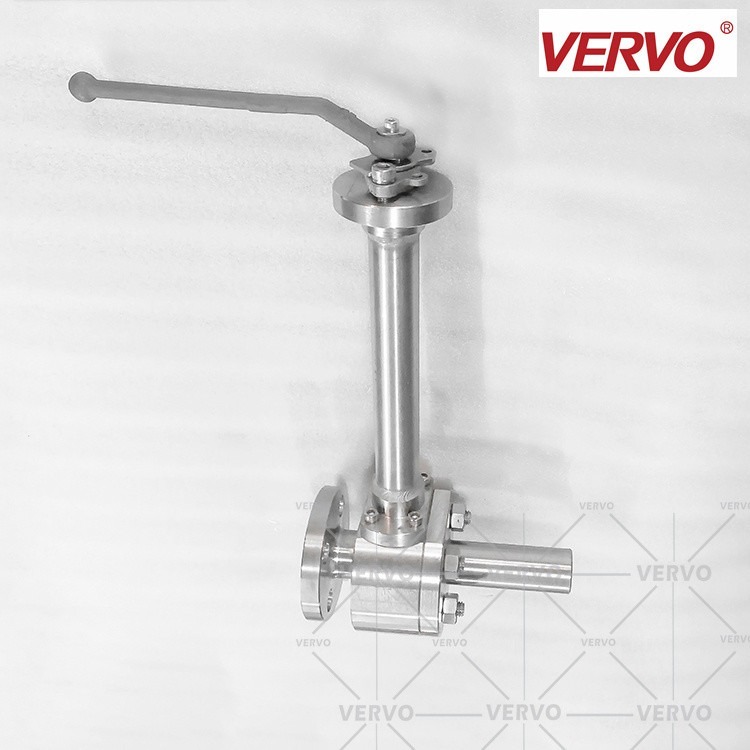

Forged Two Piece Low Temperature Extension Rod Liquid Nitrogen Pressure Plate Type With Locking device Ball Valve 1



Cryogenic Ball Valve medium is usually flammable and explosive, and when the valve seat is a non-metal polymer, there is danger of static electricity accumulation. That potential static can lead to a spark which can cause combustions and explosions. Therefore, within the design and manufacturing, VERVO sets a conduction device between the valve stem + the valve body and valve stem + disc to extract static electricity.
The low-temperature liquefied gas medium will vaporize and expand when the temperature rises. For example, if there is a closed space in the valve, the internal pressure of the valve will increase several times and cause leakage when the liquid is vaporized. In severe cases, the valve body cracks and causes an accident. The ball valve forms a confined space when fully closed and fully open, so RAYS adopts the valve cavity automatic pressure relief design. The
VERVO Cryogenic Ball Valve usually adopts the following two internal venting methods: 1) Through the pressure relief hole, the valve middle cavity is connected with the pipeline inlet end, so that the middle cavity pressure is always balanced with the pipeline inlet end; 2) While adopting DBB structure, once the chamber pressure reaches the set safety relief pressure, the cavity medium is discharged into the inlet line.

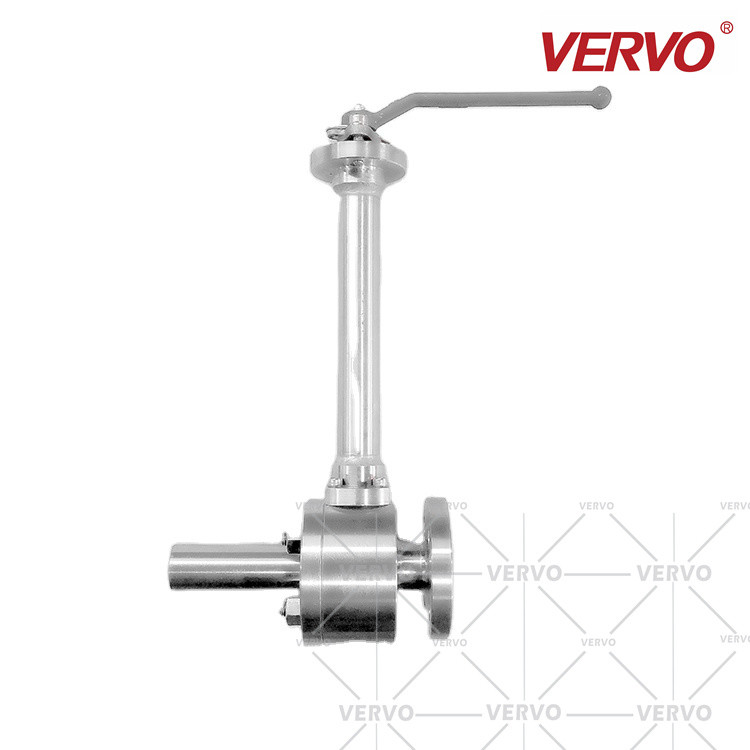

Forged Two Piece Low Temperature Extension Rod Liquid Nitrogen Pressure Plate Type With Locking device Ball Valve 2

Keywords of Forged Two Piece Low Temperature Extension Rod Liquid Nitrogen Pressure Plate Type With Locking Device Ball Valve



DN25 Ball Valve,2 Piece Ball Valve,Soft Seal Ball Valve,Two Piece Ball Valve,Forged steel Stainless Steel Ball Valve,Metal to Metal Seat Ball Valve,Liquid Nitrogen Treatment Ball Valve,With Locking Device Ball Valve,Low Temperature Ball Valve,Extension Rod Ball Valve,Cryogenic Ball Valves
