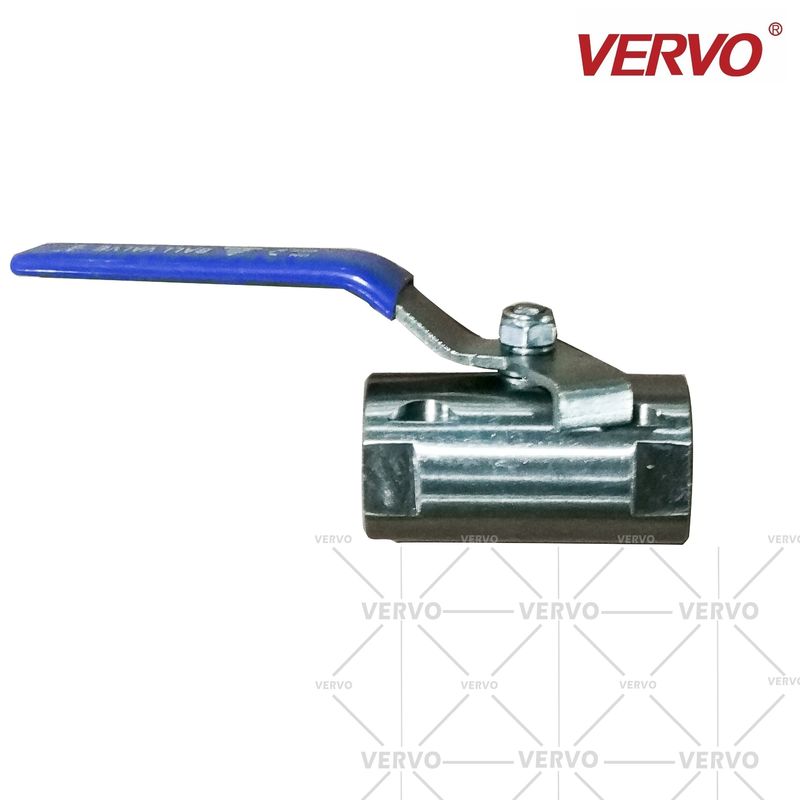

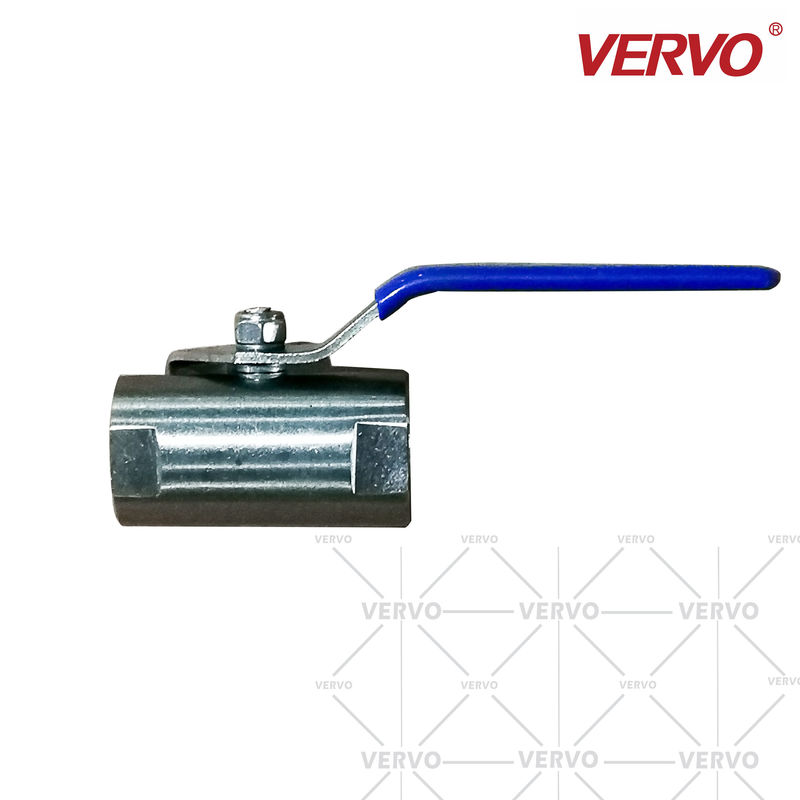

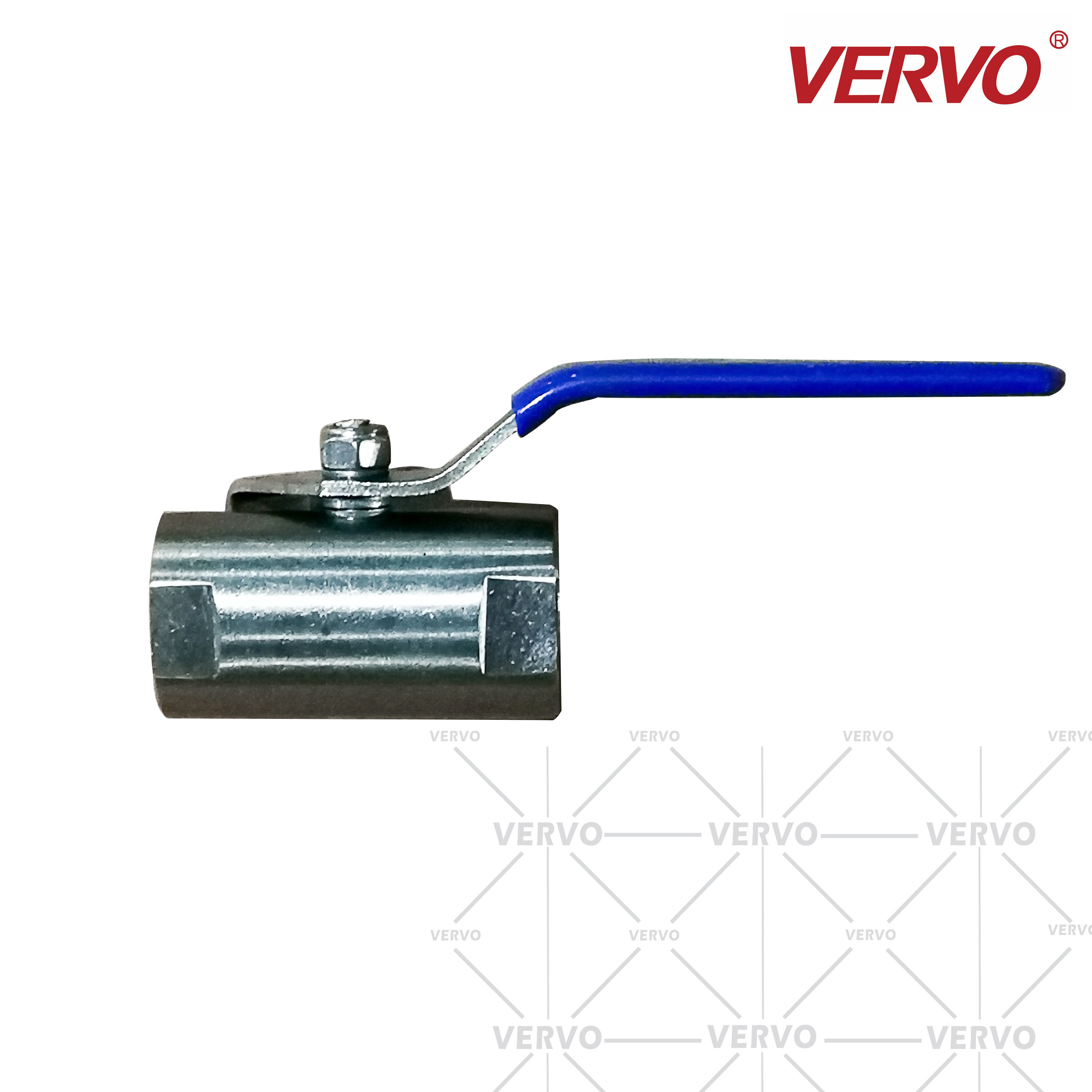

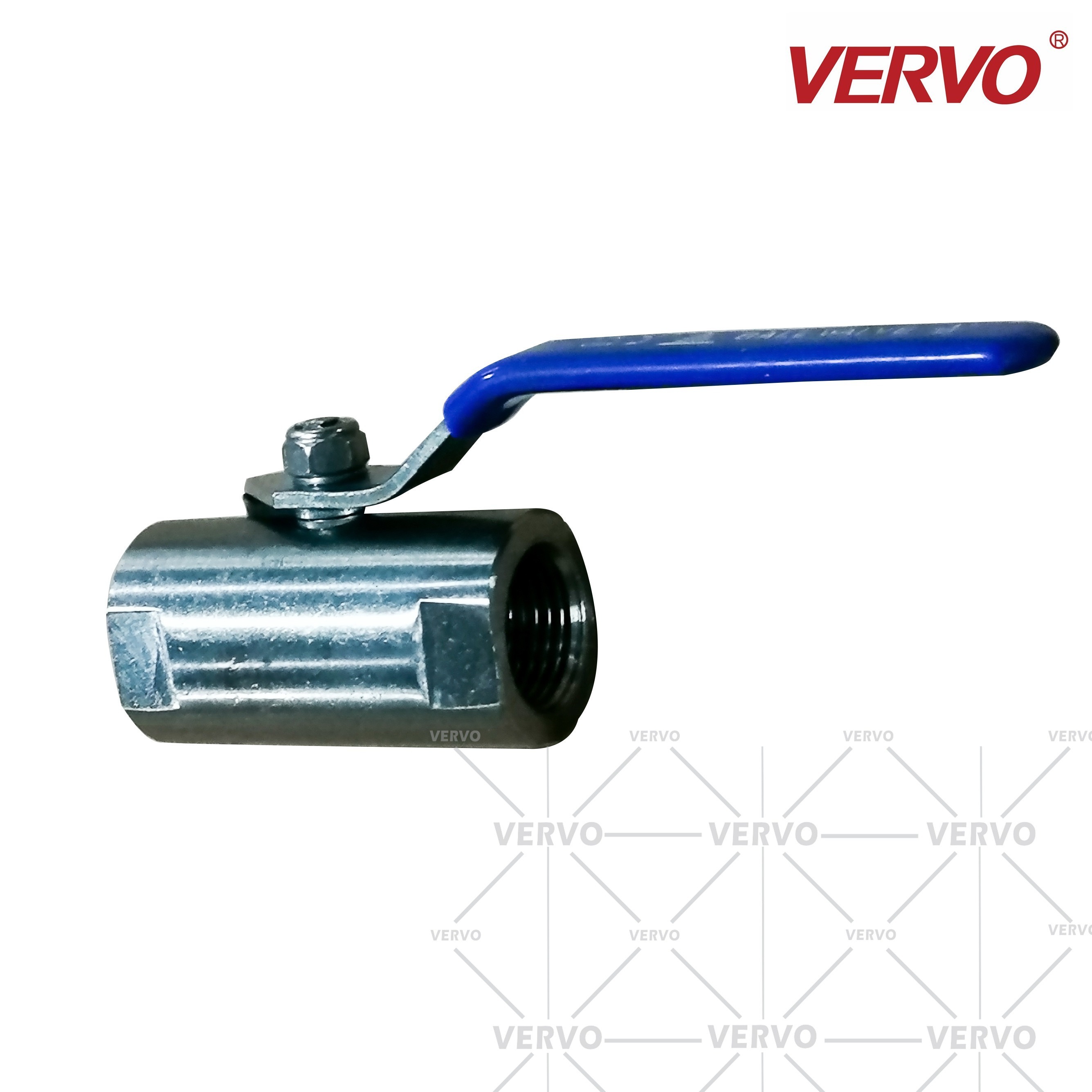

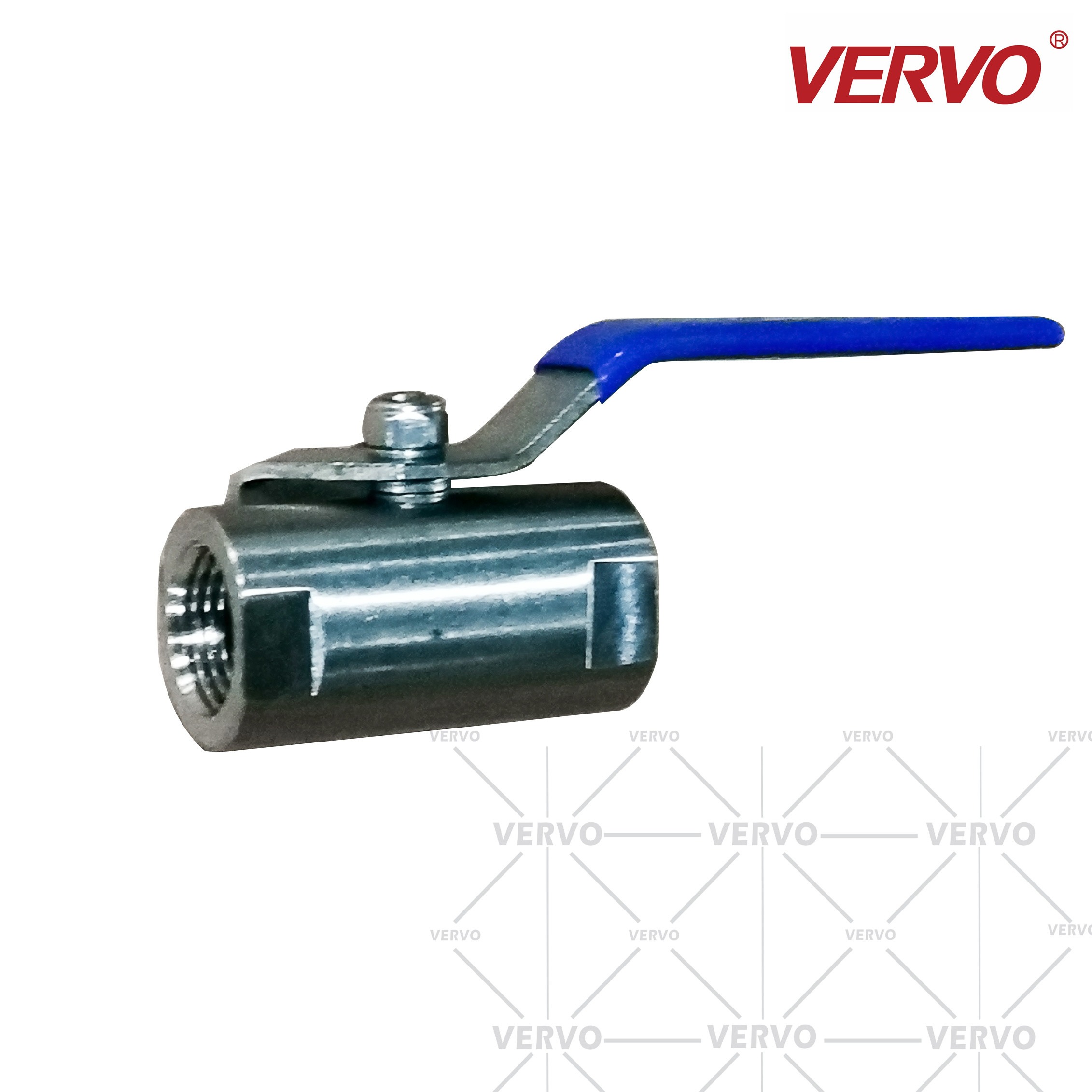

DN25 Bar 1 Piece Ball Valve One Piece Type Stainless Steel Soft Seal Internal Thread Ball Valve Side type API608

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Q61F-800LB
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: 1 Piece Ball Valve Standard: API608/Gost/Din
Pressure: Class150 Class300 Class600 Class900 Class1500 Class2500 Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃)
Size: 1/4"-4",DN8-DN100 Seat Material: PTFE,RPTFE,Devlon,Nylon,Peek
Connection: Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW

DN25 Bar 1 Piece Ball Valve One Piece Type Stainless Steel Soft Seal Internal Thread Ball Valve Side type API608



Item Valve
Type Ball Valve
Certification CE,TS,ISO9001,ISO14001,ISO18001
Brand VERVO
Model number Q11F-150LB
Power Manual
Port Size 1/2"
Structure Ball,Floating,one piece type ball valve
Pressure low perssure
Temperature -46~200
Medium Weak acid base medium
Connection form screw thread
Body material Stainless Steel Bar
Seal material Gasket
Feature Full Diameter/Full Port





Features:

DN25 Bar 1 Piece Ball Valve One Piece Type Stainless Steel Soft Seal Internal Thread Ball Valve Side type API608 0

Uses:

PRODUCT RANGE

DN25 Bar 1 Piece Ball Valve One Piece Type Stainless Steel Soft Seal Internal Thread Ball Valve Side type API608 1

Sizes NPS 1/2 to NPS 4

Class 150 to Class 2500



MATERIALS

DN25 Bar 1 Piece Ball Valve One Piece Type Stainless Steel Soft Seal Internal Thread Ball Valve Side type API608 2



Available Bar material (A105, A182 F304, F3304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5)



DESIGN FEATURES

DN25 Bar 1 Piece Ball Valve One Piece Type Stainless Steel Soft Seal Internal Thread Ball Valve Side type API608 3

Full or Reduced Bore

RF, RTJ, or BW

Bolted bonnet or welded body design

Anti-Static Device

Anti-Blow out Stem

Cryogenic or High Temperature, Extended Stem



DESIGN STANDARD

DN25 Bar 1 Piece Ball Valve One Piece Type Stainless Steel Soft Seal Internal Thread Ball Valve Side type API608 4

Design & manufacture according to API 6D, API 608, ISO 17292

Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard

End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)

Test & inspection according to API 6D, API 598

Fire safe design according to API 6FA, API 607

Also available per NACE MR-0175, NACE MR-0103, ISO 15848

DN25 Bar 1 Piece Ball Valve One Piece Type Stainless Steel Soft Seal Internal Thread Ball Valve Side type API608 5



FAQ

DN25 Bar 1 Piece Ball Valve One Piece Type Stainless Steel Soft Seal Internal Thread Ball Valve Side type API608 4

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock



Keywords of DN25 Bar 1 Piece Ball Valve One Piece Type Stainless Steel Soft Seal Internal Thread Ball Valve Side type API608

DN25 Bar 1 Piece Ball Valve One Piece Type Stainless Steel Soft Seal Internal Thread Ball Valve Side type API608 7

Bar Material Floating Ball Valve, Floating Ball Valve, 1000PSI Ball Valve, 1 Inch Ball Valve, API608 Ball Valve,One Piece Ball Valve,Soft Seated Ball Valve,1 Piece Ball Valve,SS Ball Valve
