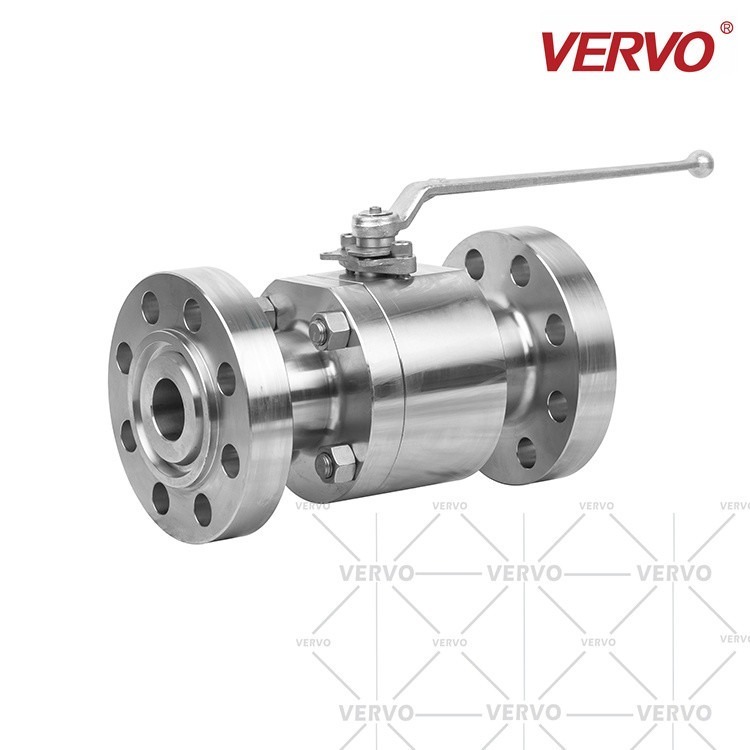

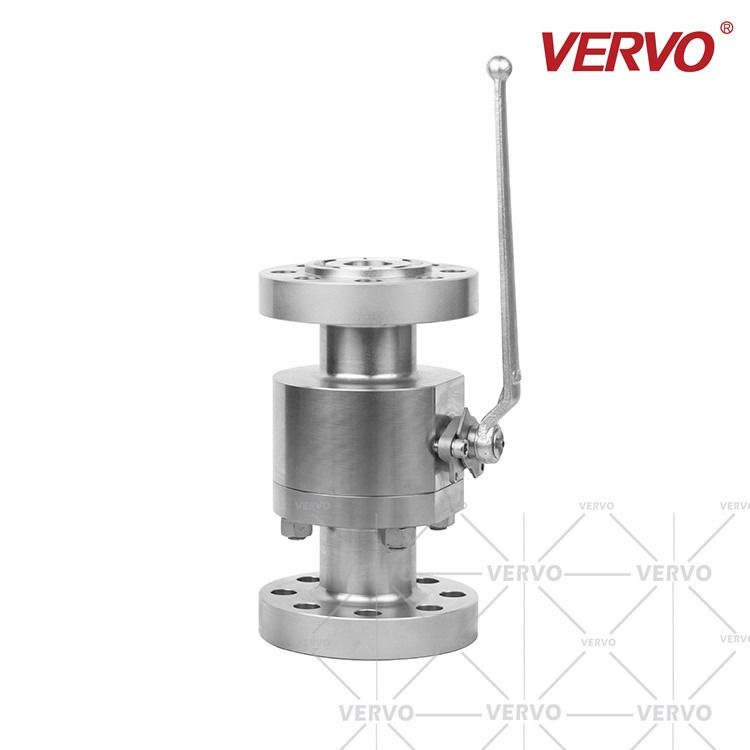

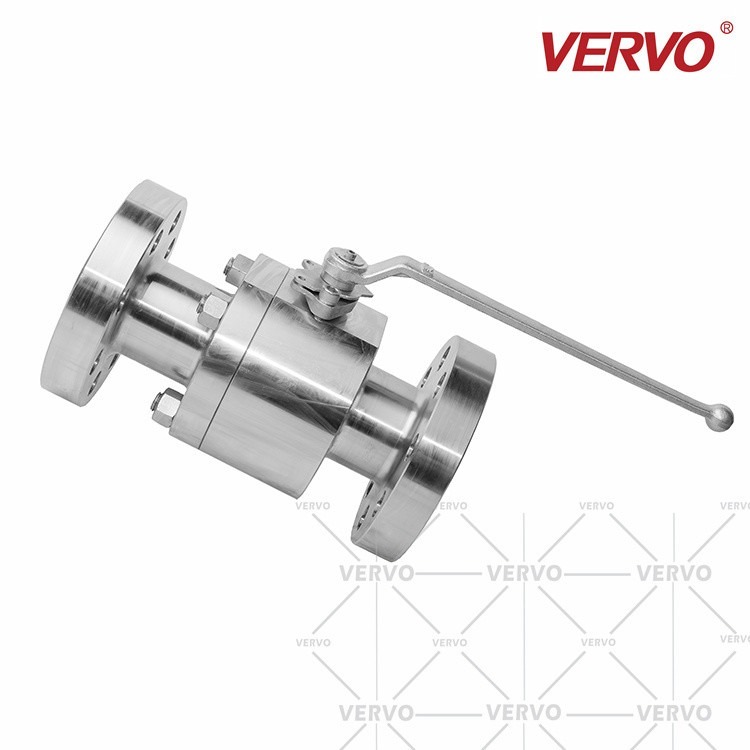

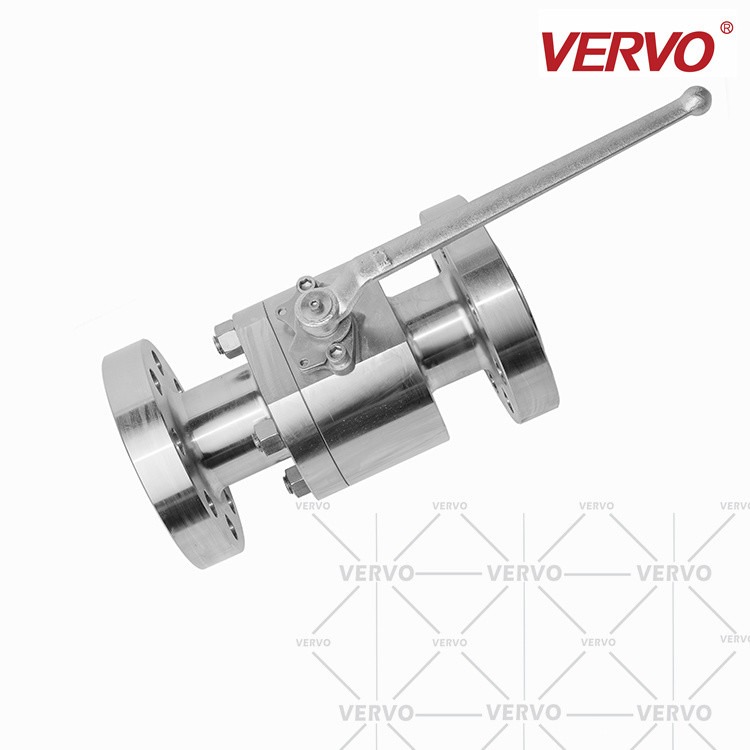

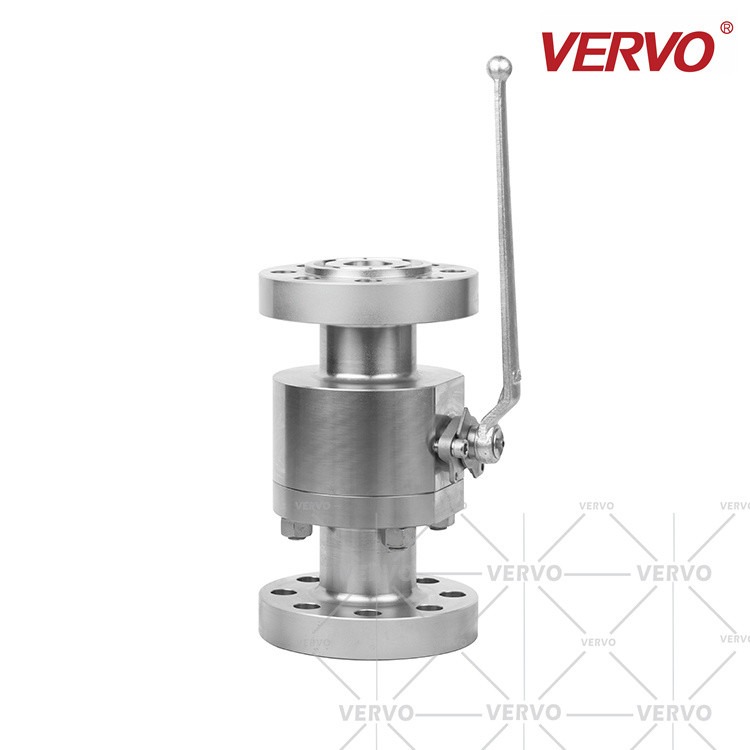

DN32 Ball Valve Fire Safe API607 Ball Valve Forged Stainless Steel F304 Flange Ball Valve 1 1/4 Inch Ball Valve

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Q41F-1500LB-DN32
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: 2 Piece Ball Valve Standard: API608/Gost/Din
Pressure: Class150 Class300 Class600 Class900 Class1500 Class2500 Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃)
Size: 1/4"-4",DN8-DN100 Seat Material: PTFE,RPTFE,Devlon,Nylon,Peek
Connection: Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW

DN32 Ball Valve Fire Safe API607 Ball Valve Forged Stainless Steel F304 Flange Ball Valve 1 1/4 Inch Ball Valve



INTRODUCTION

DN32 Ball Valve Fire Safe API607 Ball Valve Forged Stainless Steel F304 Flange Ball Valve 1 1/4 Inch Ball Valve 0

VERVO Valves manufactures a versatile range of Process Ball Valves in single, two and three piece constructions. The valves are available in full-bore and regular-bore designs, in a variety of end connections and materials to suit customer requirements.
The valves are of floating-ball design where the ball moves towards the downstream seat, under pressure, to effect a tight seal.

Antistatic feature:
DN32 Ball Valve Fire Safe API607 Ball Valve Forged Stainless Steel F304 Flange Ball Valve 1 1/4 Inch Ball Valve 0
Actuator-mounting flange conforms to ISO 5211
SIL3 Safety Integrity Level for Automated Valves


PRODUCT RANGE

DN32 Ball Valve Fire Safe API607 Ball Valve Forged Stainless Steel F304 Flange Ball Valve 1 1/4 Inch Ball Valve 0

Sizes NPS 1/2 to NPS 4

Class 150 to Class 2500



MATERIALS

DN32 Ball Valve Fire Safe API607 Ball Valve Forged Stainless Steel F304 Flange Ball Valve 1 1/4 Inch Ball Valve 0

Available Forging (A105, A182 F304, F3304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A352 LCB, LCC, LC2, A995 4A. 5A), Inconel, Hastelloy, Monel



DESIGN FEATURES

DN32 Ball Valve Fire Safe API607 Ball Valve Forged Stainless Steel F304 Flange Ball Valve 1 1/4 Inch Ball Valve 0

Full or Reduced Bore

RF, RTJ, or BW

Bolted bonnet

Anti-Static Device

Anti-Blow out Stem

Cryogenic or High Temperature, Extended Stem

Single, two and three piece constructions
Soft and metal-seated
Screwed, socket-weld and flanged ends
Variety of actuation options
Fire-safe to ISO 10497 and API 607
Mirror-finished solid stainless ball
Fine-grained PTFE seats
Cavity Pressure Relief mechanism
Blowout-proof stem
High integrity stem sealing – Belleville springs compensate for wear and thermal expansions



DESIGN STANDARD

DN32 Ball Valve Fire Safe API607 Ball Valve Forged Stainless Steel F304 Flange Ball Valve 1 1/4 Inch Ball Valve 0

Design & manufacture according to API 6D, API 608, ISO 17292

Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard

End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)

Test & inspection according to API 6D, API 598

Fire safe design according to API 6FA, API 607

Also available per NACE MR-0175, NACE MR-0103, ISO 15848



Item Valve
Type Ball Valve
Certification CE,TS,ISO18001,ISO9001,ISO14001
Brand VERVO
Model number Q41F-1500LB-DN32
Power Manual
Port Size 1 1/4"
Structure Ball,Floating
Pressure 64bar
Temperature -29~200
Medium Water,Steam,Oil
Connection form Flange
Body material Forged steel
Seal form Double seal

DN32 Ball Valve Fire Safe API607 Ball Valve Forged Stainless Steel F304 Flange Ball Valve 1 1/4 Inch Ball Valve 6

FAQ

DN32 Ball Valve Fire Safe API607 Ball Valve Forged Stainless Steel F304 Flange Ball Valve 1 1/4 Inch Ball Valve 7

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock





Keywords of DN32 Ball Valve Fire Safe API607 Ball Valve Forged Stainless Steel F304 Flange Ball Valve 1 1/4 Inch Ball Valve



DN32 Ball Valve Fire Safe API607 Ball Valve Forged Stainless Steel F304 Flange Ball Valve 1 1/4 Inch Ball Valve 8

DN32 Ball Valve,F304 Ball Valve,2 Piece Ball Valve,Soft Seal Ball Valve,Two Piece Ball Valve,Forged steel Stainless Steel Ball Valve,Metal to Metal Seat Ball Valve,RPTFE Seat Ball Valve,Devlon Seat Ball Valve,Peek Seat Ball Valve,F316 Ball Valve,F51 Ball Valve,F53 Ball Valve,Hard Seal Ball Valve,Metal to Metal Ball Valve
