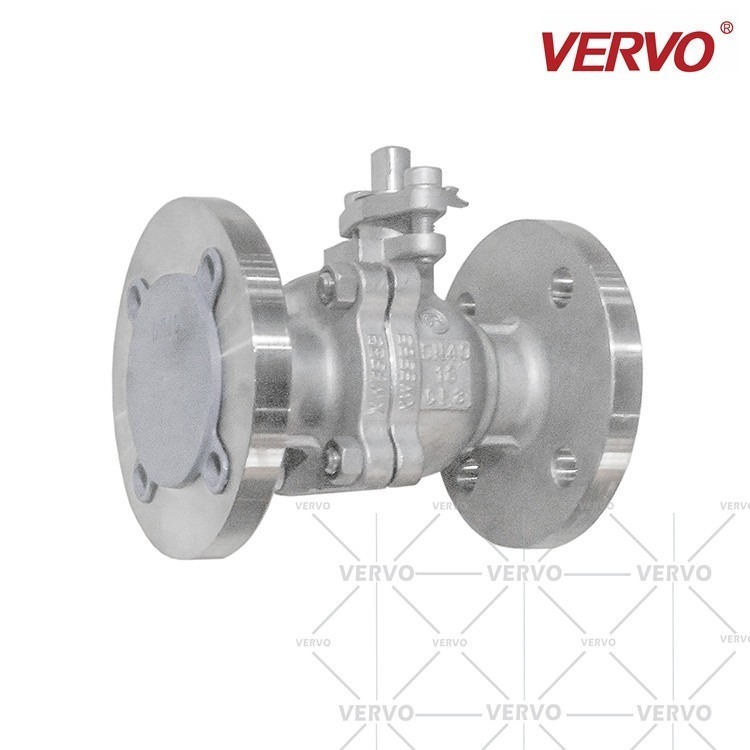

DN32 2 Piece Ball Valve Stainless Steel CF8 Flange 1 1/4 Inch Flanged Ball Valve Side Entry API608 WCB CF8 CF8M CF3 CF3M

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Q41F-DN32
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: 2 Piece Ball Valve Flanged Ball Valve Standard: API608/Gost/Din
Pressure: Class150 Class300 Class600 Class900 Class1500 Class2500 Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃)
Size: 1/4"-60",DN8-DN1500 Seat Material: PTFE,RPTFE,Devlon,Nylon,Peek
Connection: Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW

DN32 2 Piece Ball Valve Stainless Steel CF8 Flange 1 1/4 Inch Flanged Ball Valve side entry API608 wCB CF8 CF8M CF3 CF3M



Model number Q41F-25
Item 2 Piece Type Ball valve
Certification CE,TS,ISO9001,ISO14001,ISO18001
Connection form Flanged
Body material Casting CF8
Seal material Gasket
Feature Easy disassembly and assembly



VERVO floating ball valves are offered in 2 PC side entry, 3 PC side entry or welded body design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO floating ball valves are manufactured according to API 6D or API 608 Design and fire tested per API 6FA and API 607 Standard.



PRODUCT RANGE

DN32 2 Piece Ball Valve Stainless Steel CF8 Flange 1 1/4 Inch Flanged Ball Valve Side Entry API608 WCB CF8 CF8M CF3 CF3M 0

Sizes NPS 1 to NPS 60

Class 150 to Class 2500



MATERIALS

DN32 2 Piece Ball Valve Stainless Steel CF8 Flange 1 1/4 Inch Flanged Ball Valve Side Entry API608 WCB CF8 CF8M CF3 CF3M 1



Available Forging (A105, A182 F304, F3304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A352 LCB, LCC, LC2, A995 4A. 5A), Inconel, Hastelloy, Monel



DESIGN FEATURES

DN32 2 Piece Ball Valve Stainless Steel CF8 Flange 1 1/4 Inch Flanged Ball Valve Side Entry API608 WCB CF8 CF8M CF3 CF3M 2

Full or Reduced Bore

RF, RTJ, or BW

Bolted bonnet or welded body design

Anti-Static Device

Anti-Blow out Stem

Cryogenic or High Temperature, Extended Stem



DESIGN STANDARD

DN32 2 Piece Ball Valve Stainless Steel CF8 Flange 1 1/4 Inch Flanged Ball Valve Side Entry API608 WCB CF8 CF8M CF3 CF3M 3

Design & manufacture according to API 6D, API 608, ISO 17292

Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard

End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)

Test & inspection according to API 6D, API 598

Fire safe design according to API 6FA, API 607

Also available per NACE MR-0175, NACE MR-0103, ISO 15848



TYPICAL MATERIALS

DN32 2 Piece Ball Valve Stainless Steel CF8 Flange 1 1/4 Inch Flanged Ball Valve Side Entry API608 WCB CF8 CF8M CF3 CF3M 4
Body/Closures

(Forging) A105, A182 F304, F304L, F316,F316L, F51, F53, A350 LF2, LF3, LF5,
Inconel, Hastelloy, Monel
(Casting) A216 WCB, A351 CF3, CF8, CF3M,CF8M, A352 LCB, LCC, LC2, A995 4A, 5A,
Ball CS+ENP, A182 F304, F304L, F316, F316L,F51, F53, CS/SS+TCC, CS/SS+Ni60
Seat retainer CS+ENP, A182 F304, F304L, F316, F316L,F51, F53, CS/SS+TCC, CS/SS+Ni55
Seal Ring PTFE, RPTFE, PCTFE, Devlon, PEEK
Stem A182 F6a, F316, F51, A105+ENP, AISI4140+ENP, 17-4PH,XM-19
Packing Graphite, PTFE, RPTFE
O-ring Viton, HNBR, FVMQ, AFLAS



DN32 2 Piece Ball Valve Stainless Steel CF8 Flange 1 1/4 Inch Flanged Ball Valve Side Entry API608 WCB CF8 CF8M CF3 CF3M 5

DN32 2 Piece Ball Valve Stainless Steel CF8 Flange 1 1/4 Inch Flanged Ball Valve Side Entry API608 WCB CF8 CF8M CF3 CF3M 6





1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock



Keywords of DN32 2 Piece Ball Valve Stainless Steel CF8 Flange 1 1/4 Inch Flanged Ball Valve side entry API608 WCB CF8 CF8M CF3 CF3M



DN32 2 Piece Ball Valve Stainless Steel CF8 Flange 1 1/4 Inch Flanged Ball Valve Side Entry API608 WCB CF8 CF8M CF3 CF3M 7

Carbon Steel Ball Valve, Floating Ball Valve, DN32 Ball Valve, 1.25 Inch Ball Valve, RF Flange Ball Valve, DN32 Floating Ball Valve,Soft Seated Ball Valve,Soft Ball Valve,Metal to Metal Seat,Side Entry Ball Valve
