|Name:||2 Piece Ball Valve||Standard:||API608/Gost/Din|
|Pressure:||Class150 Class300 Class600 Class900 Class1500 Class2500||Temperature Of Media:||Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃)|
|Size:||1/4"-4",DN8-DN100||Seat Material:||PTFE,RPTFE,Devlon,Nylon,Peek,Metal To Metal Seat|
|Connection:||Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW|

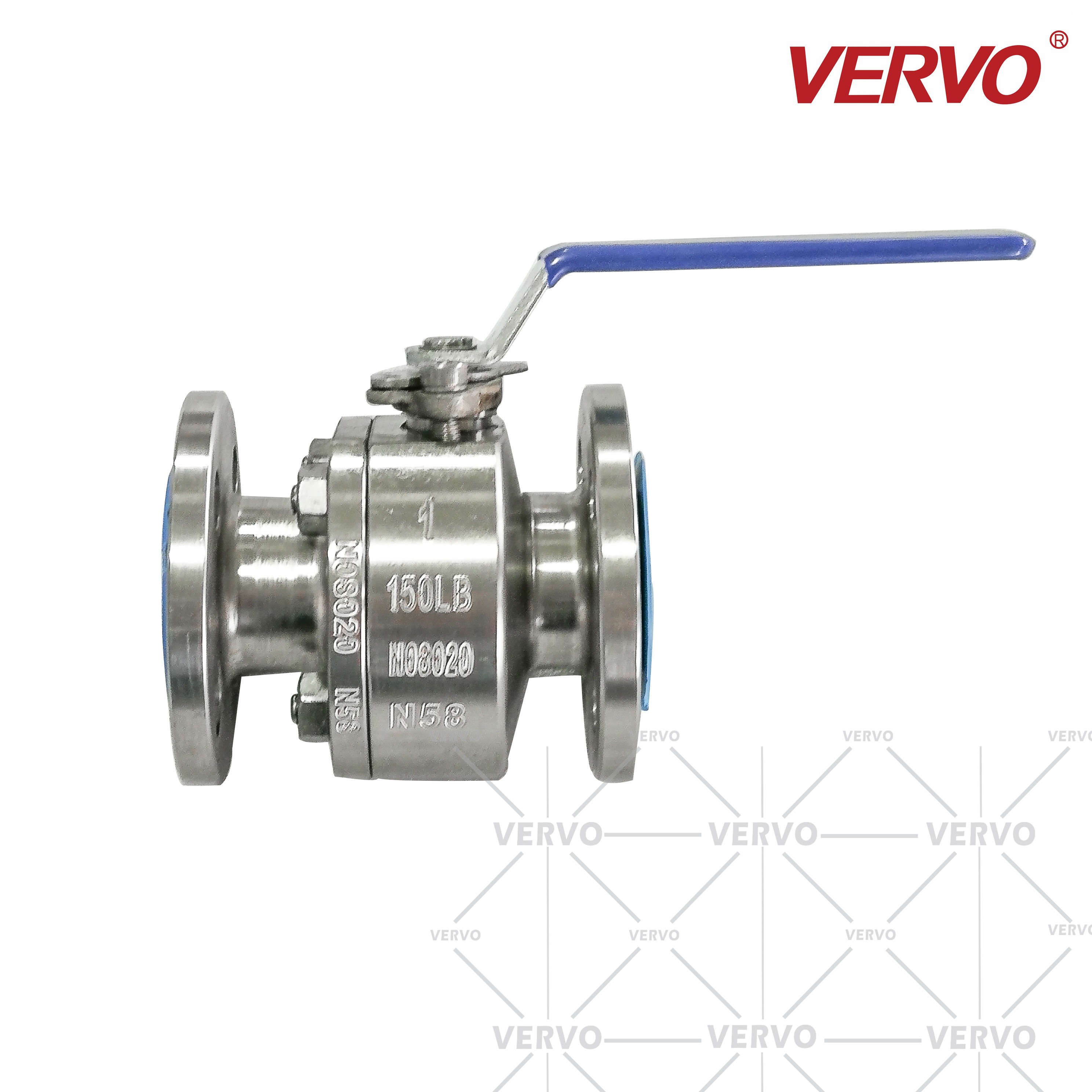

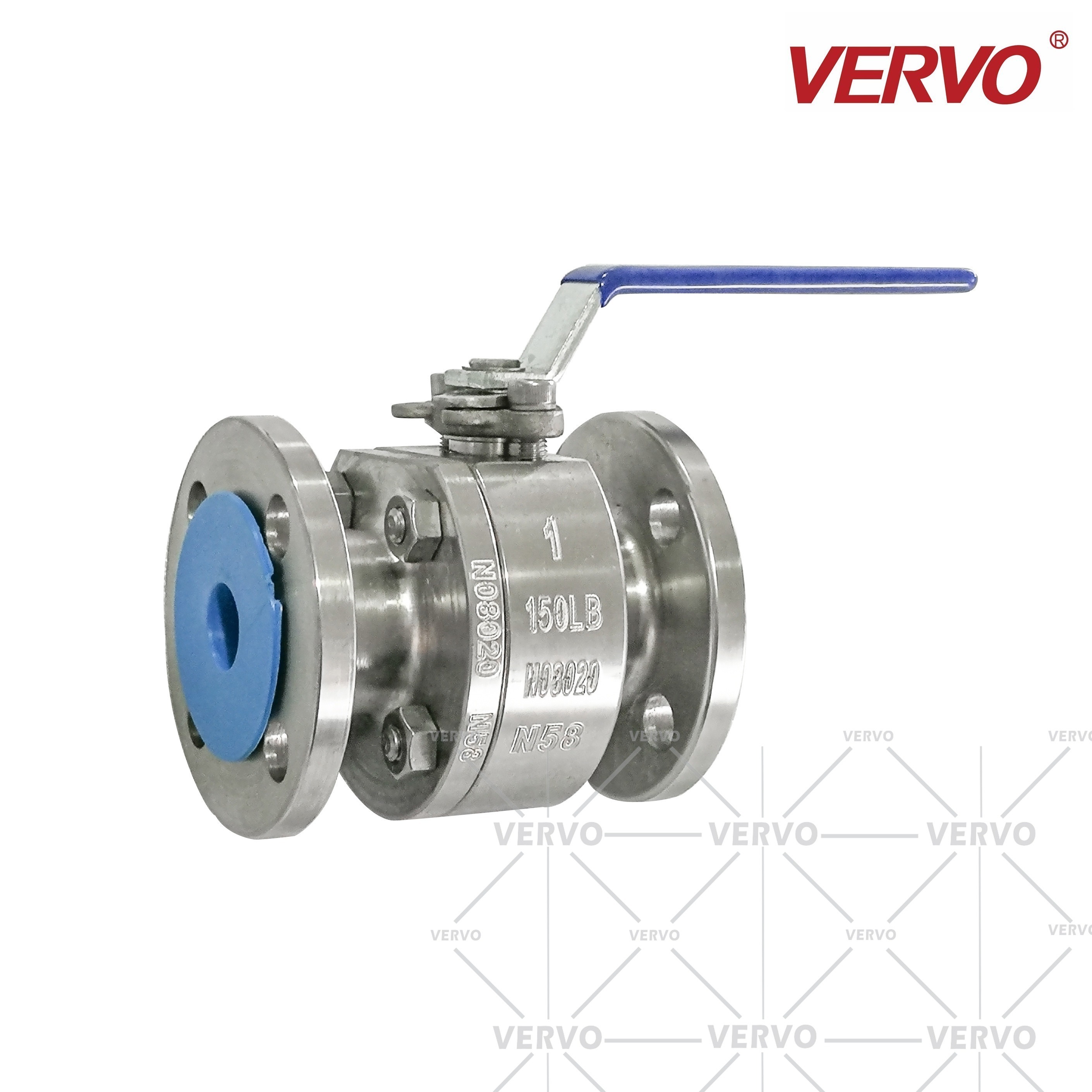

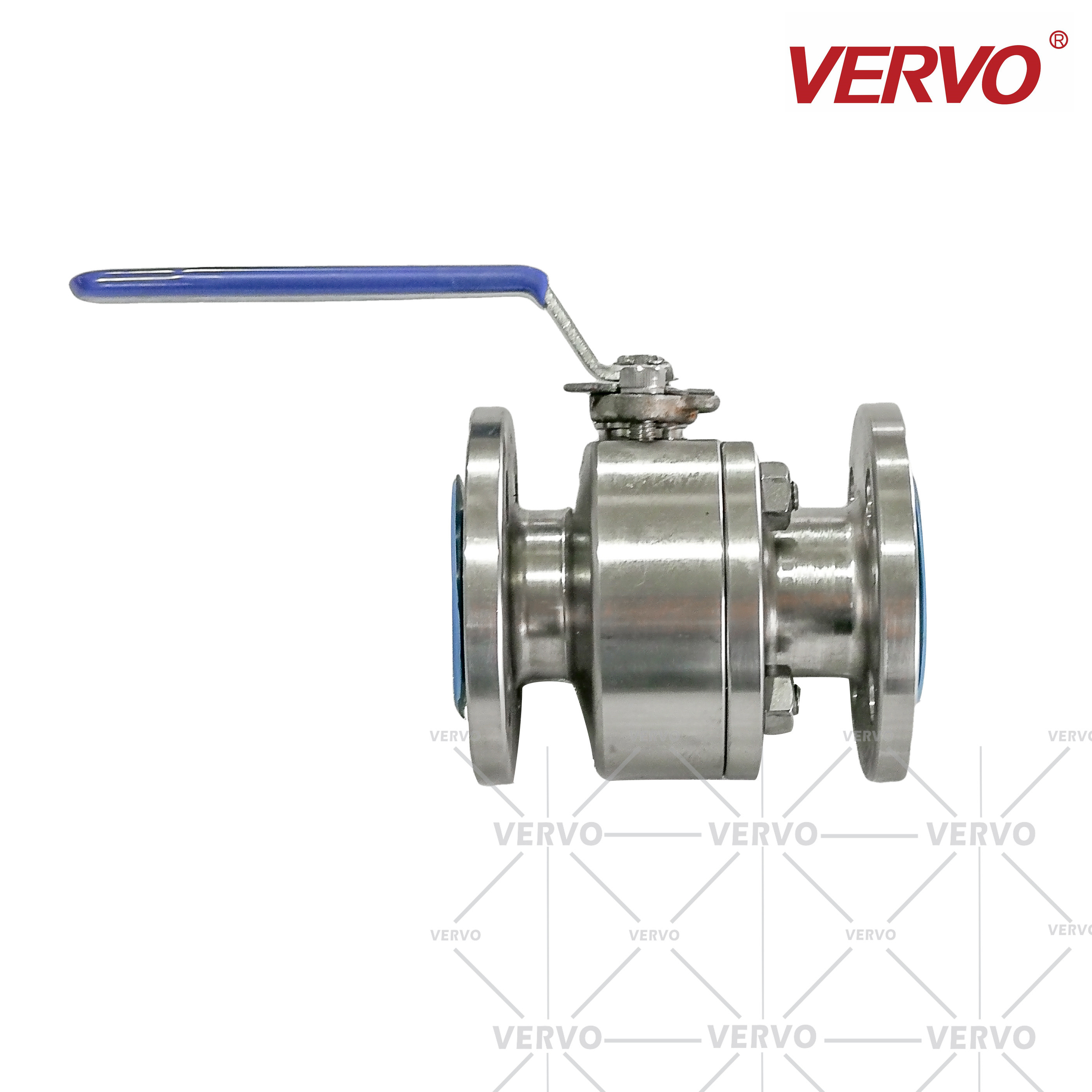

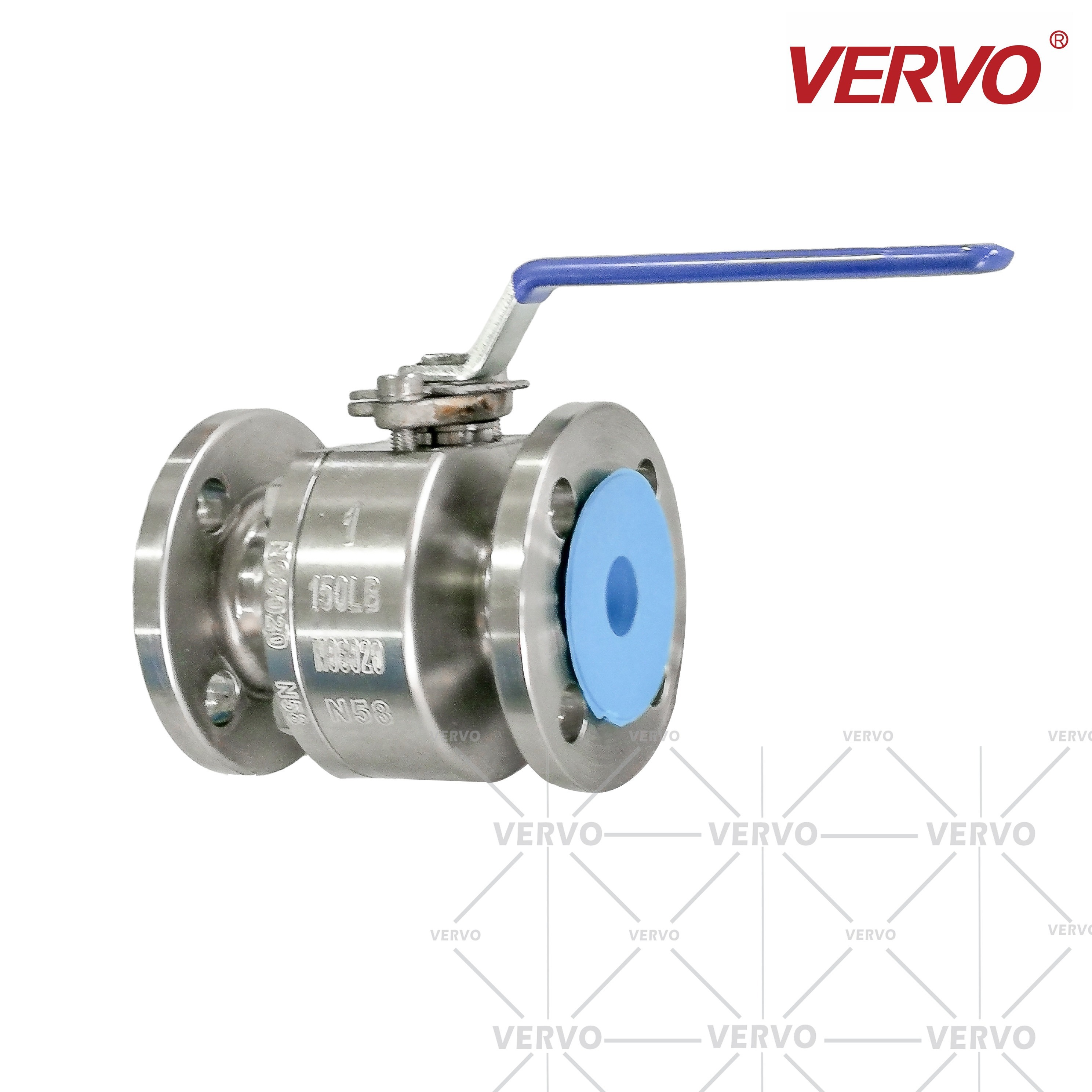

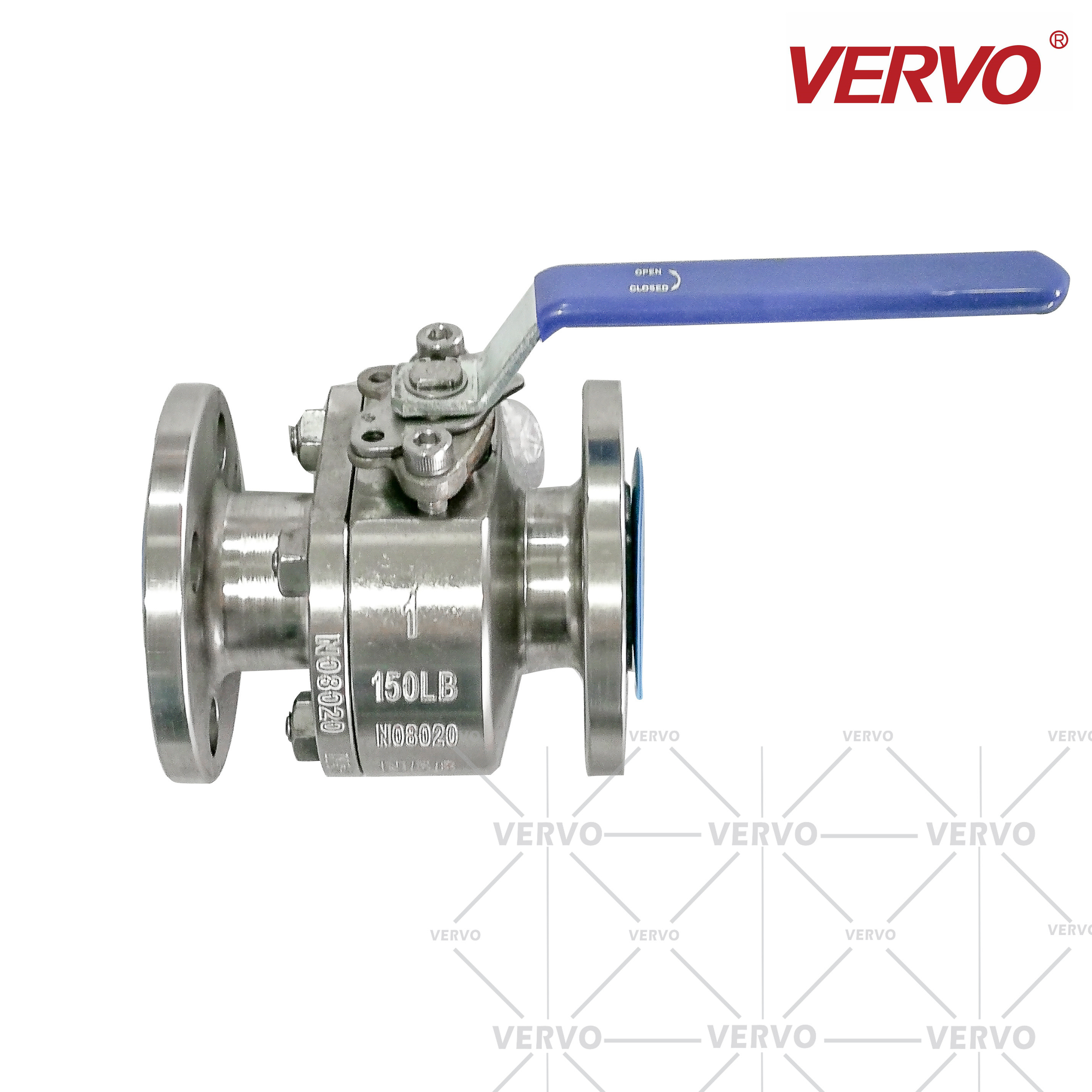

DN25 Alloy Forged Steel Ball Valve Two Piece Soft Seal Flange Alloy Steel Material 2 Piece Type API608
|Body material||Alloy Steel UNS N8020,N8020|
|Feature||Easy disassembly and assembly|
Sizes NPS 1/2 to NPS 4
Class 150 to Class 2500
Available Forging (A105, A182 F304, F304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5)
Full or Reduced Bore
RF, RTJ, or BW
Anti-Blow out Stem
Cryogenic or High Temperature, Extended Stem
Design & manufacture according to API 6D, API 608, ISO 17292
Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 6D, API 598
Fire safe design according to API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848
Pressure-temperature rating: ASME B16.34,and the ASME as well as customers' requirements as applicable.
Gear, Electric, Cylinder, Pneumatic, Hydraulic, Lever, Chain wheels
The QC is responsible for all aspects of quality, from receiving of material to control of machining, welding, nondestructive examination, assembly, pressure testing, cleaning, painting, and packaging.
Each valve is pressure tested in accordance with API 6D, API 598, or special customers' requirements as applicable.
