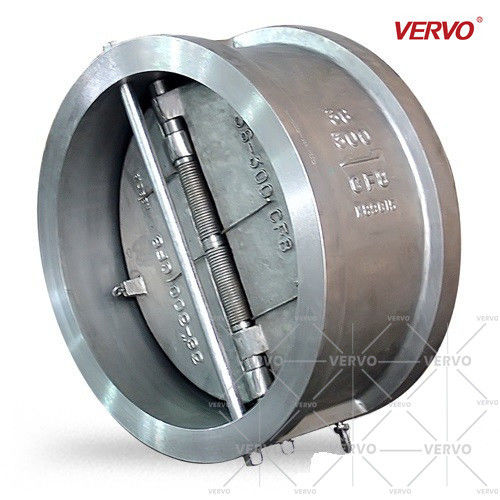

1400mm 56 Inch Wafer Dual Plate Check Valve Class 600 Cast Steel Non Return CF8

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: H71W-600LB-56INCH
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API594 Body Material:: Casting Steel Stainless Steel A351 CF8
Nominal Diameter: 56Inch/1400mm/DN1400 Pressure: 600LB
End Connection.: Wafer Type End Face To Face: API594
Test And Inspection: API 598
High Light:

Wafer Dual Plate Check Valve class 600

,

1400mm 56 Inch Wafer Dual Plate Check Valve

,

double check valve non return valve nrv

1400mm Dual Plate Check Valve 56Inch Cast Steel Check Valve 600Lb Wafer Non Return CF8 Dual Plate Wafer Check Valve

Retainerless design valves are standard in VERVO dual plate check valves; we also can provide valves with retainer plug upon request

Item Dual Plate Wafer Check Valve
Certification ISO9001,ISO14001,ISO18001,TS,CE,API
Brand VERVO
Model number H71W-600LB-56INCH
Port Size 56inch/DN1400
Structure type Retainerless Design Dual Plate Wafer Check Valve
Pressure 600LB
Temperature -46-325
Connection form Wafer Type End
Material Casting Steel Stainless Steel A351 CF8
Feature Easy disassembly



Retainerless design

1400mm 56 Inch Wafer Dual Plate Check Valve Class 600 Cast Steel Non Return CF8 0

VERVO dual plate check valves are offered as retainerless in wafer, lug, flanged, hub end, butt-weld end and thread end body style.



Certificate

1400mm 56 Inch Wafer Dual Plate Check Valve Class 600 Cast Steel Non Return CF8 1

All product registered by LR’s in accordance with CE/PED.

API 594 and API 6D certificate issued by American Petroleum Institute.



Inherently fire safe design

1400mm 56 Inch Wafer Dual Plate Check Valve Class 600 Cast Steel Non Return CF8 1

All VERVO check valves are inherently fire safe due to the valve design, material and construction. In case of fire, both resilient seat and metal seat valves provide metal to metal sealing performance.



Light weight and reduced size

1400mm 56 Inch Wafer Dual Plate Check Valve Class 600 Cast Steel Non Return CF8 1

Installation costs are greatly reduced by VERVO’s light weight and minimal space requirements. The compact design minimizes the distance between flanges and is easily installed between all flanges.



Horizontal/Vertical installation

1400mm 56 Inch Wafer Dual Plate Check Valve Class 600 Cast Steel Non Return CF8 1

Unlike most traditional swing check valves, VERVO check valves are ideal for both horizontal and vertical pipeline installation.

1400mm 56 Inch Wafer Dual Plate Check Valve Class 600 Cast Steel Non Return CF8 5

STANDARD

Design & Manufacture API 594 ,ASME B16.34,API 6D
Face-to-face API 594, ASME B16.10
End Dimension ASME B16.5 (RF) ASME B16.47 (RF),MSS SP-44 (NPS 22 Only)
Test & inspection API 598, API 6D, ISO 5208



TYPICAL MATERIAL

Body,Disc

A216 WCB, WCC, A217 WC6,WC9

A351 CF3, CF8, CF3M, CF8M,

A995 4A, 5A,Monel, Inconel, Hastelloy



Seat



FKM, HNBR, EPDM,

Pin A276 410, 304, 316,
Spring Inconel x750



1400mm 56 Inch Wafer Dual Plate Check Valve Class 600 Cast Steel Non Return CF8 6

ASME CLASS 600 (PN 100)   ASME CLASS 900 (PN 150)
Size
in/mm
D L Weight (lb/kg) ` Size
in/mm
D L Weight (lb/kg)
WAFER / LUG WAFER WAFER / LUG WAFER
2
50
2
50
2.36
60
9
4
2
50
2
50
2.76
70
18
8
2 ½
65
2 ½
65
2.64
67
11
5
2 ½
65
2 ½
65
3.27
83
24
11
3
80
3
80
2.87
73
18
8
3
80
3
80
3.27
83
31
14
4
100
4
100
3.11
79
24
11
4
100
4
100
4
102
44
20
6
150
6
150
5.35
136
57
26
6
150
6
150
6.26
159
93
42
8
200
8
200
6.5
165
121
55
8
200
8
200
8.11
206
185
84
10
250
10
250
8.39
213
209
95
10
250
10
250
9.5
241
319
145
12
300
12
300
9
229
308
140
12
300
12
300
11.5
292
485
220
14
350
14
350
10.75
273
491
223
14
350
14
350
14
356
770
350
16
400
16
400
12
305
793
360
16
400
16
400
15.12
384
1035
470
18
450
18
450
14.25
362
870
395
18
450
18
450
17.76
451
1333
605
20
500
20
500
14.5
368
1141
518
20
500
20
500
17.76
451
1806
820
24
600
24
600
17.24
438
1841
836
24
600
24
600
19.5
495
2313
1050
30
750
30
750
19.88
505
2423
1100

36
900
36
900
27.6
701
3524
1600
(1)The dimension and weights are for reference only and subject to change without notice.
(2)For more dimensional information, please contact our sales representative.



FAQ

1400mm 56 Inch Wafer Dual Plate Check Valve Class 600 Cast Steel Non Return CF8 7

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock
