| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | H41-CL2500-4INCH |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | ASME B16.32 | Body Material:: | A105N |
|---|---|---|---|
| Nominal Diameter: | 1 | Pressure: | 800 LB |
| End Connection.: | SW | Face To Face: | Factory STD |
| Test And Inspection: | API 598 | ||
| High Light: | 4 Inch Tilting Disc Check Valve A105,Tilting Disc Check Valve A105 Class 2500,check valve asme b16.34 |
||

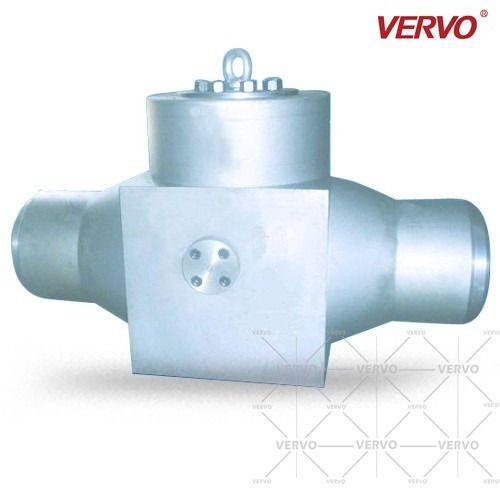

2500LB DN100 PSB Tilting Disc Check Valve PN420 SS API594 Full Bore Cast Steel Check Valve Non Return Valve
| Item | PSB Tilting Disc Check Valve |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Brand | VERVO |
| Model number | H41-PN420-DN100 |
| Port Size | DN100/4INCH |
| Structure type | Tilting Disc Check Valve |
| Pressure | PN420 |
| Temperature | -46-325 DEGREE |
| Connection form | BW/Butt Welding/Butt Welded |
| Material | Casting Steel Carbon Steel A216 WCB |
| Feature | Easy disassembly |
Product Range
Performance Specification For check valve
| Technical Specification | ANSI Class (Lbs) | |||||||
| 150 | 300 | 400 | 600 | 900 | 1500 | 2500 | ||
|
Test Pressure (MPA) |
Shell Test | 2.94 | 7.67 | 10.2 | 15.3 | 22.98 | 38.3 | 63.83 |
| Seal Test | 2.16 | 5.62 | 7.48 | 11.23 | 16.85 | 28.08 | 46.81 | |
| Air Test | / | |||||||
As usual, class 150 to class 900 check valves are usually used to bolted cover, class 1500 to class 2500 check valves are usually used pressure seal cover design.
Besides the general check valves, our company also can make cryogenic check valve.
Keywords of PSB Tilting Disc Check Valve Pn420 DN100 A216 Wcb API94 Full Bore Cast Steel Check Valve Nozzle Check Valve
