| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | Q61F-DN50-800LB |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API608 | Body Material:: | A105N |
|---|---|---|---|
| Nominal Diameter: | 2 Inch DN50 | Pressure: | CL800 |
| End Connection.: | SW | Face To Face: | Factory Standard |
| Test And Inspection: | API 598 | ||
| High Light: | 800LB Full Bore And Reduced Bore Ball Valve,Reduced Bore Ball Valve ASTM A105N,class 800lb ball valve |
||

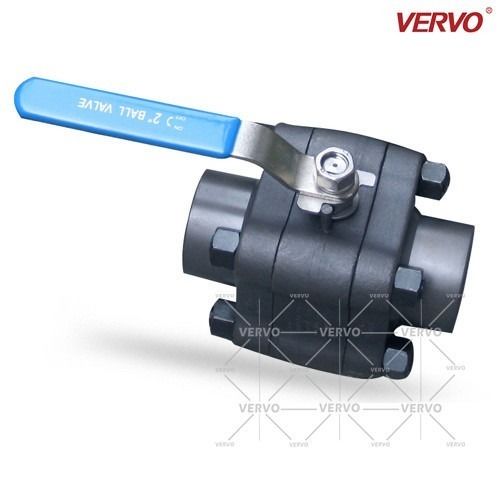

DN50 3pcs Ball Valve 2 Inch 800LB SW ASTM A105N Forging Steel Valve Socket Weld Ball Valve API608 Full Bore And Reduce
Quick Detail
FEATURES AND BENEFITS
| ITEM | PARTS | MATERIAL | |
| 1 | BODY | A182 F304/F316 | ASTM A105 |
| 2 | CAP | A182 F304/F316 | |
| 3 | BALL | A182 F304/F316 | |
| 4 | SEAT | RPTFE/PEEK / DELRIN | |
| 5 | SEAL | RTFE | |
| 6 | STEM | ASTM A276-304/316 | |
| 7 | THRUST WASHER | PTFE / CTFE | |
| 8 | PACKING | ||
| 9 | GLAND RING | AISI 304 | |
| 10 | BELLEVILLE WASHER | AISI 301 | |
| 11 | STEM NUT | AISI 304 | |
| 12 | LOCKING WASHER | ||
| 13 | HANDLE | STAINLESS STEEL | |
| 14 | HANDLE NUT | AISI 304 | |
| 15 | SPRING WASHER | ||
| 16 | BOLT | ||
| 17 | HANDLE SLEEVE | PVC | |
| 18 | LOCKING DEVICE | STAINLESS STEEL | |
| DN | d | L | L1 | H | H1 | H2 | H3 | W | S | D1 | M | P | Torque (N-M) |
| 6 | 11.6 | 74.8 | 30.6 | 61.2 | 45.8 | 31.5 | 15.3 | 114.5 | 5.7 | 36 | M5 | 3/8"~24UNF | 8.8 |
| 10 | 12.7 | 74.8 | 30.6 | 61.2 | 45.8 | 31.5 | 15.3 | 114.5 | 5.7 | 36 | M5 | 3/8"~24UNF | 8.8 |
| 15 | 14.3 | 74.8 | 30.6 | 61.2 | 45.8 | 31.5 | 15.3 | 114.5 | 5.7 | 36 | M5 | 3/8"~24UNF | 8.8 |
| 20 | 20.7 | 80 | 37.8 | 81.5 | 55.1 | 39.8 | 16.8 | 147 | 7.5 | 42 | M5 | 7/16"~20UNF | 16.1 |
| 25 | 25.4 | 93 | 47 | 86.2 | 60 | 44.4 | 17 | 147 | 7.5 | 42 | M5 | 7/16"~20UNF | 16.1 |
| 32 | 31.5 | 109.5 | 54.3 | 96.3 | 73.6 | 45.5 | 29.6 | 178 | 8.6 | 50 | M6 | 9/16"~18UNF | 32.5 |
| 40 | 38 | 120 | 62.3 | 102.4 | 79.3 | 57.5 | 21.8 | 228 | 14 | 50 | M6 | M18X1.5 | 45.5 |
| 50 | 50.8 | 140 | 78.8 | 112.9 | 89.8 | 68 | 21.8 | 228 | 14 | 50 | M6 | M18X1.5 | 52 |
We are one of the leading manufacturers in china to supply quality valve solutions for oil, gas, refinery, chemistry, marine, power plant, pipeline transmit industries etc.; We provide full range of industrial valves products, include Gate valve, Globe valve, Check valve, Ball valve, Plug valve, Butterfly valve, strainer etc. of different types ,sizes and material, Available standard include API, BS,JIS, EN, DIN, GOST etc.
All our branch factories have strict Quality control system as per ISO 9001, API 600, API 6D , API Q1, CE/PED etc. so our products are designed and manufactured strictly as per client's requirements and latest manufacturing specification of international standards organization
