| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | Q61F-1500LB-DN15 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API608 | Body Material:: | A105N |
|---|---|---|---|
| Nominal Diameter: | 1/2 Inch,DN15 | Pressure: | CL1500 |
| End Connection.: | SW | Face To Face: | FACTORY STANDARD |
| Test And Inspection: | API 598 |

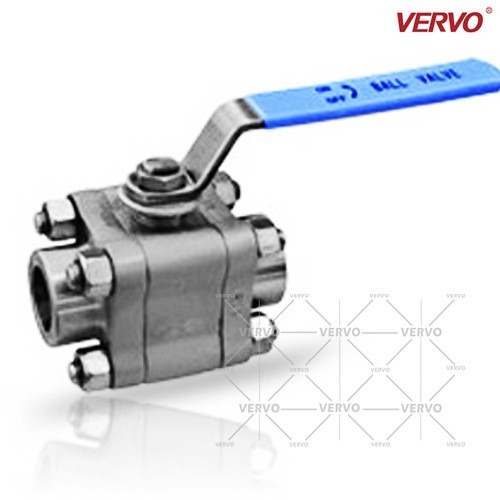

Dn15 3 Piece High Pressure Ball Valve Forged Steel A105n 1/2 Inch 1500lb Sw Lever Metal Seated Floating Ball Valve
Quick Detail
VERVO floating ball valves are offered in 2 PC side entry, 3 PC side entry or welded body design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO floating ball valves are manufactured according to API 6D or API 608 Design and fire tested per API 6FA and API 607 Standard.
| Main Material | Can ensure us impose reliable control in metal material like casting and forging. |
| Standard | DIN/ ANSI /BS/ JIS /CNS |
| Color | As Custom |
| Main Market | Southeast Asia,The Middle Eas,North Africa,South America |
| Certificate | ISO 9001, API 600, API 6D , API Q1, CE/PED etc |
| Advantage | We are one of the leading manufacturers in china to supply quality valve solutions for oil, gas, refinery, chemistry, marine, power plant, pipeline transmit industries etc.; |
| Application |
Industry,electric power,petrochemistry,coal gas channel etc. |
DESIGN STANDARD
Design & manufacture according to API 6D, API 608, ISO 17292
Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 6D, API 598
Fire safe design according to API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848
| CLASS 800LB/1500LB | |||||||
| SIZE | L | D | S | W | H | Weght kg) | |
| DN(mm) | NPS (in) | ||||||
| 15 | 1/2'' | 92 | 125 | 21.8 | 141 | 66 | 1.7 |
| 20 | 3/4'' | 112 | 17 | 27.2 | 141 | 72 | 2.7 |
| 25 | 1'' | 126 | 24 | 339 | 198 | 100 | 4.7 |
| 40 | 1 1/2'' | 152 | 37 | 438 | 239 | 112 | 9.5 |
| 50 | 2'' | 176 | 49 | 61.2 | 239 | 122 | 145 |
| CLASS 800LB/1500LB(with 100mmpup nipples on both ends) | |||||||
| SIZE | L | D | S | W | H | Weght kg) | |
| DN(mm) | NPS (in) | ||||||
| 15 | 1/2'' | 92 | 100 | 12.5 | 141 | 66 | 2 |
| 20 | 3/4'' | 112 | 100 | 17 | 141 | 72 | 33 |
| 25 | 1'' | 126 | 100 | 24 | 198 | 100 | 5.5 |
| 40 | 1 1/2'' | 152 | 100 | 37 | 239 | 112 | 11 |
| 50 | 2'' | 176 | 100 | 49 | 239 | 122 | 17.5 |
