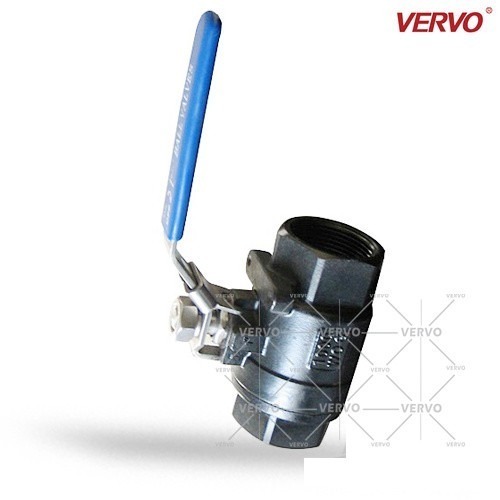

Dn20 Hex 3/4 Inch 2000 PSI Floating Ball Valve Carbon Steel 2 Piece 2pc

2000 PSI Ball Valve:

• Features:

• ● Mediums: Water, Oil & Gas. (WOG)
• ● Seats & Seals: Teflon (PTFE)
• ● Threads: Female NPT (National Pipe Thread)
• ● Full Port: Full Port Ball Valve
• ● Handle: Blow-Out Proof
• ● Handle Locking Mechanism: handle equiped with locking device (Re-movable)

• Performance Specifications:

• ● Pressure Rating: 2000 PSI

• ●Temperature: -13⁰F to 302⁰F (-25°C to 150°C)

• ● Shell Test: 20MPa

• ● Seat Test: 0.6~0.8Mpa

General Characteristics:

• ● Designed for high pressure applications, these valves have double the pressure rating than our standard offerings.
• ● The Valve Body is Heavier, longer and more robust than other 2-Piece ball valves.
• ● Although these valves are over-qualified, they can be used in everyday applications in place of the standard options.

Material List Chart:

• ● Valve Body: Stainless Steel 316 (CF8M)
• ● Seats and Seals: The Seal Seat is composed of Teflon (PTFE) which makes this Robust Valve corrosion resistant,Heat & Chemical resistant.
• ● Compatibility: Suitable to be used with any substance compatible with Stainless Steel and Teflon (PTFE).
• ● All wetted parts of the valve that touch the product being transferred are PTFE (Teflon) and 316 Stainless steel (CF8M).

● General Dimensions:

• ● The valve body is heavier, longer and more robust that the standard 2 piece Ball valve.
• ● The size of the thread determines the size of the ball valve needed. (A 3" Thread will need a 3" ball valve and so forth.)
• ● These threaded ball valves don't require any tools to install. (The Female NPT Thread of the valve will screw directly onto a Male NPT Thread)

•

• Design Data:

• ● Design Standard: ASME B16.34
• ● Nominal Diameter: DN8-DN50(1/4”~2”)
• ● End Connections: DIN259/2999,ISO228/1&ISO7/1
• ● Threads: ASME B1.20.1,BS21
• ● Inspection & Testing: According to API 598, EN12266-1
