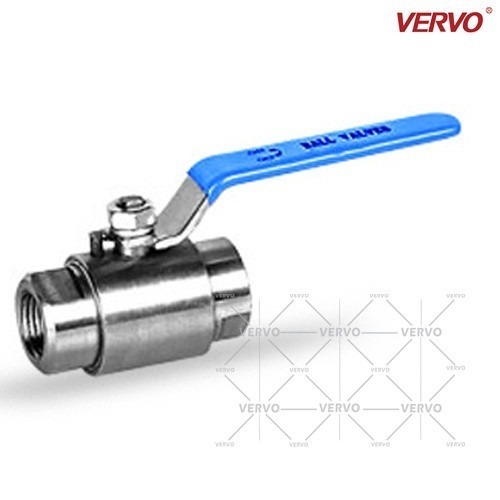

Dn25 Hp Ball Valves 1inch 300lb Npt Lever Threaded Ball Valve Stainless Steel Floating Ball Valve 2 Piece Type

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: Q61F-DN25-300LB
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API608 Body Material:: Stainless Steel
Nominal Diameter: 1 Inch DN25 Pressure: CL300
End Connection.: FNPT,NPT,THREAD Face To Face: Factory Standard
Test And Inspection: API 598

Dn25 Hp Ball Valves 1inch 300lb Npt Lever Threaded Ball Valve Stainless Steel Floating Ball Valve 2 Piece Type



Item Valve
Type Ball Valve
Certification TS,CE,ISO9001,ISO18001,ISO14001
Brand VERVO
Model number Q11F-300LB
Power Manual
Port Size 1"
Structure Ball,Floating
Pressure High perssure
Temperature -46~200
Medium Weak acid base medium
Connection form Screw thread
Body material Stainless steel
Seal material Gasket



VERVO floating ball valves are offered in 2 PC side entry, 3 PC side entry or welded body design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO floating ball valves are manufactured according to API 6D or API 608 Design and fire tested per API 6FA and API 607 Standard.



DESIGN STANDARD

Dn25 Hp Ball Valves 1inch 300lb Npt Lever Threaded Ball Valve Stainless Steel Floating Ball Valve 2 Piece Type 0

Design & manufacture according to API 6D, API 608, ISO 17292

Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard

End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)

Test & inspection according to API 6D, API 598

Fire safe design according to API 6FA, API 607

Also available per NACE MR-0175, NACE MR-0103, ISO 15848.



INTRODUCTION

Dn25 Hp Ball Valves 1inch 300lb Npt Lever Threaded Ball Valve Stainless Steel Floating Ball Valve 2 Piece Type 1

A ball valve is a valve with a spherical disc, the part of the valve which controls the flow through it. The sphere has a hole, or port, through the middle so that when the port is in line with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked.



BLOWOUT PROOF STEM

Dn25 Hp Ball Valves 1inch 300lb Npt Lever Threaded Ball Valve Stainless Steel Floating Ball Valve 2 Piece Type 1

The valve stem is made with a shoulder at the bottom end. It’s securely retained by the valve body, to avoid that the stem, under certain operating conditions, accidentally blows out. Other designs are available on request.

Because the ball and stem in a ball valve are suspended on non-metallic parts, i.e. the seat seal and stem seal, there is a possibility a static charge may build up on the stem-ball, a mechanical (antistatic metal spring and ball) is introduced in the design to maintain the metal-to-metal contact between the rotating ball/stem and the valve body which will ground any charges to the valve body.



FIRE SAFE DESIGN

Dn25 Hp Ball Valves 1inch 300lb Npt Lever Threaded Ball Valve Stainless Steel Floating Ball Valve 2 Piece Type 1

During a fire, non-metallic soft material will be burnt, subsequently seat leakage or external leakage may occur and cause the fire to spread or contaminate the environment. VERVO ball valves are fire tested in accordance with API 6FA or API 607 witnessed and certified by the third part lab








Dn25 Hp Ball Valves 1inch 300lb Npt Lever Threaded Ball Valve Stainless Steel Floating Ball Valve 2 Piece Type 4

Dn25 Hp Ball Valves 1inch 300lb Npt Lever Threaded Ball Valve Stainless Steel Floating Ball Valve 2 Piece Type 5

Dn25 Hp Ball Valves 1inch 300lb Npt Lever Threaded Ball Valve Stainless Steel Floating Ball Valve 2 Piece Type 6



Keywords of Dn25 Hp Ball Valves 1inch 300lb Npt Lever Threaded Ball Valve Stainless Steel Floating Ball Valve 2 Piece Type

Dn25 Hp Ball Valves 1inch 300lb Npt Lever Threaded Ball Valve Stainless Steel Floating Ball Valve 2 Piece Type 7

SS Floating Ball Valve, Floating Ball Valve, 300LB Ball Valve, 1 Inch Ball Valve, Thread Ball Valve,DN25 Ball Valve,Soft Seated Ball Valve,Soft Ball Valve,Metal to Metal Seat Ball Valve,API608 Ball Valve
