Home ProductsSleeved Plug Valve300LB Jacket Plug Valve API598 Flanged Plug Valve Extension Stem Jacket 6 Inch Full Bore Sleeve Type Jacketed Plug Valve

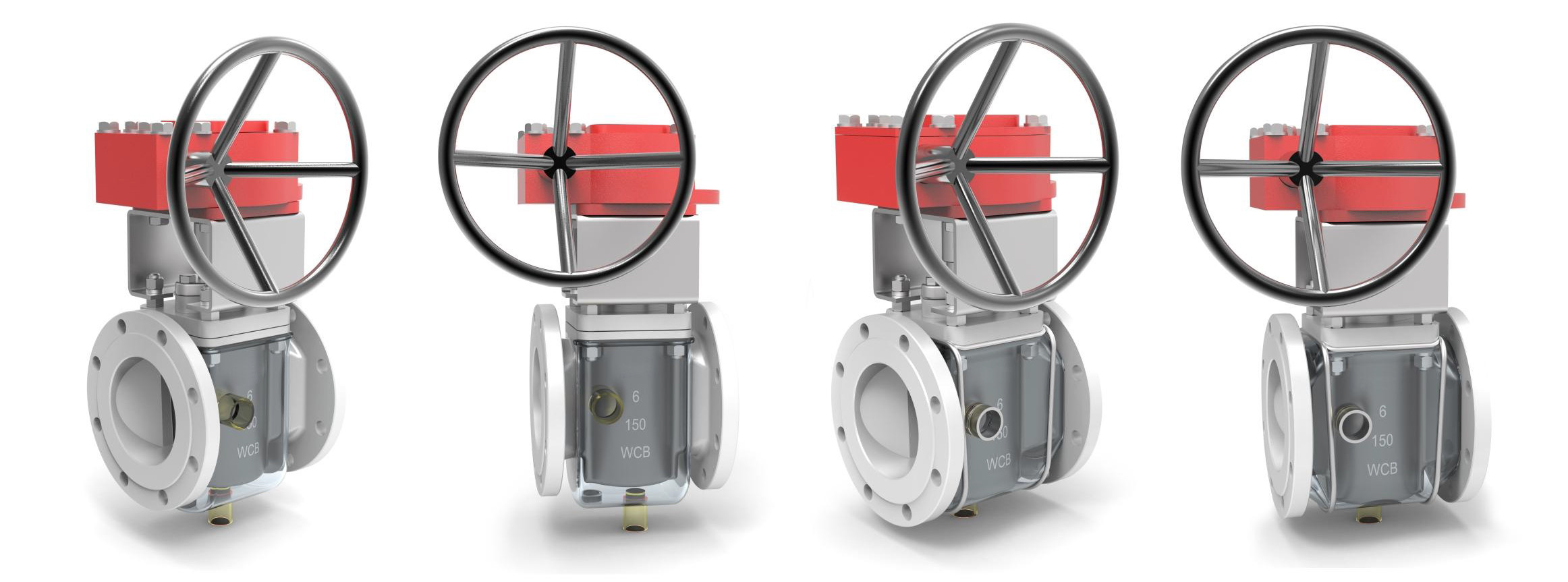

300LB Jacket Plug Valve API598 Flanged Plug Valve Extension Stem Jacket 6 Inch Full Bore Sleeve Type Jacketed Plug Valve

300LB Jacket Plug Valve API598 Flanged Plug Valve Extension Stem Jacket 6 Inch Full Bore Sleeve Type Jacketed Plug Valve
300LB Jacket Plug Valve API598 Flanged Plug Valve Extension Stem Jacket 6 Inch Full Bore Sleeve Type Jacketed Plug Valve 300LB Jacket Plug Valve API598 Flanged Plug Valve Extension Stem Jacket 6 Inch Full Bore Sleeve Type Jacketed Plug Valve
Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: X47F-PLUG VALVE
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Contact Now
Design Standard: API 599, API 6D Body Material:: Casting Steel Carbon Steel A216 WCB
Nominal Diameter: 6Inch/DN150/150MM Pressure: 300LB
End Connection.: RF Flange Face To Face: ASME B16.10
Test And Inspection: API 598
High Light:

Api 598 Flanged Plug Valve

,

Flanged Plug Valve Extension Stem 6

,

api 598 plug valve

300LB Jacket Plug Valve API598 Flanged Plug Valve Extension Stem Jacket 6 Inch Full Bore Sleeve Type Jacketed Plug Valve                                         300LB Jacket Plug Valve API598 Flanged Plug Valve Extension Stem Jacket 6 Inch Full Bore Sleeve Type Jacketed Plug Valve 0

The sleeve type of jacketed plug valve has simple structure, rapid opening and closing, small flow resistance, convenient maintenance, good sealed performance. Widely used in chemical, petroleum and other industrial piping system control.
Nominal pressure class PN 1.6-16.0, Working temperature -29°C +150°C.

  1. The product has the advantage of keeping warm and cold.
  2. It can reduce the heat loss of medium in the pipe, and transfer the high viscosity medium which will solidify in room temperature.
  3. Size range from DN15 to DN 600.
  4. Jacket plug valve can be made in 1.4308 - 1.4306 - 1.7363 - 1.4301 or GS-C25
    The materials of the parts and sizes of flanges can be reasonably configured according the actual operation condition of the requirements of the customers, so as to meet the various needs of engineering.



DN

DN15

DN20

DN25

DN32

DN40

DN50

DN65

DN80

DN100

DN125

DN150

DN200

DN250

DN300

DN350

DN400

DN450

TORQUE(N.M)

150LB

55

60

80

85

90

120

200

240

505

790

1150

2350

3350

4850

6250

9520

13550

300LB

60

65

85

95

110

130

250

360

650

1250

1850

2950

4250

5450

7850

10250

15250

600LB

65

80

100

120

140

170

280

380

920

1650

2350

3550

4850

6500

9650

12500

19500

Full Jacketed plug valve

                                                               300LB Jacket Plug Valve API598 Flanged Plug Valve Extension Stem Jacket 6 Inch Full Bore Sleeve Type Jacketed Plug Valve 1



Class NPS d L 0 c g t f N-0
150LB 3/4x1/2 13 108 98 70 43 12 1.6 4-15
1x3/4 19 117 108 79.5 51 12 1.6 4-15
1.5x1 25 127 127 98.5 73 15 1.6 4-15
2x1.5 38 165 152 120.5 92 16 1.6 4-19
3x2 51 178 190 152.5 127 19 1.6 4-19
4x3 76 203 229 190.5 157 24 1.6 8-19
6x4 102 229 279 241.5 216 26 1.6 8-22
300LB 3/4x1/2 13 140 117 82.5 43 16 1.6 4-19
1x3/4 19 152 124 89 51 18 1.6 4-19
1.5x1 25 165 156 114.5 73 21 1.6 4-22
2x1.5 38 190 165 127 92 23 1.6 8-19
3x2 51 216 210 168.5 127 29 1.6 8-22
4x3 76 283 254 200 157 32 1.6 8-22
Full Jacket-Gear box

300LB Jacket Plug Valve API598 Flanged Plug Valve Extension Stem Jacket 6 Inch Full Bore Sleeve Type Jacketed Plug Valve 2


Class NPS d L o c g t f N-0)
150LB 8X6 152 267 343 298.5 270 29   6-22+2-3/4-10UNC
10X8 203 292 406 362 324 31 1.6 10-25+2-7/8-9UNC
12X10 254 330 483 432 381 32 1.6 10-25+2-7/8-9UNC
14X12 305 356 566 476 413 35 1.6 12-29
16X14 337 686 597 540 470 37 1.6 16-29
18X16 387 762 635 578 533 40 1.6 16-32
300LB 6X4 102 305 318 270 216 37 / 12-22
8X6 152 403 381 330 270 42 / 12-25
10X8 203 419 445 387.5 324 48 / 16-29
12X10 254 457 521 451 381 51 / 16-32
14X12 305 502 584 514.5 413 54 / 20-32
16X14 337 762 648 571.5 470 58 / 20-35
18X16 387 838 711 628.5 533 61 / 24-35

Half Jacketed plug valve

                                                             300LB Jacket Plug Valve API598 Flanged Plug Valve Extension Stem Jacket 6 Inch Full Bore Sleeve Type Jacketed Plug Valve 3



Class

NPS

d

L

o

c

g

t

f

N-0

150LB

1/2

13

108

89

60.5

35

12

1.6

4-15

3/4

19

117

98

70

43

12

1.6

4-15

1

25

127

108

79.5

51

12

1.6

4-15

1 1/4

32

140

117

89

64

13

1.6

4-15

1 1/2

38

165

127

98.5

73

15

1.6

4-15

2

51

178

152

120.5

92

16

1.6

4-19

2 1/2

64

190

178

139.5

105

18

1.6

4-19

3

76

203

190

152.5

127

19

1.6

4-19

4

102

229

229

190.5

157

24

1.6

8-19

300LB

1/2

13

140

95

66.5

35

15

1.6

4-15

3/4

19

152

117

82.5

43

16

1.6

4-19

1

25

165

124

89

51

18

1.6

4-19

1 1/4

32

178

133

98.5

64

19

1.6

4-19

1 1/2

38

190

156

114.5

73

21

1.6

4-22

2

51

216

165

127

92

23

1.6

8-19

2 1/2

64

241

190

149

105

26

1.6

8-22

3

76

283

210

168.5

127

29

1.6

8-22



                                                                     Half Jacketed -Gear Box

                                                                             300LB Jacket Plug Valve API598 Flanged Plug Valve Extension Stem Jacket 6 Inch Full Bore Sleeve Type Jacketed Plug Valve 4



Class

NPS

d

L

0

c

g

t

f

N-0

150LB

4

102

229

229

190.5

157

24



8-19

5

127

254

254

216

186

24

1.6

8-22

6

152

267

279

241.5

216

26

1.6

8-22

8

203

292

343

298.5

270

29

1.6

6-22+2-3/4-10UNC

10

254

330

406

362

324

31

1.6

10-25+2-7/8-9UNC

12

305

356

483

432

381

32

1.6

10-25+2-7/8-9UNC

14

337

686

533

476

413

35

1.6

12-29

16

387

762

597

540

470

37

1.6

16-29

18

438

864

635

578

533

40

1.6

16-32

300LB

4

102

305

254

200

157

32

/

8-22

5

127

381

279

235

186

35

/

8-22

6

152

403

318

270

216

37

/

12-22

8

203

419

381

330

270

42

/

12-25

10

254

457

445

387.5

324

48

/

16-29

12

305

502

521

451

381

51

/

16-32

14

337

762

584

514.5

413

54

/

20-32

16

387

838

648

571.5

470

58

/

20-35

18

432

914

711

628.5

533

61

/

24-35
