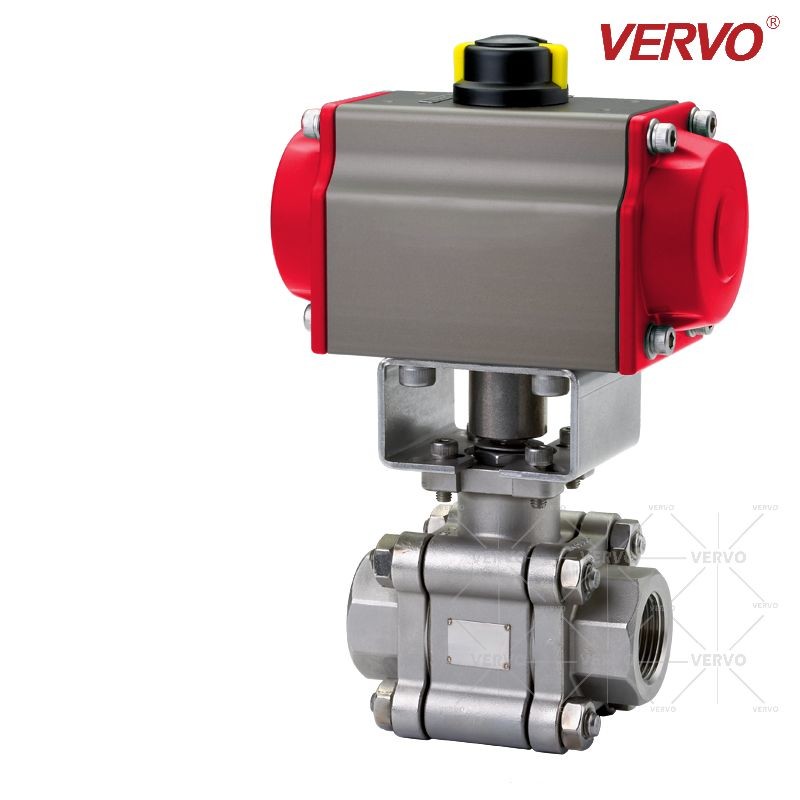

CL800 Pneumatic Actuated Floating Ball Valve 40MM Threaded

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: Q61F-DN40-800LB
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API608 Body Material:: A182 F316
Nominal Diameter: 1 1/2Inch/DN40/40MM Pressure: CL800
End Connection.: Threaded / Welded /Flanged Ends Face To Face: FACTORY STANDARD
Test And Inspection: API 598
High Light:

CL800 Floating Ball Valve

,

Floating Ball Valve 40MM

,

API608 Threaded Floating Ball Valve

Forging Steel Ball Valve Floating Type Pneumatic Actuated Ball Valve 3pc Ball Valve Metal Seated Floating Ball Valve



Design standard

CL800 Pneumatic Actuated Floating Ball Valve 40MM Threaded 0

Floating Type Metal Seat Ball Valve
Full Bore Three-Piece Threaded / Welded /Flanged Ends
ASME CLASS 600

To answer the growing demand of reliable and robust metal-seated threaded & welded ball valves, our experienced engineering teams designed this Series, meeting the requirements of the most challenging industries: Oil & Gas, Refineries, Petrochemical & Chemical Industries, Power Generation, Pulp & Paper, Mining, etc. Strengthened by our unique design and coated with our own High Velocity Oxygen Fuel technology, they are successfully used under the most extreme conditions, such as high temperature, high pressure, corrosive and/or abrasive fluids, slurries, etc.


APPLICABLE STANDARDS

CL800 Pneumatic Actuated Floating Ball Valve 40MM Threaded 0
Body Material: Standard in WCB, CF8M. Other materials are available according to requirements.
Nominal Size: 1/2” to 2” (DN15 to DN50)
Pressure Rating: ASME CLASS 600/800/1500/2500
End Connections: Threaded / Socket Weld / Butt Weld / Flanged
Temperature Range: -20~661°F (-29~350°C), higher temperature on request.
Flanged Face-to-face Dimensions: ASME B16.10 / EN 558 Series 5/14
Flanged Dimensions: ASME B16.5 / EN 1092-1
Body Pressure Test: ASME B16.34 / API 598
Seat Leakage Test: ANSI/FCI70-2 Class V in standard, Class VI in option.
Casting: MSS-SP-25 / MSS-SP-55


PRODUCT FEATURES

CL800 Pneumatic Actuated Floating Ball Valve 40MM Threaded 0
Bidirectional design (with preferred direction), adequate for any kind of backflow application.
Oversized stem design preventing any deformation from high pressure or high temperature.
Several alternatives of coating, suitable for slurries and very corrosive mediums.
ASME Class 600 wall thickness design, enabling it to withstand severe operating conditions.
Scraper seat design in option, to avoid any accumulation of fluid deposit on the ball surface.
Design with a larger ball to provide the best sealing, in order to reduce any leakage.
Inconel® spring design ensuring a tight contact between the ball and the seats.
Live-loading design eliminating any stem leakage and providing a longer life cycle.
Anti-static design.
Anti-blowout stem design.
ISO 5211 mounting pad.
Fire safe design.



Keywords of Forging Steel Ball Valve Floating Type Pneumatic Actuated Ball Valve 3pc Ball Valve Metal Seated Floating Ball Valve

CL800 Pneumatic Actuated Floating Ball Valve 40MM Threaded 3

Pneumatic Actuated Ball Valve,DN40 Ball Valve,A182 F316 Ball Valve,3 Piece Ball Valve,Soft Seal Ball Valve,Three Piece Ball Valve,Forging steel Stainless Steel Ball Valve,Metal to Metal Seat Ball Valve,API 608 Ball Valve,Pneumatic Operated Ball Valve,40MM Ball Valve, Threaded / Socket Weld / Butt Weld / Flanged Ball Valve,Full Bore Three-Piece Socket Weld Ends
