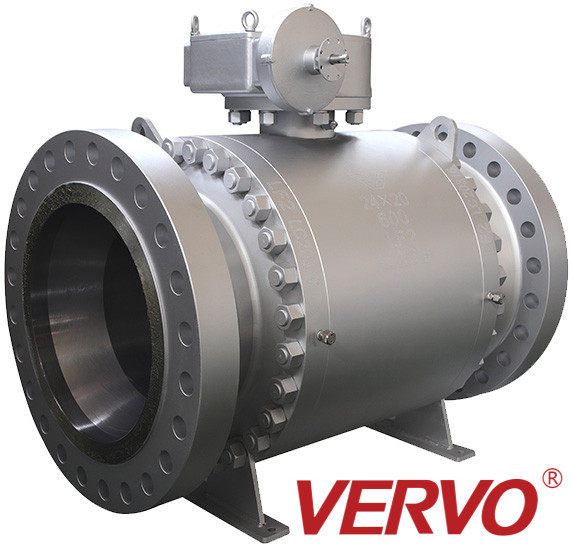

2 PC Side Entry Trunnion Mounted Type Ball Valve Welded Body Top Entry Desi

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: Q61F-DN50-150LB
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API 6D, API 608, ISO 17292 Body Material:: WCB,LCB,CF8,CF8M,CF3,CF3M,A105,LF2,F304,F316,F304L,F316L
Nominal Diameter: NPS 2"~48" Pressure: Class 150~2500
End Connection.: ASME B16.5,ASME B 16.47,ASME B 16.25 Face To Face: API 6D, ASME B16.10
Test And Inspection: API 6D, API 598
High Light:

2 PC Side Entry Trunnion Ball Valve


trunnion mounted type ball valve


Top Entry Desi ball valve


      A ball valve is a valve with a spherical disc, the part of the valve which controls the flow through it . The sphere has a hole, or port, through the middle so that when the port is in line with both ends of the valve, flow will occur . When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked .

     A trunnion ball valve has additional mechanical anchoring of the ball at the top and the bottom, suitable for larger and higher pressure services . To ensure tight sealing at low pressure, high-tensile

springs force the seats against the ball while at higher pressure, the medium pressure pushes upstream seat towards the ball .


          For trunnion mounted ball valve size NPS 6 (DN 150) and above, it comes with provisions for sealant injection on both the stem and seat while for sizes NPS 5 (DN 125) and below on body cavity . In case of failed underperformed seals, a temporary emergency seal can be achieved by injecting sealants .


      Because the ball and stem in a ball valve are suspended on non- metallic parts, i .e . the seat seal and stem seal, there is a possibility a static charge may build up on the stem- ball, a mechanical (antistatic metal spring and ball) is introduced in the design to maintain the metal - to- metal contact between the rotating ball/stem and the valve body which will ground any charges to the valve body .


      The valve stem is made with a shoulder at the bottom end . It’s securely retained by the stuffing box, to avoid that the stem, under certain operating conditions, accidentally blows out . Other designs are available on request .


Sizes NPS 2 to NPS 48
Class 150 to Class 2500
Available Forged (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5,) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2) Monel, Inconel, Hastelloy
Full or Reduced Bore
Side entry, top entry, or welded body design
Double Block & Bleed (DBB),Double Isolation & Bleed (DIB)
Emergency seat and stem injection
Anti-Static Device
Design & manufacture according to API 6D, API 608, ISO 17292
Face-to-face according to API 6D, ASME B16.10
End Connection according to ASME B16.5, ASME B16.47, MSS SP-44 (NPS 22 Only)
Test & inspection according to API 6D, API 598
Fire safe design according to API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848


Keywords of VERVO trunnion ball valves are offered in 2 PC side entry, 3 PC side entry, welded body and top entry design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials.
