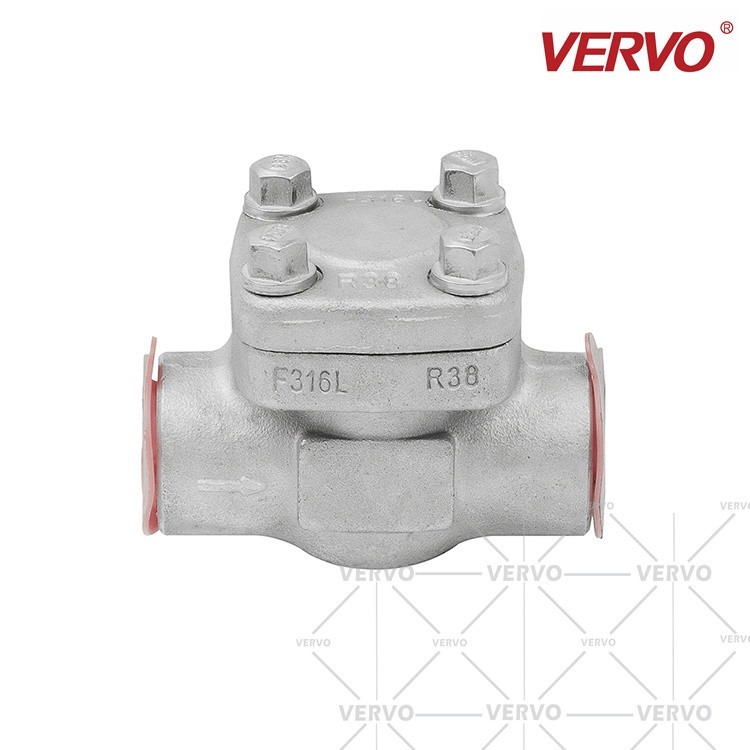

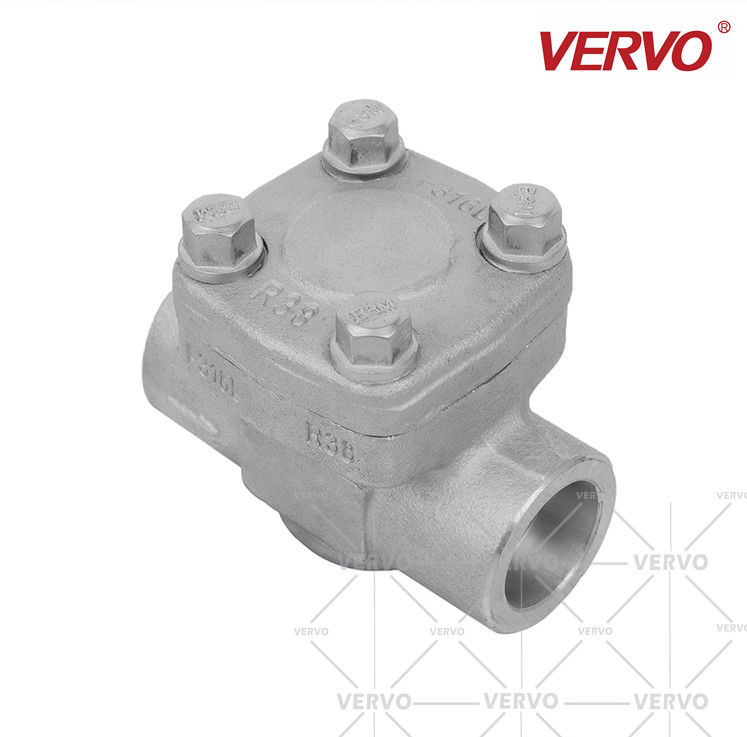

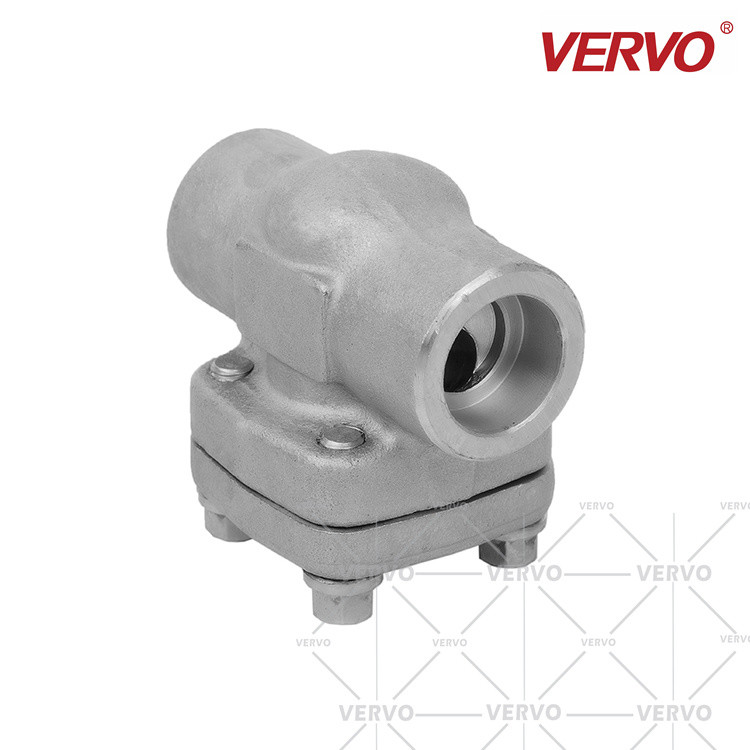

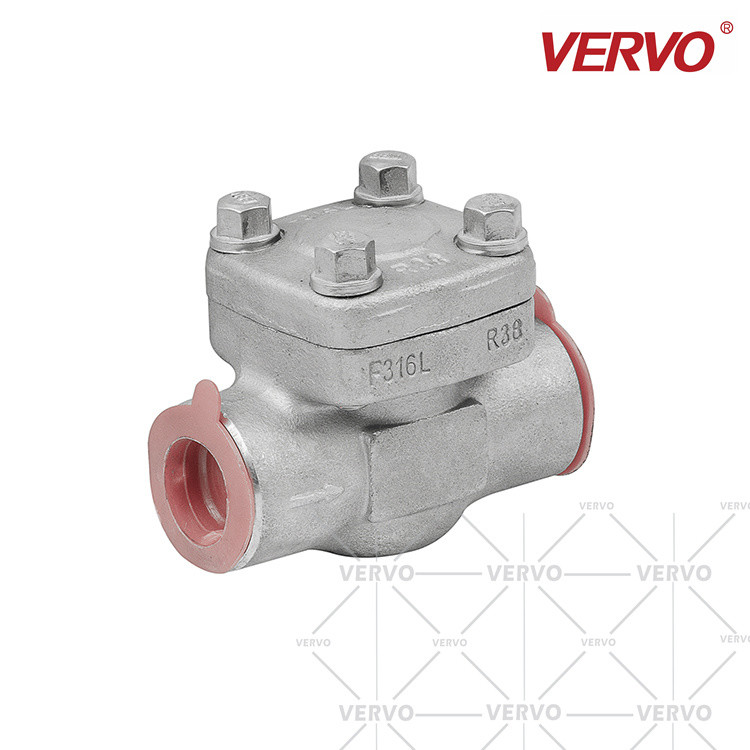

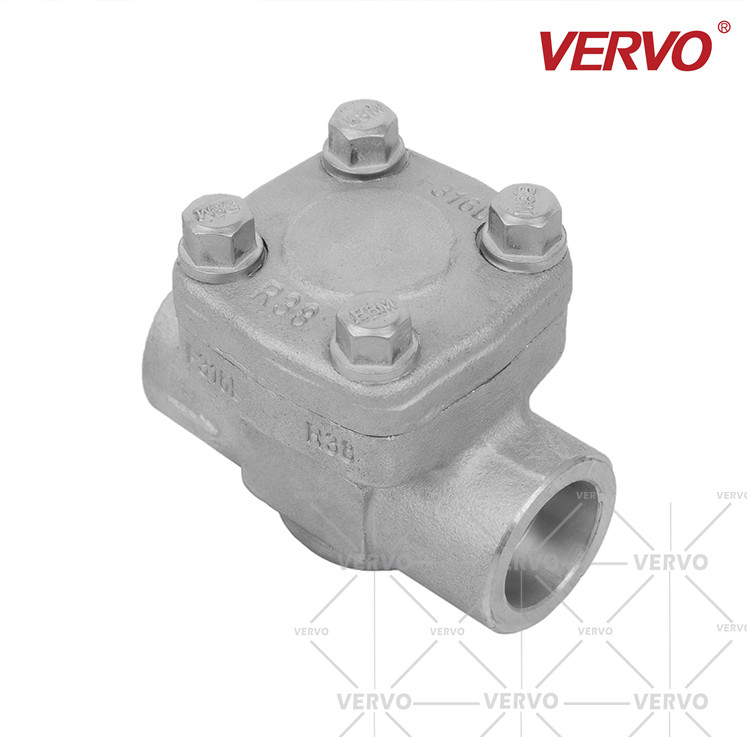

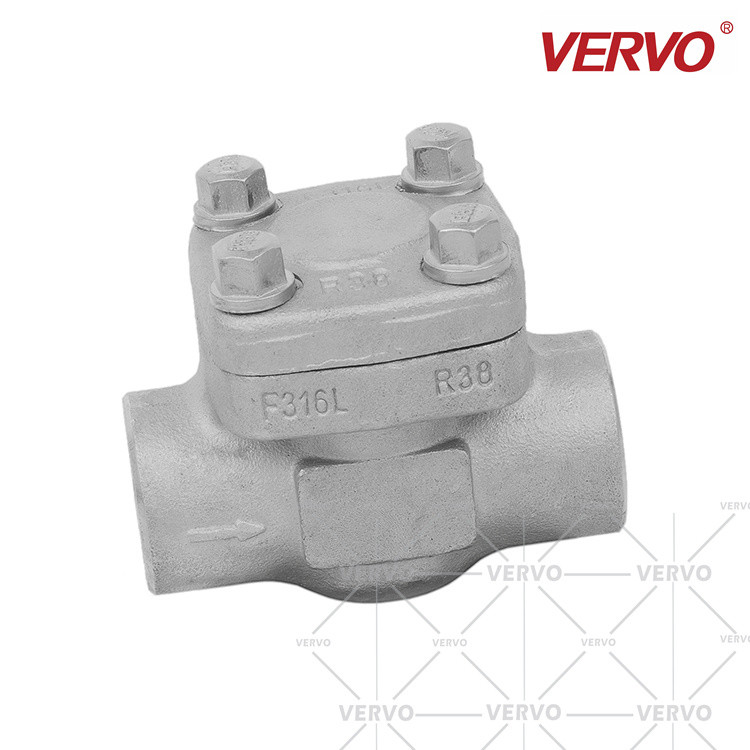

Stainless Steel Check Valve Forged Steel Check Valve Class 800 Stainless Steel 1Inch 800LB Check Valve SW API602 Valve

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: H11W-800LB-DN25
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API602/BS5352 Body Material:: Stainless Steel A182 F316L
Nominal Diameter: 1 Inch DN25 Pressure: 800LB,2000PSI
End Connection.: Socket Welding Face To Face: Factory Standard
Test And Inspection: API 598

Stainless Steel Check Valve Forged Steel Check Valve Class 800 Stainless Steel 1 Inch 800LB Check Valve SW API602 Valve



Forged Steel Check Valve

Stainless Steel Check Valve Forged Steel Check Valve Class 800 Stainless Steel 1Inch 800LB Check Valve SW API602 Valve 0

VERVO forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO forged steel check valves are manufactured according to API 602 Design.

Forged check valve is to provide with single disc. With the force of medium, the disc will automatically open or close around the fixed pin shaft. When the media stops the flow, the disc will be closed under its own force. No manual intervention is involved in the whole process.

Check valve is mainly to prevent the media reverse flow and ensure one-way flow of media channels only. It prevents accidents while a sudden loss of power in the pipeline medium such as the power equipment like pump damages, and the medium reserve flow against power source.



PRODUCT RANGE

Stainless Steel Check Valve Forged Steel Check Valve Class 800 Stainless Steel 1Inch 800LB Check Valve SW API602 Valve 0

Sizes NPS 1/2 to NPS 4

Class 800 to Class 2500



MATERIALS

Stainless Steel Check Valve Forged Steel Check Valve Class 800 Stainless Steel 1Inch 800LB Check Valve SW API602 Valve 0

Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy,C95800



DESIGN FEATURES

Stainless Steel Check Valve Forged Steel Check Valve Class 800 Stainless Steel 1Inch 800LB Check Valve SW API602 Valve 0

SW, NPT, RF or BW

Outside Screw & Yoke (OS&Y)

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet



DESIGN STANDARD

Stainless Steel Check Valve Forged Steel Check Valve Class 800 Stainless Steel 1Inch 800LB Check Valve SW API602 Valve 0

Design & manufacture according to API 602, ASME B16.34

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624



Item Check Valve
Certification ISO9001,ISO14001,ISO18001,TS,CE,API
Brand VERVO
Model number H61Y-800LB-DN25
Port Size 1'' DN25
Structure type lift /swing check valve
Pressure 800LB,2000PSI
Temperature -29-300 DEGREE
Connection form Socket Welding
Material Stainless Steel A182 F316L
Feature Easy disassembly



DIMENSIONS AND WEIGHTS (Check Valve - Swing Type )



Stainless Steel Check Valve Forged Steel Check Valve Class 800 Stainless Steel 1Inch 800LB Check Valve SW API602 Valve 5 Stainless Steel Check Valve Forged Steel Check Valve Class 800 Stainless Steel 1Inch 800LB Check Valve SW API602 Valve 6



                                               Stainless Steel Check Valve Forged Steel Check Valve Class 800 Stainless Steel 1Inch 800LB Check Valve SW API602 Valve 7

DIMENSIONS AND WEIGHTS (Check Valve - Lift Type )

CL800 Bolt Cover (BC)/ Welding Cover (WC)
Reduce Port (RP)/Full Port (FP)
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 79 92 111 120 152 172
Height H 55 55 65 80 85 105
Flow Port
Diameter
d 10.5 13.5 17 22 28 34
Weight (Kg) B.B 1.2 1.5 2.1 3.5 4.8 7.6
W.B 1.1 1.3 2 3.3 4.6 7.4
Stainless Steel Check Valve Forged Steel Check Valve Class 800 Stainless Steel 1Inch 800LB Check Valve SW API602 Valve 8
CL900 CL1500 Bolt Cover (BC)/ Welding Cover (WC)
Reduce Port (RP)/Full Port (FP)
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 92 111 120 152 172 220
Height H 55 65 80 85 105 115
Flow Port
Diameter
d 10.5 13.5 17 22 28 34
Weight (Kg) B.B 1.5 2.1 3.5 4.8 7.6 12.5
W.B 1.3 2 3.3 4.6 7.4 12.1
Stainless Steel Check Valve Forged Steel Check Valve Class 800 Stainless Steel 1Inch 800LB Check Valve SW API602 Valve 9
CL2500 Welding Cover (WC),
Reduce Port (RP)/Full Port (FP)
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size
(NPS)
R.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L   120 120 152 172 220 220
Height H   80 80 85 105 115 115
Flow Port
Diameter
d   10.5 13.5 17 22 28 34
Weight
(Kg)
W.B   3.5 3.5 4.8 7.6 12.5 12.5
The dimension and weights are for reference only and subject to change without notice.
1. For more size or dimensional information, please contact our sales representative.
