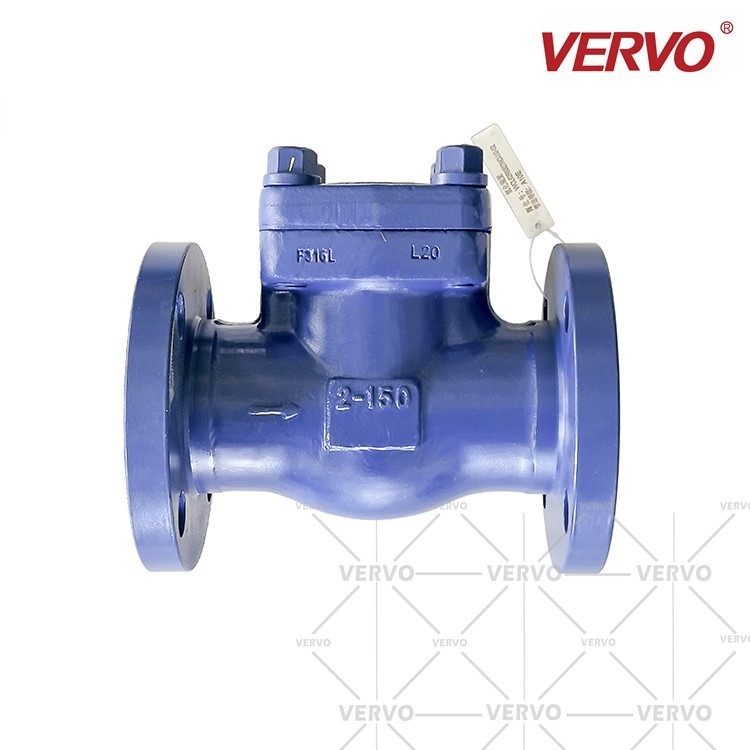

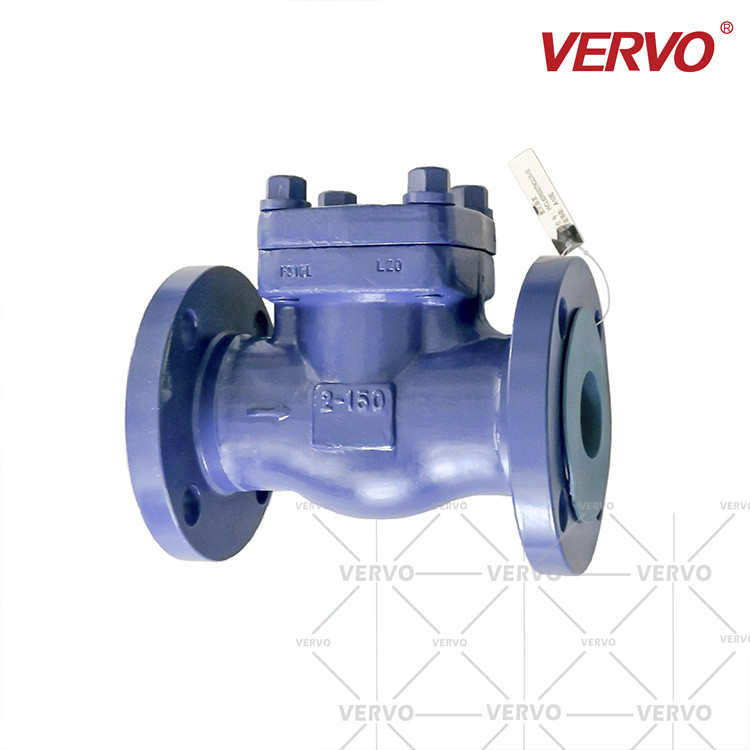

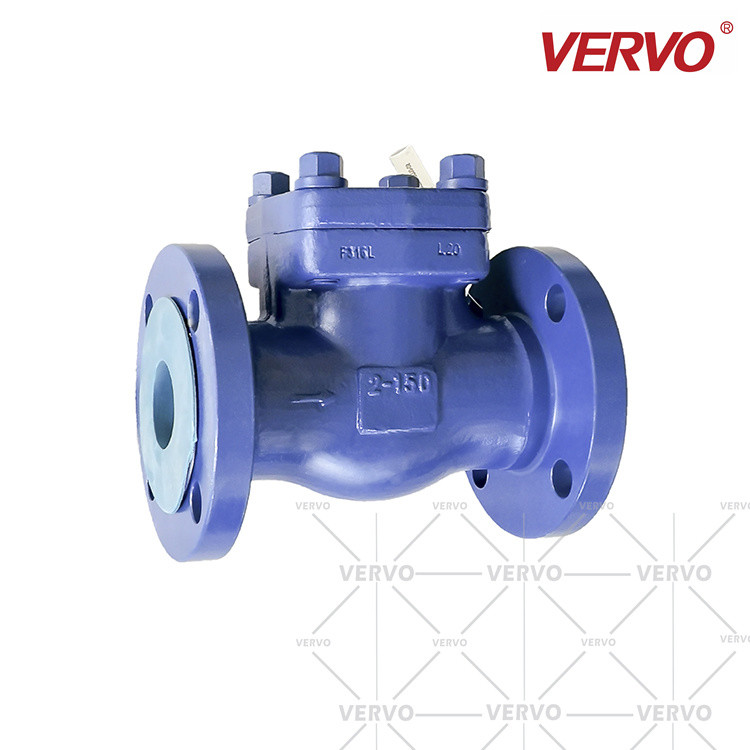

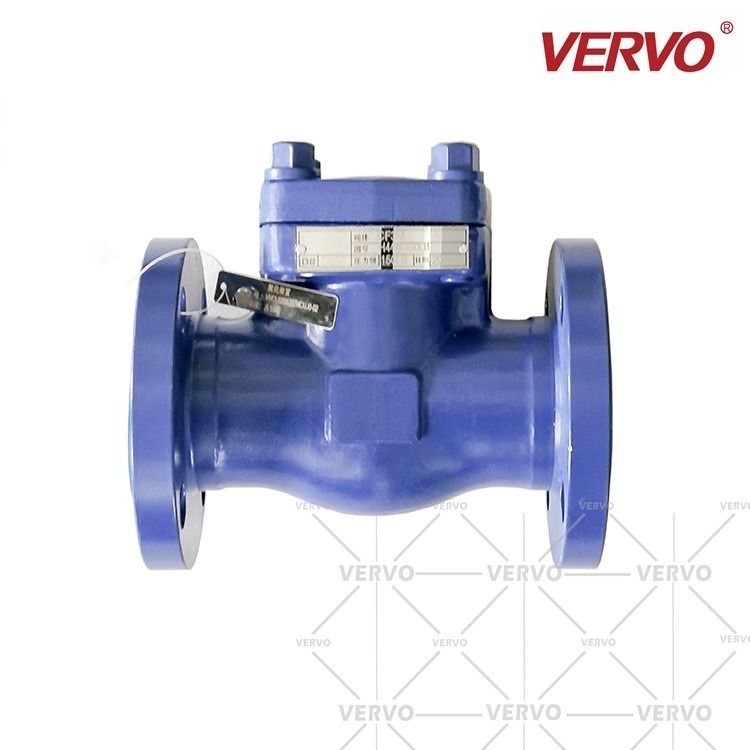

Api 602 2" DN50 Forged Steel Check Valve Class 150 NRV Vertical Lift Integral Flange Ss304

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: H41W-150LB-DN50
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API602/BS5352 Body Material:: Stainless Steel A182 F316L
Nominal Diameter: 2 Inch,DN50 Pressure: 150LB 300LB 600LB 800 LB 900LB 1500LB 2500LB
End Connection.: RF RTJ SW NPT Face To Face: ASME B16.10
Test And Inspection: API 598 Application: Oil,Water,Gas
High Light:

DN50 Forged Steel Check Valve

,

Forged Steel Check Valve class 150 NRV

,

api 602 piston check valve

NRV Vertical Lift Check Valve 2 Inch DN50 Forged Steel Check Valve 150LB Integral Flange Stainl Steel Check Valve API602

Item Stainless steel Check Valve
Type Piston Check Valve
Certification ISO9001,ISO14001,ISO18001,CE,TS,API
Brand VERVO
Model number H41W-150LB-DN50
Port Size 2'',DN50
Pressure 150LB
Temperature -29~300
Connection form Integral Raised Flange
Body material Carbon steel ASTM A182 F316
Feature Easy disassembly and assembly



Forged Steel Check Valve

Api 602 2" DN50 Forged Steel Check Valve Class 150 NRV Vertical Lift Integral Flange Ss304 0

forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. FBV forged steel check valves are manufactured according to API 602 Design.



PRODUCT RANGE

Api 602 2" DN50 Forged Steel Check Valve Class 150 NRV Vertical Lift Integral Flange Ss304 0

Sizes NPS 1/2 to NPS 4

Class 800 to Class 2500



MATERIALS

Api 602 2" DN50 Forged Steel Check Valve Class 150 NRV Vertical Lift Integral Flange Ss304 0

Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy



DESIGN FEATURES

Api 602 2" DN50 Forged Steel Check Valve Class 150 NRV Vertical Lift Integral Flange Ss304 0

SW, NPT, RF or BW

Outside Screw & Yoke (OS&Y)

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet



DESIGN STANDARD

Api 602 2" DN50 Forged Steel Check Valve Class 150 NRV Vertical Lift Integral Flange Ss304 0

Design & manufacture according to API 602, BS5352,ASME B16.34

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624


Api 602 2" DN50 Forged Steel Check Valve Class 150 NRV Vertical Lift Integral Flange Ss304 5
Api 602 2" DN50 Forged Steel Check Valve Class 150 NRV Vertical Lift Integral Flange Ss304 6
                                                                                       Api 602 2" DN50 Forged Steel Check Valve Class 150 NRV Vertical Lift Integral Flange Ss304 7

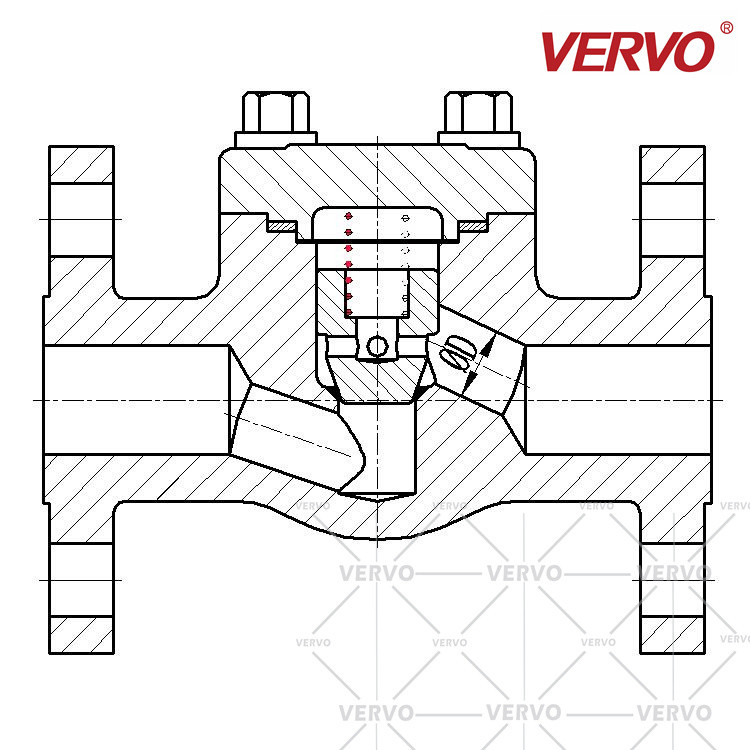

DIMENSIONS AND WEIGHTS (Check Valve - Piston Type )

CL800 CL900~CL1500 Bolt Cover (BC)/ Welding Cover (WC)
Full Port (FP)
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) F.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL800 L 100 100 120 140 140 172
CL900
CL1500
100 120 140 140 172 220
Height H 70 70 70 100 110 120
Flow Port Diameter d 13.5 17 22 28 34 44
Weight (Kg) CL800 B.B 2.2 2.2 2.2 4.2 9 9
W.B 2.1 2.1 2.1 4 8.8 8.8
CL900 CL1500 B.B 4.2 9 9 10 18.6 20
W.B 4 8.8 8.8 9.7 18.2 19.5
                                                                     Api 602 2" DN50 Forged Steel Check Valve Class 150 NRV Vertical Lift Integral Flange Ss304 8
CL150~CL600 Bolt Cover (BC)/ Welding Cover (WC)
Reduce Port (RP),
Flanged (RF/RTJ)
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL150 L (RF) 108 117 127 140 165 203
CL300 152 178 203 216 229 267
CL600 165 190 216 229 241 292
Height H 55 55 65 80 85 105
Flow Port Diameter d 10.5 13.5 17 22 28 34
Weight
(Kg)
CL150 B.B 3.5 3.5 4.7 8.5 11.5 13
CL300 3.5 3.5 5.6 8.6 12 14
CL600 3.5 3.5 6.5 10.5 16 22
                                                                      Api 602 2" DN50 Forged Steel Check Valve Class 150 NRV Vertical Lift Integral Flange Ss304 8
CL900 CL1500 Bolt Cover (BC)/ Welding Cover (WC)
Reduce Port (RP),
Flanged (RF/RTJ)
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL900 CL1500 L (RF) 216 229 254 279 305 368
Height H 55 55 65 80 85 105
Flow Port Diameter d 10.5 13.5 17 22 28 34
Weight (Kg) CL150 CL300 B.B 4.5 5.8 8.7 14.5 22 32
The dimension and weights are for reference only and subject to change without notice.
1. For more size or dimensional information, please contact our sales representative.


FAQ

Api 602 2" DN50 Forged Steel Check Valve Class 150 NRV Vertical Lift Integral Flange Ss304 10

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock
