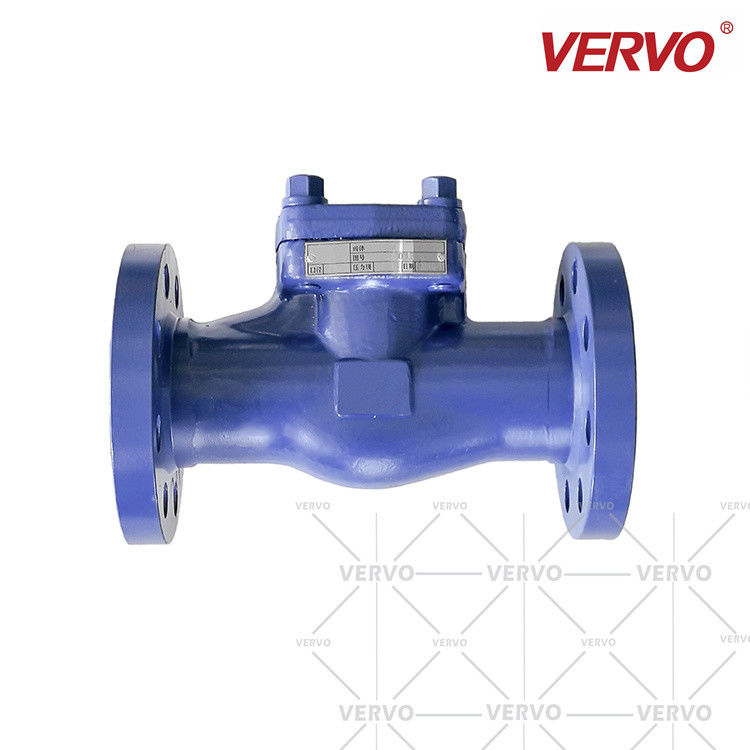

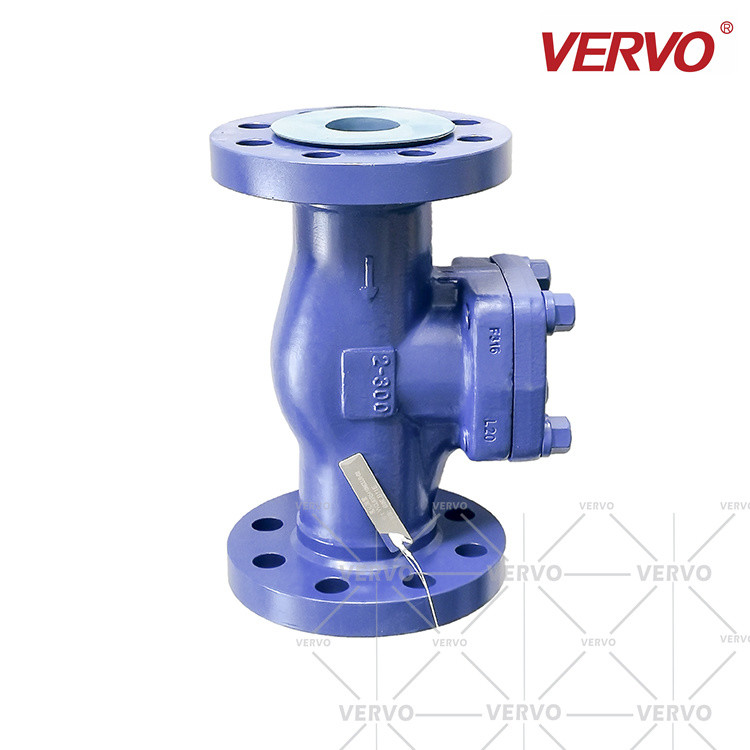

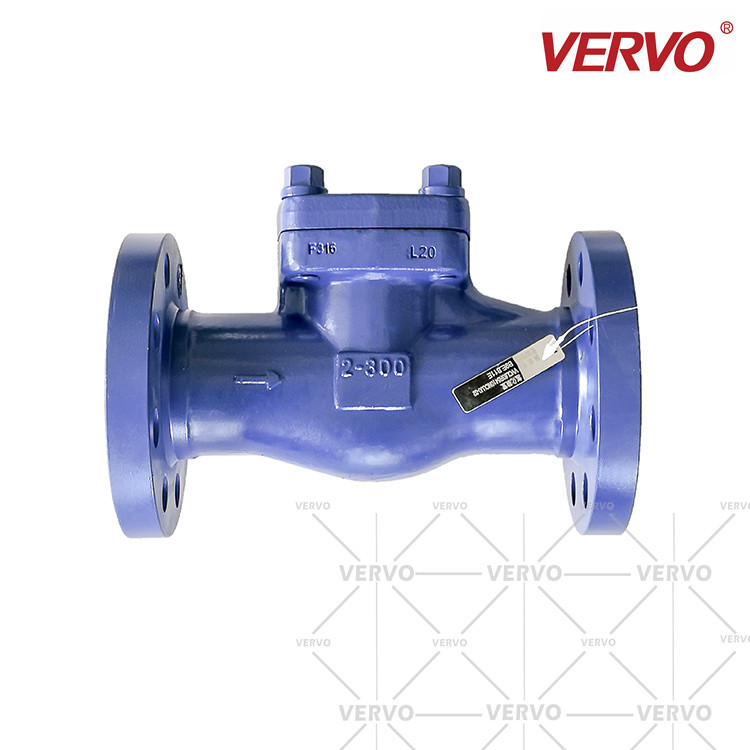

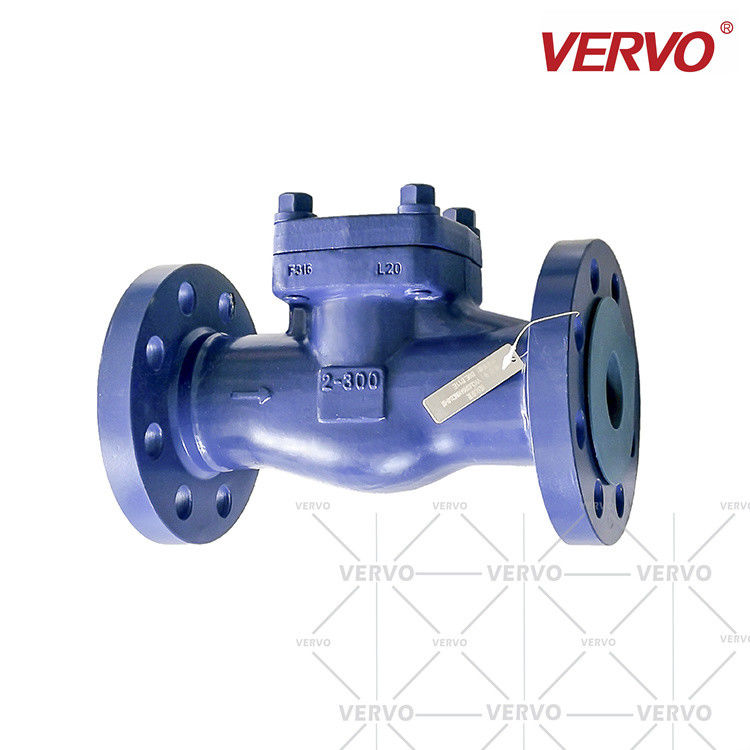

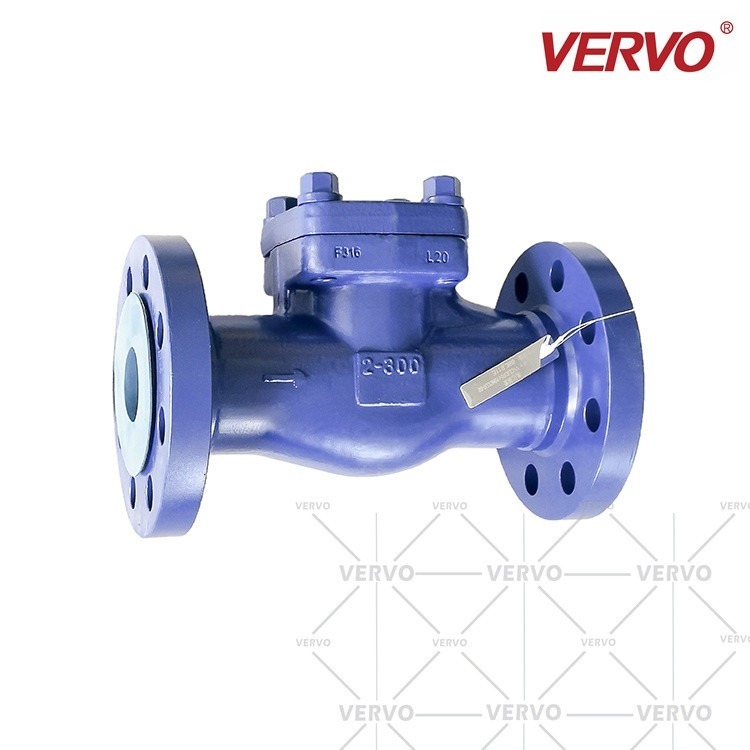

2 Inch Cryogenic Swing Check Valve BB Rf Forged Steel F316 Dn50 300lb

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: H41W-300LB-DN50
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API602 BS5352 Body Material:: A182 F316
Nominal Diameter: 2INCH DN50 Pressure: 300LB
End Connection.: RF FLANGE Face To Face: ASME B16.10
Test And Inspection: API 598
High Light:

2 Inch Cryogenic Swing Check Valve BB

,

Cryogenic Swing Check Valve BB Rf

,

dn50 swing check valve

Cryogenic Swing Check Valve Forged Steel F316 2 Inch Dn50 300lb Rf BB Forged Steel Check Valve Forged Steel Valves

Forged Steel Swing Check Valve Class 300LB
2 Inch Cryogenic Swing Check Valve BB Rf Forged Steel F316 Dn50 300lb 0

VERVO Class 300 Forged Steel Swing Check Valve features a Forged Steel A105N body with bolted bonnet and is suitable for a range of applications and media including steam, air, gas and liquids such as thermal oil and water.

Conforming to API 602 and ASME B16.34, this economical and reliable swing check valve offers excellent sealing capabilities in horizontal or vertical postion.



Typical Applications:

2 Inch Cryogenic Swing Check Valve BB Rf Forged Steel F316 Dn50 300lb 0

  • Process Lines
  • Condensate Lines
  • Hot and Cold Water Systems
  • Thermal Oil Systems

Typical Industries:

2 Inch Cryogenic Swing Check Valve BB Rf Forged Steel F316 Dn50 300lb 0

  • Boiler Plants
  • Laundries
  • Steam Plants
  • Process Plants

Key Features:

2 Inch Cryogenic Swing Check Valve BB Rf Forged Steel F316 Dn50 300lb 0

  • Bolted bonnet
  • Forged Steel body
  • ASME Class 300
  • Socket Weld, BSPT or NPT or Flange
  • Sizes 1/2" to 4"
  • Temperature: -196°C to 300°C

              2 Inch Cryogenic Swing Check Valve BB Rf Forged Steel F316 Dn50 300lb 4

2 Inch Cryogenic Swing Check Valve BB Rf Forged Steel F316 Dn50 300lb 5

DIMENSIONS AND WEIGHTS (Check Valve )

                              2 Inch Cryogenic Swing Check Valve BB Rf Forged Steel F316 Dn50 300lb 6

CL800 CL900~CL1500 Bolt Cover (BC)/ Welding Cover (WC)
Full Port (FP)
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) F.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL800 L 100 100 120 140 140 172
CL900
CL1500
100 120 140 140 172 220
Height H 70 70 70 100 110 120
Flow Port Diameter d 13.5 17 22 28 34 44
Weight (Kg) CL800 B.B 2.2 2.2 2.2 4.2 9 9
W.B 2.1 2.1 2.1 4 8.8 8.8
CL900 CL1500 B.B 4.2 9 9 10 18.6 20
W.B 4 8.8 8.8 9.7 18.2 19.5
2 Inch Cryogenic Swing Check Valve BB Rf Forged Steel F316 Dn50 300lb 7
CL150~CL600 Bolt Cover (BC)/ Welding Cover (WC)
Reduce Port (RP),
Flanged (RF/RTJ)
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL150 L (RF) 108 117 127 140 165 203
CL300   152 178 203 216 229 267
CL600   165 190 216 229 241 292
Height   H 55 55 65 80 85 105
Flow Port Diameter   d 10.5 13.5 17 22 28 34
Weight
(Kg)
CL150 B.B 3.5 3.5 4.7 8.5 11.5 13
CL300 3.5 3.5 5.6 8.6 12 14
CL600 3.5 3.5 6.5 10.5 16 22
2 Inch Cryogenic Swing Check Valve BB Rf Forged Steel F316 Dn50 300lb 8
CL900 CL1500 Bolt Cover (BC)/ Welding Cover (WC)
Reduce Port (RP),
Flanged (RF/RTJ)
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL900 CL1500 L (RF) 216 229 254 279 305 368
Height H 55 55 65 80 85 105
Flow Port Diameter d 10.5 13.5 17 22 28 34
Weight (Kg) CL150 CL300 B.B 4.5 5.8 8.7 14.5 22 32

1.The dimension and weights are for reference only and subject to change without notice.

2.The flanged valve are defaulted by integral flange.

3.For more size or dimensional information, please contact our sales representative.
