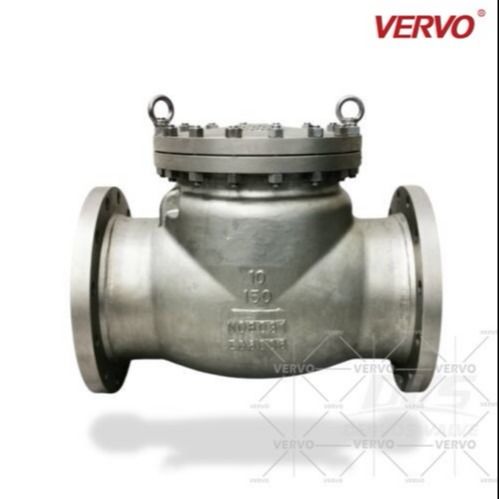

10" BS 1868 Cast Steel Swing Check Valve DN250 UNS N08031 Alloy Bolted Cover

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: H41Y-150LB-10INCH
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API6D/BS1868 Body Material:: UNS N08031 Alloy
Nominal Diameter: 10INCH/DN250 Pressure: 150LB(PN20)
End Connection.: RF FLANGE Face To Face: ASME B16.10
Test And Inspection: API 598
High Light:

Cast Steel Swing Check Valve DN250

,

bs 1868 swing check valve

,

uns check valve

DN250 Swing Check Valve BS1868 API6D 150Lb UNS N08031 Alloy Bolted Cover 10 Casting Steel Swing Check Valve Non Return

Item 10Inch Swing Check Valve
Certification ISO9001,ISO14001,ISO18001,TS,CE,API
Brand VERVO
Model number H41Y-150LB-DN250
Port Size 10INCH/DN250
Structure type Swing Check Valve
Pressure 150LB
Temperature -29~429Degree
Connection form Raise Flanged
Material Alloy Steel UNS N08031
Feature Easy disassembly


SWING CHECK VALVE
10" BS 1868 Cast Steel Swing Check Valve DN250 UNS N08031 Alloy Bolted Cover 0
VERVO swing check valves are offered in bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO swing check valves are manufactured according to API 6D, BS 1868 Design.

PRODUCT RANGE
10" BS 1868 Cast Steel Swing Check Valve DN250 UNS N08031 Alloy Bolted Cover 0

Sizes NPS 2 to NPS 36
Class 150 to Class 2500

MATERIALS
10" BS 1868 Cast Steel Swing Check Valve DN250 UNS N08031 Alloy Bolted Cover 0
Available in Casting (A216 WCB, WC6, WC9, A350 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy

DESIGN FEATURES
10" BS 1868 Cast Steel Swing Check Valve DN250 UNS N08031 Alloy Bolted Cover 0
Full or Reduced Bore
RF, RTJ, or BW
Bolted Cover or Pressure Seal Cover

DESIGN STANDARD
10" BS 1868 Cast Steel Swing Check Valve DN250 UNS N08031 Alloy Bolted Cover 0
Design & manufacture according to API 6D, BS 1868
Face-to-face according to ASME B16.10
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103

                                       10" BS 1868 Cast Steel Swing Check Valve DN250 UNS N08031 Alloy Bolted Cover 5

                    10" BS 1868 Cast Steel Swing Check Valve DN250 UNS N08031 Alloy Bolted Cover 6 10" BS 1868 Cast Steel Swing Check Valve DN250 UNS N08031 Alloy Bolted Cover 7




Size

in/mm



D

L



H

Weight (lb/kg)
RF RTJ BW RF/RTJ

2

50

2

51

8

203

8.5

216

8

203

5.5

140

37

17

2 ½

65

2 ½

64

8.5

216

9

229

8.5

216

6.3

160

44

20

3

80

3

80

9.5

241

10

254

9.5

241

7.1

180

53

24

4

100

4

102

11.5

292

12

305

11.5

292

8.27

210

84

38

6

150

6

152

14

356

14.5

368

14

356

11.42

290

198

90

8

200

8

203

19.5

495

20

508

19.5

495

14.17

360

286

130

10

250

10

252

24.5

622

25

635

24.5

622

15.75

400

430

195

12

300

12

305

27.48

698

28

711

27.48

698

18.11

460

661

300

14

350

14

337

31

787

31.5

800

31

787

20.47

520

804

365

16

400

15.24

387

34

864

34.5

876

34

864

24.41

620

1178

535

18

450

17.24

438

38.5

978

39

991

38.5

978

27.17

690

1652

750

20

500

19.25

489

38.5

978

39

991

38.5

978

28.35

720

1949

885

24

600

23.22

590

51

1295

51.5

1308

51

1295

29.13

740

2533

1150

28

700

27.24

692

57

1448

-

57

1448

33.46

850

3822

1735

30

750

29.25

743

60

1524

-

60

1524

39.37

1000

4515

2050

36

900

35.23

895

77

1956

-

77

1956

44.88

1140

4626

2100

The dimension and weights are for reference only and subject to change without notice.
1. For more size or dimensional information, please contact our sales representative.
