| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | H41Y-600LB-DN50 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | BS1868/API6D | Body Material:: | A216 WCB |
|---|---|---|---|
| Nominal Diameter: | DN50 50MM 2INCH | Pressure: | 600LB |
| End Connection.: | RF FLANGE | Face To Face: | ASME B16.10 |
| Test And Inspection: | API 598 | ||
| High Light: | Non Return Swing Check Valve Stainless Steel Ss316,2 Inch Non Return Swing Check Valve Dn50,swing check type non-return valve |
||

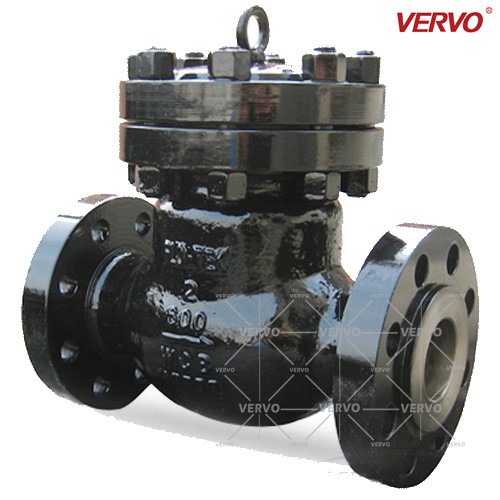

Swing Check Valve Stainless Steel 2 Inch Dn50 600lb Rf Flanged Wcb Bolted Bonnet Full Bore Oil Check Valve Non Return
VERVO VALVE manufactures a premium array of check valves. Our products are manufactured and tested in accordance with respective API, ASME, and ANSI standards.
VERVO VALVE is a global leader in valve manufacturing for power, paper and pulp, oil and gas, and petro-chemical industries. VERVO check valves have serviced critical backflow prevention applications for more than 40 years. From pipelines to chemical processing, VERVO offers a complete line of full port swing checks in a variety of materials making them appropriate for many environments, temperatures and pressures, that will accommodate your most stringent needs. Our check valve product line has positioned VERVO as a go-to source for all of your backflow prevention needs. The Full Port Swing Checks can be installed in horizontal or vertical, upward flow pipelines.
VERVO utilizes a replaceable seat design for simple field service and replacement. Seat materials are selected based on valve application, media, temperature, pressure and other conditions. Standard seat materials are ASTM A105 in carbon steel designs and A352 LCC in stainless steel designs.
| ASME CLASS 600 (PN 100) | ||||||
| Size in/mm |
D | L | H | Weight (lb/kg) | ||
| RF | RTJ | BW | RF/RTJ | |||
| 2 50 |
2 51 |
11.5 292 |
11.61 295 |
11.5 292 |
6.7 170 |
57 26 |
| 2 ½ 65 |
2 ½ 64 |
13 330 |
13.11 333 |
13 330 |
7.4 188 |
70 32 |
| 3 80 |
3 80 |
14 356 |
14.13 359 |
14 356 |
9.37 238 |
108 49 |
| 4 100 |
4 102 |
17 432 |
17.13 435 |
17 432 |
11.42 290 |
189 86 |
| 6 150 |
6 152 |
22 559 |
22.13 562 |
22 559 |
14 355 |
555 252 |
| 8 200 |
7.87 200 |
26 660 |
26.10 663 |
26 660 |
16.34 415 |
945 429 |
| 10 250 |
9.76 248 |
31 787 |
31.1 790 |
31 787 |
18.82 478 |
1227 557 |
| 12 300 |
11.77 299 |
33 838 |
33.11 841 |
33 838 |
21.26 540 |
1467 670 |
| 14 350 |
12.87 327 |
35 889 |
35.12 892 |
35 889 |
22.83 580 |
2079 944 |
| 16 400 |
14.76 375 |
39 991 |
39.13 994 |
39 991 |
26.38 670 |
2863 1300 |
| 18 450 |
16.5 419 |
43 1092 |
43.11 1095 |
43 1092 |
30.94 786 |
3877 1760 |
| 20 500 |
18.27 464 |
47 1194 |
47.24 1200 |
47 1194 |
33.27 845 |
4846 2200 |
| 24 600 |
22 559 |
55 1397 |
55.39 1407 |
55 1397 |
37 940 |
6308 2864 |
| 28 700 |
25.51 648 |
63 1600 |
63.5 1613 |
63 1600 |
41.34 1050 |
7048 3200 |
| 32 800 |
29 737 |
70 1778 |
70.63 1794 |
70 1778 |
45.67 1160 |
8238 3740 |
| 36 900 |
32.64 829 |
82 2083 |
82.64 2099 |
82 2083 |
50 1270 |
9912 4500 |
| The dimension and weights are for reference only and subject to change without notice. | ||||||
| 1. For more size or dimensional information, please contact our sales representative. | ||||||
